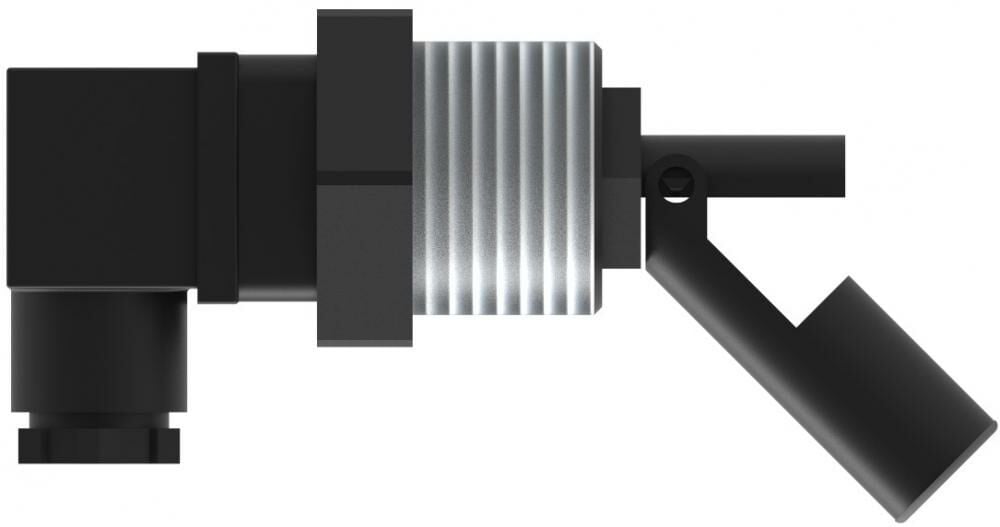

Plastic Level Switch (ELP Series)
The ELP Series Plastic Level Switches, offered by ORFA Industrial Products Industry and Trade Inc., are designed to provide the highest reliability in tank level control. Their small size and lightweight design make them a popular choice among machine manufacturers, making them ideal for use in environments exposed to aggressive fluids. Their affordability and ease of installation make the ELP Series an indispensable component in industrial level control systems.
Working Principle
ELP Series Plastic Level Switches operate on the principle of a magnetic field. The float inside the switch moves with the magnet, interacting with the reed sensor inside the tube. When the float reaches the sensor, the magnetic field opens or closes the electrical circuit. When the float moves away, the sensor returns to its original position. This allows for easy level data evaluation via a relay circuit, enabling automatic control and monitoring of the system.
Product Features and Technical Details
Material: The float and wet parts are designed entirely from PP (Polypropylene) material, which increases the chemical resistance of the product.
Float Type: P10 type float is used, which provides light and responsive level control.
Working Temperature: It can be used safely at temperatures between -20°C and +80°C.
Mechanical Connection: R1 threaded connection provides fast and leak-proof installation.
Maximum Pressure: Pressure resistance up to 4 bar is available, offering a wide range of applications.
Minimum Density: Works effectively even in liquids with a density of 0.75 g/cm³.
Electrical Connection: DIN43650C socket connection is provided in accordance with type P03.
Number of Floats: Comes with 1 float as standard.
Contact Type: 1 x SPST - Equipped with NO contact type.
Contact Current: It has a maximum current carrying capacity of 1A.
Maximum Contact Power: Resistant to power up to 10 W/VA.
Maximum Supply Voltage: Provides safe operation at 200 VDC / 140 VAC supply voltage.
Installation Method: Side-mounted mini-float design provides a compact and space-saving solution.
Areas of Use
ELP Series Plastic Level Switches have a wide range of applications. They are used in machine manufacturing, storage tanks, boilers, level control of gases and liquids, surface measurements, and ambient temperature measurement. Their durable construction and reliable performance ensure optimal level control in a variety of industrial processes.
With the assurance of ORFA Industrial Products Industry and Trade Inc. , ELP Series Plastic Level Switches make your business processes more efficient by providing superior performance even in the most difficult industrial conditions.
| Tooth Measurement | : | 1'' |
