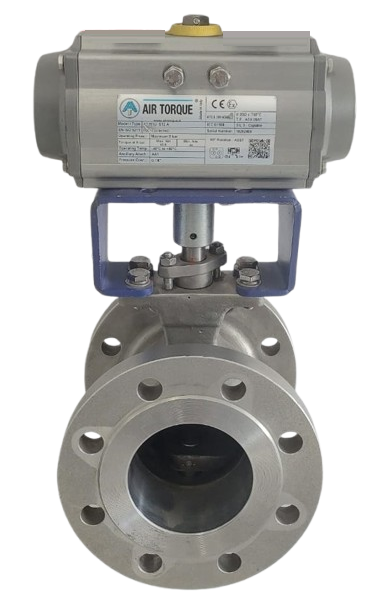

Pneumatic Proportional Control Valve Segment Ball Valve PN16 DN100
%50 Discounted Product
0 - Comment / Read Comments
6.000,00 EUR
3.000,00 EUR
Brand
Stock Code
09618
Warranty Period
24 Month
Price
5.000,00 EUR + VAT
* Installments starting from 566,80 EUR!
Add to Cart
Pneumatic Proportional Control Valve Segment Ball Valve PN16 DN100 High Precision, Strong and Durable Flow Control Solution
The Segment Ball Valve is a high-tech control valve specifically designed for applications requiring high precision flow control. Its DN100 nominal diameter and PN16 pressure class offer safe use in a wide range of industrial lines. Unlike standard ball valves, the segment ball valve body, thanks to its sectioned "V-port" segment design, controls flow gradually and precisely. This structure is ideal for processes requiring proportional (modulating) control and minimizes the risk of clogging, even in particulate or viscous fluids. AISI 316 stainless steel offers high corrosion resistance, ensuring safe use even in acidic, chloride-containing, or aggressive chemical environments. It is also suitable for hygienic applications. The pneumatic actuator operates with compressed air, offers a fast response time, and is safe for explosion-proof environments. The positioner converts analog signals (4-20 mA or 0-10 V DC) into pneumatic movement, allowing precise adjustment of the segment. The feedback feature ensures that the valve remains in the exact desired position.
Technical Specifications:
The Segment Ball Valve is a high-tech control valve specifically designed for applications requiring high precision flow control. Its DN100 nominal diameter and PN16 pressure class offer safe use in a wide range of industrial lines. Unlike standard ball valves, the segment ball valve body, thanks to its sectioned "V-port" segment design, controls flow gradually and precisely. This structure is ideal for processes requiring proportional (modulating) control and minimizes the risk of clogging, even in particulate or viscous fluids. AISI 316 stainless steel offers high corrosion resistance, ensuring safe use even in acidic, chloride-containing, or aggressive chemical environments. It is also suitable for hygienic applications. The pneumatic actuator operates with compressed air, offers a fast response time, and is safe for explosion-proof environments. The positioner converts analog signals (4-20 mA or 0-10 V DC) into pneumatic movement, allowing precise adjustment of the segment. The feedback feature ensures that the valve remains in the exact desired position.
Technical Specifications:
Nominal Diameter: DN100
Pressure Class: PN16
Body Material: AISI 316 Stainless Steel
Segment Sphere: V-port section, AISI 316
Shaft Material: AISI 316
Connection: Flanged
Operating Temperature: Wide temperature range (depending on application)
Actuator Type: Double Acting Pneumatic Actuator
Positioner: Control with electrical signal (4-20 mA or 0-10V DC), feedback feature
Areas of Use:
Areas of Use:
Chemical and petrochemical plants
Food and beverage production lines
Pharmaceutical and biotechnology processes
Water treatment and distribution systems
Power plants
Paper and pulp industry
The Pneumatic Proportional Control Valve, Segmented Ball Valve PN16 DN100 , offers precise modulating control, high corrosion resistance, and fast response with ORFA Industrial assurance. It is a reliable and long-lasting solution for process control.
The Pneumatic Proportional Control Valve, Segmented Ball Valve PN16 DN100 , offers precise modulating control, high corrosion resistance, and fast response with ORFA Industrial assurance. It is a reliable and long-lasting solution for process control.
| Diameter-Dn | : | DN 100 |
| Pressure Class | : | PN 16 |
