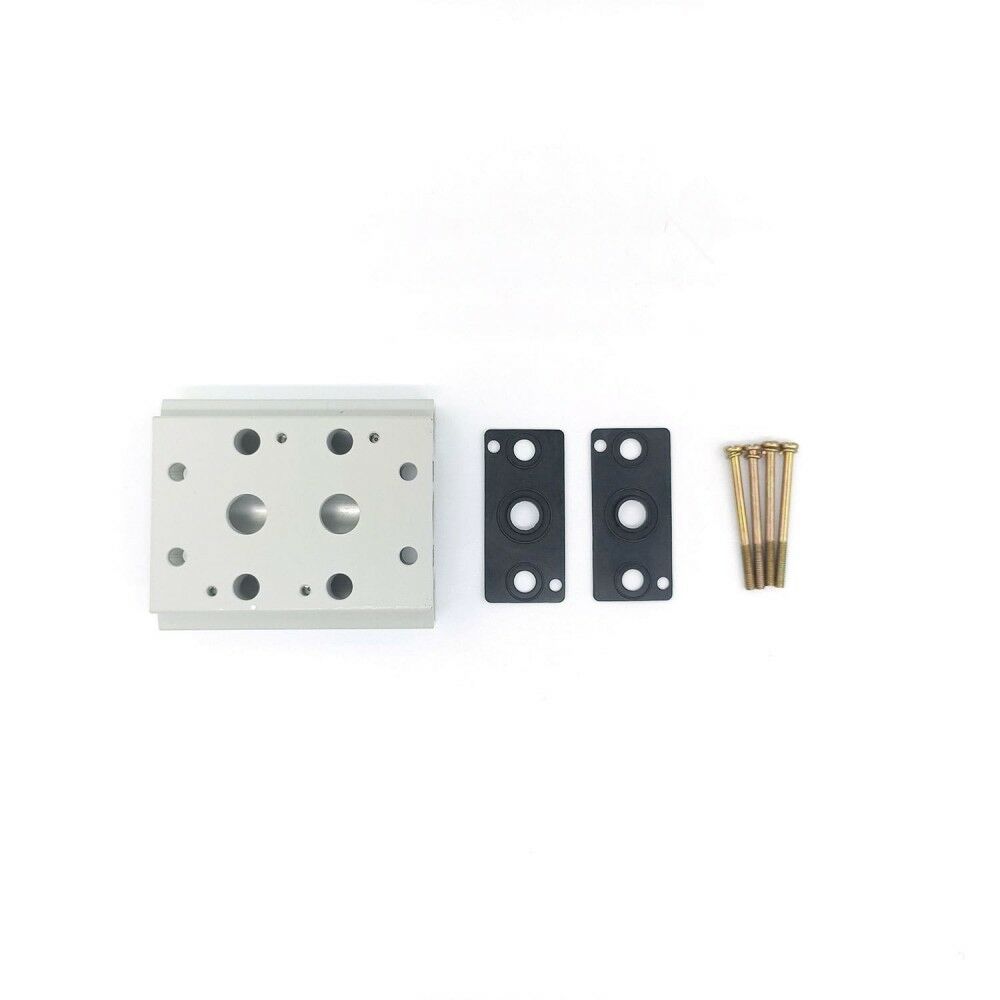

Pnömatik Valf Pleyti 2'lı 1/4''

Pneumatic Valve Plate 2 (2-Valve Distribution Block): Compact and Central Control

In pneumatic automation systems, connecting multiple pneumatic valves (such as solenoid valves) in an organized and centralized manner is critical for both ease of installation and elimination of cable/hose clutter. The 2-way pneumatic valve plate is a compact and efficient distribution system designed to meet this need, combining two valves into a single unit .

What is a Pneumatic Valve Plate and What Does It Do?

A valve plate (or valve distribution block, manifold) is a block on which multiple pneumatic valves are mounted. This block centralizes air inlets/outlets and electrical connections. This allows air from a single inlet port to be distributed to all valves through channels on the plate, rather than making separate connections for each valve.

The word "2" indicates that up to 2 valves can be mounted on this plate. The word "1/4" indicates that the plate has a 1/4" diameter threaded connection for the main air supply.

Key Features and Advantages of the 2-Way Pneumatic Valve Plate:

• Central Air Distribution: Provides regular and equal air distribution from a single air supply line to the two valves on it.

• Compact Design: By combining 2 valves into a single unit, it saves significant space in pneumatic panels and automation systems.

• Easy Installation: Valves can be easily mounted and removed from the plate, simplifying installation and maintenance. The valve plate is typically secured to the panel or machine using bolts.

• Reduced Hose and Wire Clutter: Eliminates the need to run separate air inlet lines for each valve. This results in a more organized and clear pneumatic circuit setup.

• Wide Application Area: Provides the opportunity to control up to 2 pneumatic cylinders or equipment independently in automation systems.

• Durable Construction: The body is made of durable aluminum die-casting material. This ensures long-lasting and reliable performance.

• Standard Compatibility: 1/4'' threaded connection is compatible with most standard pneumatic systems.

Areas of Use:

• Industrial Automation Panels: Central control of pneumatic valves in production lines and machines.

• Robotic Systems: Guidance of pneumatic movement in robot arms.

• Packaging Machines: Holding and transporting products by means of pneumatic cylinders.

• Textile Machinery: Control systems using pneumatic valves together.

• All Types of Pneumatic Systems: Applications where up to 2 pneumatic valves must use the same air supply line.
