POTTER VSR Akış Anahtarı 2 1/2''
%60 Discounted Product
0 - Comment / Read Comments
294,00 USD
117,60 USD
Category
Stock Code
708261240073
Warranty Period
24 Month
Price
245,00 USD + VAT
* Installments starting from 117,60 USD!
Add to Cart
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.

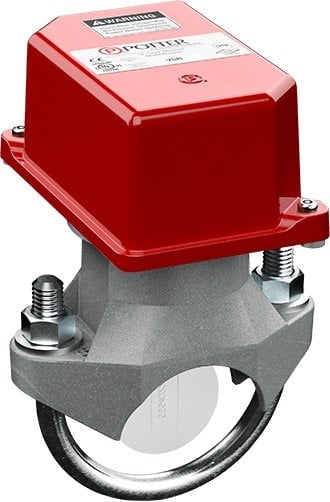

POTTER VSR Flow Switch - Flow Switch 2 1/2'' – Superior Security and Precision
ORFA POTTER VSR Flow Switch - Flow Switch 2 1/2'', sold by Endüstri Mamüller Sanayi ve Ticaret A.Ş , offers high-performance solutions in the field of fire safety. Designed for use in wet pipe sprinkler systems, this model provides a reliable fire alarm mechanism by detecting water flow quickly and accurately.
Uninterrupted Performance and Precision
POTTER VSR is a blade type water flow switch with two SPDT (Form C) contacts. The instantly activated pneumatic delay system minimizes false alarms and can be customized according to system needs with the time delay feature that can be changed between 0-90 seconds. Switches that activate when detecting water flow at 10 GPM (38 LPM) and above become one of the most critical parts of your fire detection system.
Stream Switch Highlights:
ABD manufactured high quality components
Adjustable time delay from 0-90 seconds
Easy adjustable time delay button
UL listed models: 2" - 6" steel tubes (schedule 5-40)
UL listed and FM approved models: 2" - 8" steel pipes (schedule 10-40)
Rugged waterproof housing (NEMA4/IP54)
Labeled terminals for easy connection
Certifications and Compliance
CE Documentation
LPCB Certificate
FM Approved
UL Listed
Flow Switch Specifications:
Model: VSR-2 1/
Nominal Pipe Diameter: 1/2"
Pipe Outside Diameter (O.D.): DN
Cable Inputs: Two inputs for 1/2” cable duct
Contact Capacities:
Amps at 125/250VAC
Amps at 30VDC (Resistive)
Minimum 10 mAmperes at 24VDC
Enclosure:
Cover: Composite material resistant to weather conditions, UV rays and flame
Base: Cast aluminum
Environmental Resistance:
Temperature range: -45°C - 49°C
Corrosion resistant factory sleeve
Flow Sensitivity:
-10 GPM (15-38 LPM) – UL
Maximum Impact Velocity: FPS (5.5 m/s)
Maximum Working Pressure: PSI (31 BAR) – UL
Flow Switch Usage Areas:
POTTER VSR-2 1/2 Flow Switch is a product with wide usage area in fire safety systems. It is designed for automatic fire sprinkler systems and provides full compliance with national and international fire safety standards. The main areas of use are:
✔ Automatic Sprinkler Systems (NFPA-13)
✔ Single Family Residences (NFPA-13D)
✔ Residential Areas Up to Four Floors (NFPA-13R)
✔ National Fire Alarm Code (NFPA-72)
POTTER VSR-2 1/2 Flow Switch offers uninterrupted protection and sensitive detection in fire sprinkler systems thanks to its advanced technology and durable structure. ORFA This superior flow switch, which you can obtain with industrial assurance, takes your fire safety systems to the next level. Get the best solution for fire safety!
