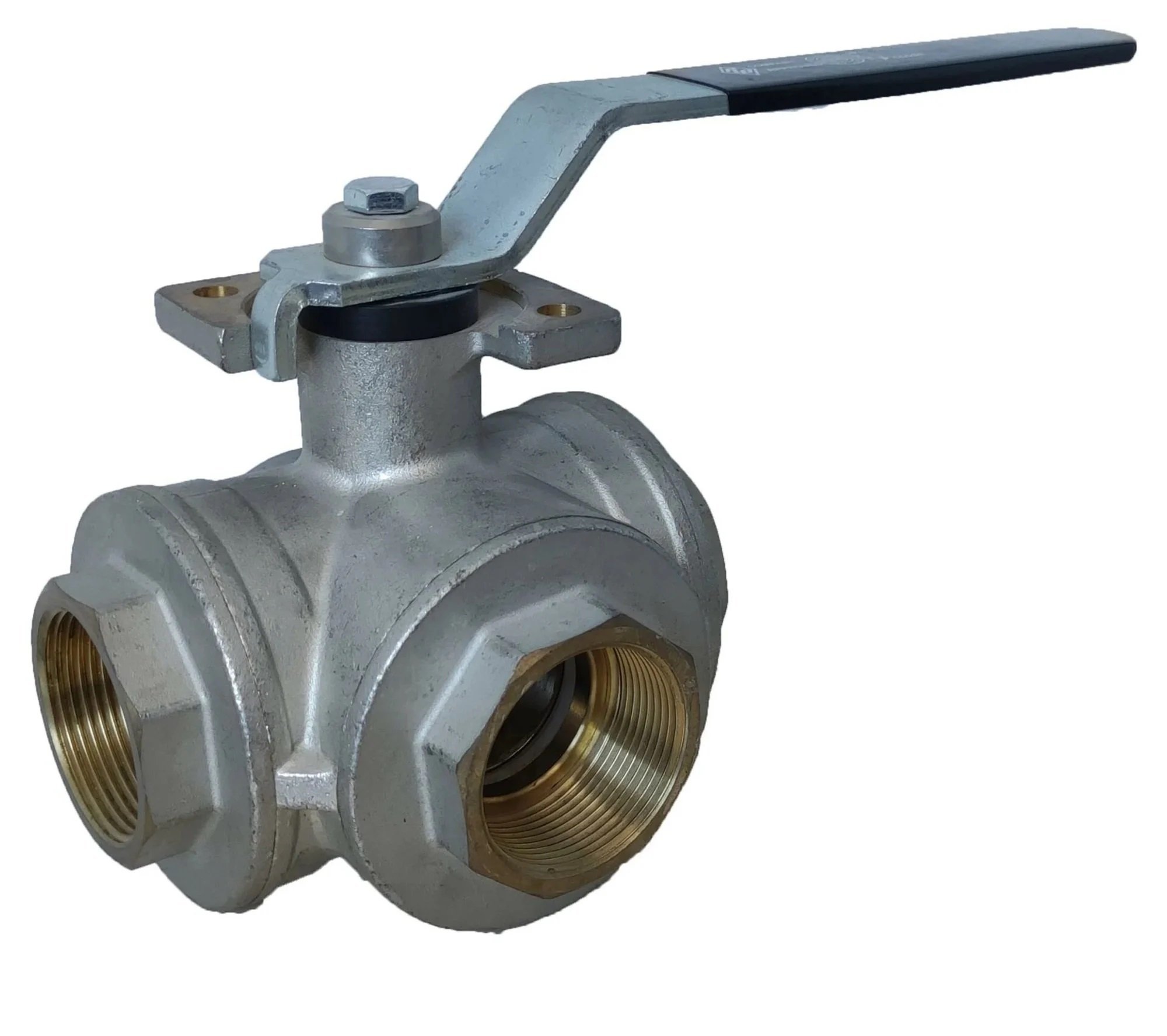

RB COMBI-SFER 3500 T Pirinç 3 Yollu Küresel Vana 2''
0 - Comment / Read Comments
Category
Stock Code
V350010
Warranty Period
24 Month
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.
RB COMBI-SFER 3500 T Pirinç 3-Way Ball Valve: Flow Direction and Mixing Solution in Your Installation
-way ball valves are used in plumbing systems to change the flow direction of the fluid (water, air, gas, etc.) or to mix fluids coming from different lines. RB COMBI-SFER 3500 T Pirinç 3 Way Ball Valve is a reliable and practical solution designed to meet the needs in this field, with a T-type flow path and a connection diameter of 2 inç.
Way Ball Valve Detail:
Brand: Rubinetterie Bresciane (@2@@)
Product Code: 0100
Size: ''
Flow Type: T-Type, Three-Way, Full Bore
Connection Type: Thread (F/F/F)
Body Material: Pirinç (BRASS CW617N)
Sealing Material: PTFE and FKM
Operating Temperature: -20°C to +160°C
Maximum Working Pressure: bar
Actuator Compatibility: ISO 5211 compatible connection pad
RB COMBI-SFER What is 3500 3-Way Ball Valve and What Does It Do?
-way ball valve has three connection points and directs the fluid flow by changing the position of the perforated sphere (ball) inside. "T-Type" The term (T-Port) indicates that the hole inside the sphere is T-shaped.
Working Principle of T-Type Valve: T-type ball valves can control the flow in three different ways depending on the position of the valve:
Flow Between All Ports: The ball's T-shaped hole allows flow between all ports in the middle position of the valve. This is ideal for mixing applications.
Flow Direction: When the T-shaped hole of the sphere is rotated, the fluid is directed from one inlet to two outlets.
Flow Shutoff: By positioning the T-shaped hole of the sphere perpendicular to the flow, the flow can be completely cut off.
RB COMBI-SFER 3500 3 Way Ball Valve Features and Advantages:
Durable Pirinç Material : 3 Way Ball Valve body is made of pirinç. This material offers excellent resistance to water, moisture and corrosion.
Wide Area of Application: It can be used safely in both hot and cold water installations, air, gas and low pressure lines.
Easy Installation: Can be easily integrated into the installation with standard 2 inç threaded connection.
Reliable Sealing: PTFE (Teflon) bearings and O-ring systems prevent water dripping and leakage problems in the closed position.
Quick On-Off: Flow can be controlled instantly with a quarter turn of the sphere.
Way Ball Valve Usage Areas:
Heating and Cooling Systems: Changing flow direction or mixing in systems such as boilers, boilers and heat exchangers.
Plumbing: Flow control in domestic and commercial water lines.
Industrial Processes: In any application where fluids need to be mixed or directed.
| Body | : | Brass |
| Tooth Measurement | : | 2'' |
