Rotary Steam Head Left Turn 1 1/4''
%15 Discounted Product
0 - Comment / Read Comments
316,18 EUR
268,75 EUR
Category
Stock Code
0127122014001680020000107
Warranty Period
24 Month
Price
263,48 EUR + VAT
* Installments starting from 268,75 EUR!
Add to Cart
Rotary Steam Head Left Rotary 1 1/4''
ORFA Rotary Steam Head Left Rotary 1 1/4'', sold by Endüstri Mamüller Sanayi ve Ticaret A.Ş , is a professional connection equipment that provides continuous and safe flow in steam and hot water lines and is resistant to high temperature and pressure. Thanks to its left-threaded connection structure, it meets special installation needs and offers long-lasting performance in industrial use.
Rotary Steam Head Left Rotary Working Principle
The rotary steam head allows the flow of steam or hot water through a rotating mechanism. Thanks to the special carbon bearings and gasket system inside, the sealing is maintained even under high pressure and temperature. Its left-hand rotation structure allows safe installation by adapting to the connection direction in the system. The rotating mechanism ensures smooth passage of the fluid by adapting to speeds up to 600 rpm.
Technical Specifications
Diameter: 1/4''
Connection Type: Left hand threaded connection
Operating Pressure: bar
Temperature Resistance: up to 230 °C
Speed: rpm
Material: Metal body resistant to high temperature and pressure, carbon bearing system

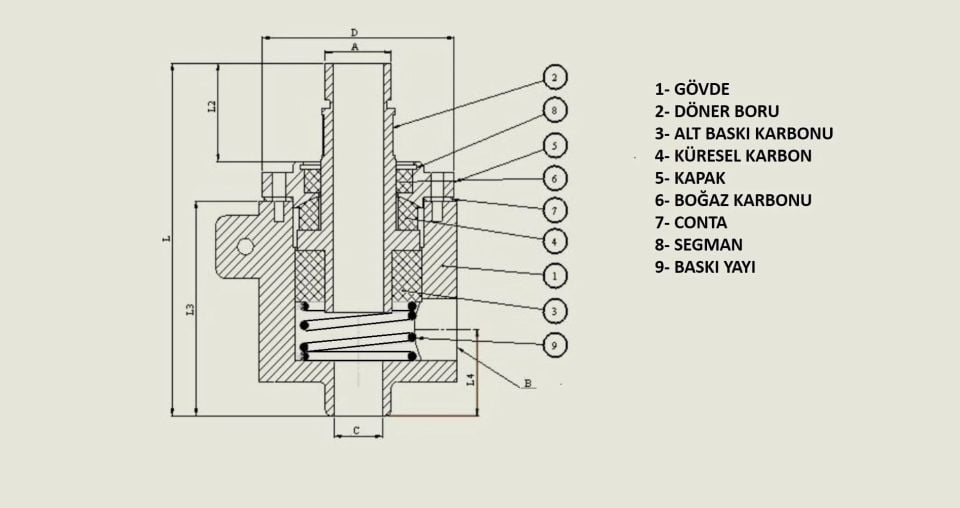

Part Structure:
Body
Rotary Pipe
Underprint Carbon
Global Carbon
Cover
Throat Carbon
Gasket
Circlip
Compression Spring
Rotary Steam Head Left Rotary Usage Areas
Steam and hot water installations
Boiler rooms and pressure vessel systems
Textile, chemical, food and energy industries
HVAC and automation systems
Industrial production lines requiring high temperature and pressure
Steam transfer in rotating equipment
Rotary Steam Head Left Rotating 1 1/4'' is a long-lasting and reliable solution in industrial installations with its structure resistant to 12 bar pressure and 230 °C temperature, 600 rpm support and special carbon bearing system. ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş . offers this product to its customers with stock advantage and reliable supply support.
