Pnömatik Aktüatörlü Paslanmaz Küresel Vana 3/4'' 304 Üç Parçalı
Add to Cart
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.

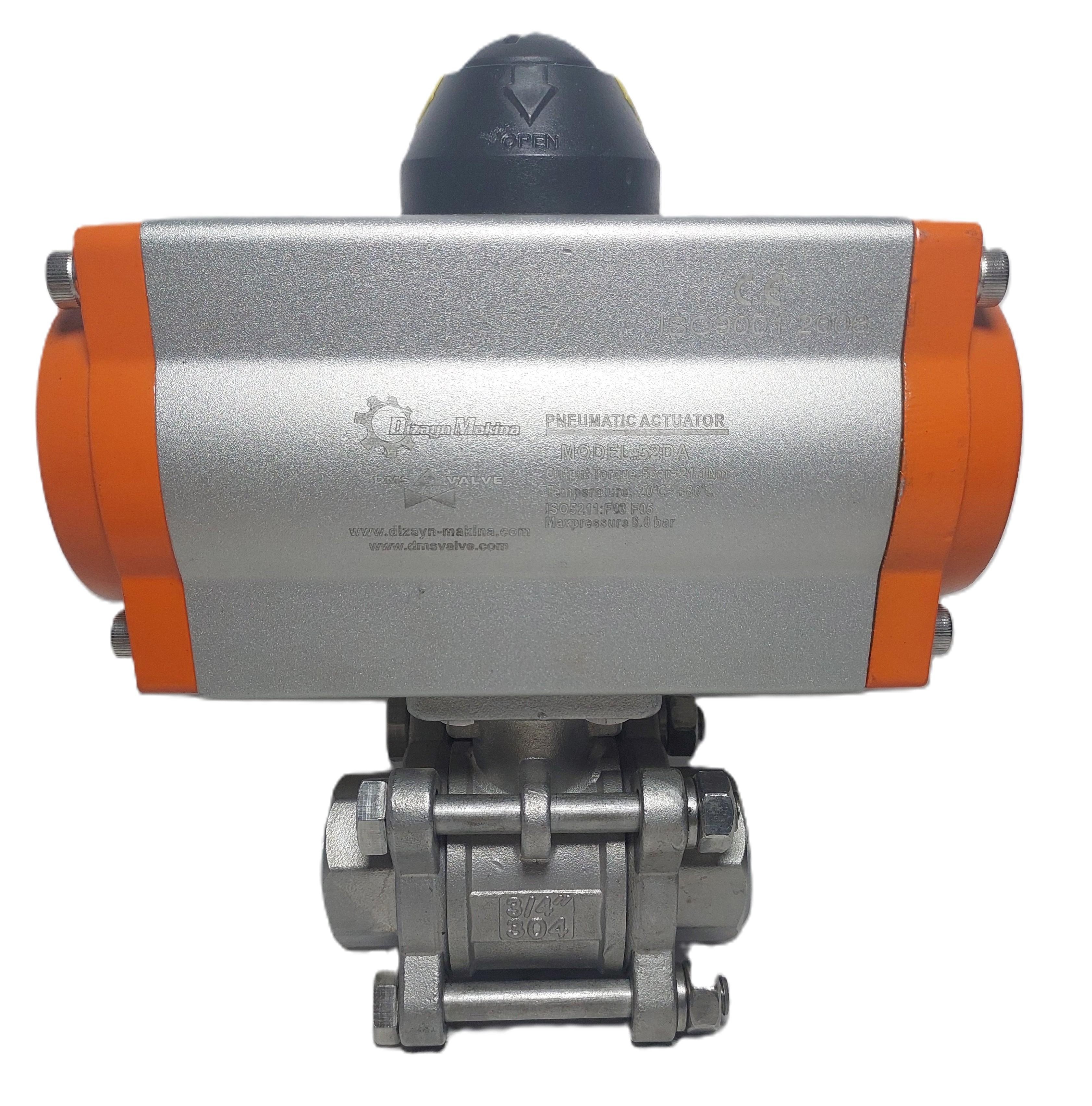

ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş. This product, offered with assurance, is formed by the combination of Actuator Pluggable Three-Piece Stainless Steel Ball Valve and DMS PAC 52DA double-acting pneumatic actuator. It offers high performance and reliability.
This combined Stainless Ball Valve with Actuator is ideal for you to automate flow control. The stainless steel ball valve (AISI304) in size 3/4" stands out with its resistance to corrosion and long life. Thanks to its three-piece structure, it can be easily disassembled, assembled and maintained. DMS PAC The 52DA double-acting pneumatic actuator provides the power needed to open and close the valve quickly and precisely.
Valve Features:
- Material: AISI 304 stainless steel (body and ball)
- Size: /4"
- Connection Type: Thread
- Pressure Value: Max. 60 bar
- Temperature Range: -25°C to 180°C
- Construction: Three-piece
- Test: Underwater 100% air test at bar
Actuator Features:
- Model: DMS PAC 52DA
- Type: Double acting pneumatic actuator
- Connection: ISO 5
- Operating Pressure: -8 bar
- Operating Temperature: -20°C to +80°C (standard type)
- Material: High strength hard anodized aluminum
Advantages of Stainless Ball Valve with Actuator:
- Automatic Control: Fluid control is provided automatically thanks to the pneumatic actuator.
- High Performance: Stainless Ball Valve with Actuator Fast and precise opening and closing operations are performed.
- Durability: Stainless Ball Valve with Actuator, has a long life thanks to the stainless steel valve and quality actuator.
- Easy Maintenance: Stainless Ball Valve with Actuator It offers easy maintenance thanks to its three-piece valve structure.
- Wide Area of Application: It can be used in many areas such as heating, cooling, food, chemistry, shipbuilding.
Stainless Ball Valve with Actuator Application Areas:
- Heating and cooling systems
- Food facilities
- Chemical industry
- Shipbuilding
- Paper mills
- Water and wastewater systems
| Body | : | Stainless |
| Tooth Measurement | : | 3/4'' |
