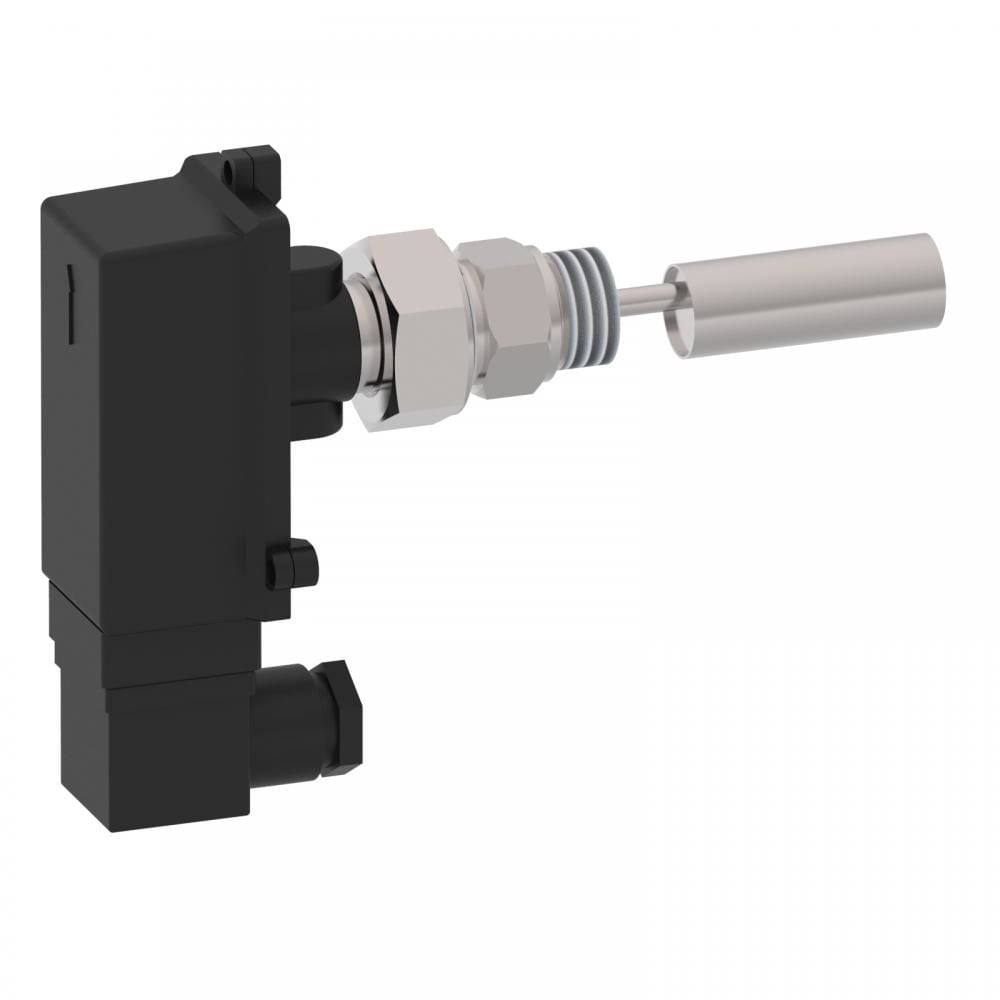

Stainless Level Switch ELM-81s
%28 Discounted Product
0 - Comment / Read Comments
174,00 EUR
125,28 EUR
Category
Brand
Stock Code
04146
Warranty Period
24 Month
Price
145,00 EUR + VAT
* Installments starting from 125,28 EUR!
Add to Cart
Stainless Level Switch (ELM Series)
The Stainless Steel Level Switch (ELM Series), offered by ORFA Industrial Products Industry and Trade Inc. , is a solution that provides high performance and reliability in tank level control. Its durable stainless steel construction ensures long-lasting use even in harsh industrial environments. Its compact design saves space, while its economical and practical installation makes it the preferred choice for machine manufacturers and system integrators.
ELM Series level switches increase process efficiency by providing precise level control in a variety of applications, including hydraulic oil tanks and small storage systems. Their stainless steel construction ensures excellent compatibility with a variety of fluids and provides a reliable solution.
Featured Features:
High Durability: All stainless steel body provides superior resistance to corrosion.
Compact Design: Thanks to its small dimensions, it can be easily installed even in narrow spaces.
Magnetic Working Principle: Provides precise and reliable level control thanks to magnetic float and reed sensor technology.
Easy Assembly and Fast Delivery: With its practical assembly structure, it saves time and offers fast delivery.
Economical Solution: Although it is a high-performance level switch, it offers a cost advantage with its affordable price.
Working Principle:
The basic operating principle of ELM Series level switches is based on the movement of a magnetic float. As the float rises and falls with the liquid level, the magnet inside the float opens or closes the electrical circuit when it reaches the reed sensor inside the tube. This mechanism detects level changes quickly and precisely. When the float moves away from the sensor, the circuit returns to its original position, and these signals can be evaluated through a relay circuit.
Technical Information:
Mounting Type: Horizontal
Float Material: 304 Stainless Steel
Wet Part Material: 304 Stainless Steel (Optional: 316 Stainless Steel)
Pipe Material: 304 Stainless Steel (Optional: 316 Stainless Steel)
Float Type: S3Y/P81
Working Temperature: (-) 20 / (+) 125°C
Mechanical Connection: R 1/2" - R 3/4"
Maximum Pressure: 5 Bar
Minimum Density: 0.75 gr/cm³
Electrical Connection: DIN43650A Socket
Number of Buoys: 1 (Standard)
Number of Contacts: 1x SPST-NA
Contact Current: 1 A
Max. Contact Power: 10 W / VA
Max. Supply Voltage: 200 VDC / 140 VAC
Optional Equipment: Liquid Level Relay SK-P2
Areas of Use:
The Stainless Steel Level Switch (ELM Series) is ideal for level control in industrial machinery, hydraulic oil tanks, small storage applications, and various industrial tank systems. Its high temperature and pressure resistance ensure safe use in a variety of processes. By maintaining the correct fluid level, it contributes to the safe and efficient operation of systems.
ORFA Industrial Products Industry and Trade Inc.'s Stainless Steel Level Switch increases operational efficiency by providing a reliable and long-lasting solution in industrial applications.
