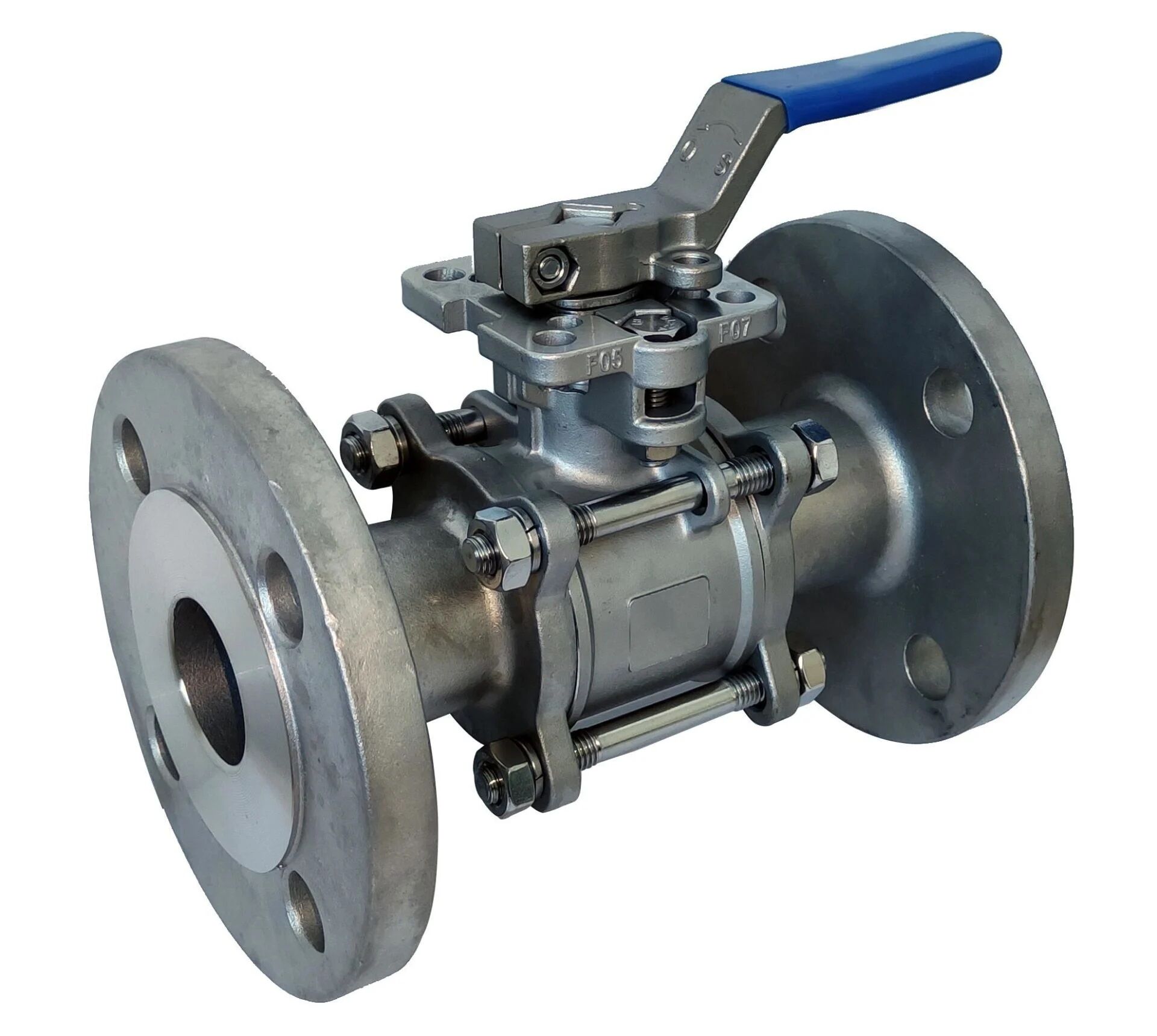

Paslanmaz Küresel Vana Dn25 Aktüatör Takılabilir Üç Parçalı AISI304

"Actuator Mountable Three-Piece Flanged Stainless Steel Ball Valve

Ball valves feature a structure characterized by a sphere that provides functionality. The 90° rotation of the sphere allows for a transition from fully open to fully closed. Therefore, ball valves are primarily preferred in applications requiring rapid opening and closing or multiple opening and closing cycles.

Ball valves offer a number of advantages, including low pressure loss, easy opening and closing, high sealing performance, and a lightweight and compact design.

Sealing is carried out in two stages between the ball and the shaft, thus ensuring an effective seal.

Three-piece flanged stainless steel ball valves with actuator mountable prove their resistance to 10 bar pressure under water by subjecting them to 100% air testing in open and closed positions.

The material composition is as follows:

-Body: AISI304 Stainless Steel

-Sphere: AISI304 Stainless Steel

Connection Type:

Flanged

Nominal Diameter:

DN15 (1/2") - DN100 (4")

Pressure Capacity:

Up to 40 bar maximum

Temperature Range:

It can be used from -25ºC to 180ºC depending on the material structure.

Application Areas:

-Heating and cooling systems

-Food processing facilities

-Chemical industry

-Shipbuilding

-Paper mills

-Hot and cold water lines

Assembly:

These valves can be easily installed in any position."
