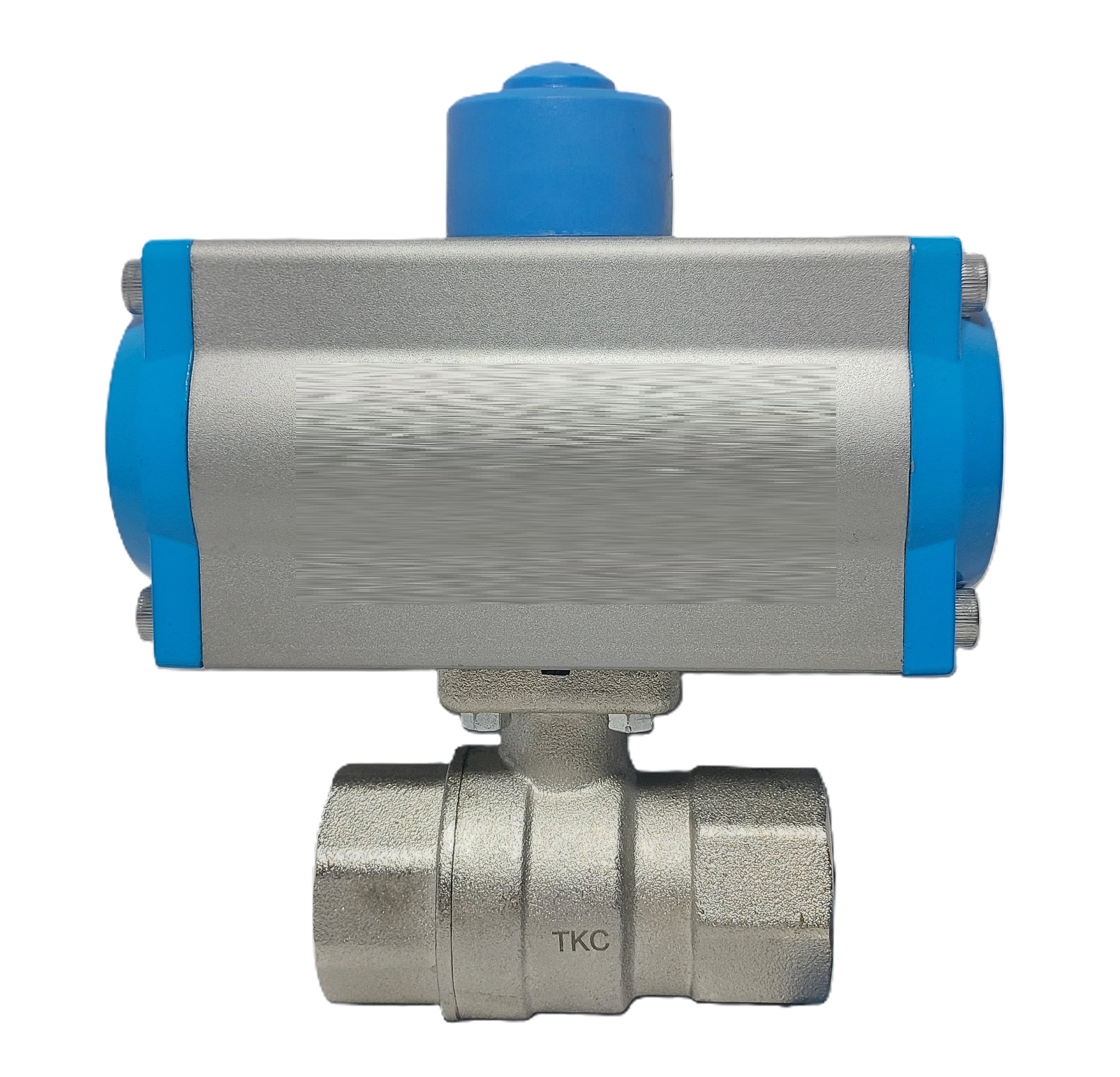

Stainless Ball Valve 3/4'' with Double Acting Pneumatic Actuator
%40 Discounted Product
0 - Comment / Read Comments
90,93 EUR
54,56 EUR
Category
Brand
Stock Code
1601030052130010020000105
Warranty Period
24 Month
Price
75,77 EUR + VAT
* Installments starting from 54,56 EUR!
Add to Cart
Stainless Ball Valve with Double Acting Pneumatic Actuator PN40 3/4"
Stainless ball valve with double acting pneumatic actuator has been developed to provide high durability and precise flow control in automatic control systems. AISI It has a corrosion-resistant structure with its 304 stainless steel body and sphere. It is in the PN40 pressure class and offers long-lasting performance in high temperature and pressure systems.Working Principle
The pneumatic actuator performs the opening-closing operation of the valve thanks to the double-action mechanism working with air pressure. Since it works by applying pressure in both directions, it provides a more controlled and safe flow management. Full bore flow control is possible with 90° rotation angle.
Technical Specifications
Technical Specifications
Valve Type: Double Acting Pneumatic Actuated Ball Valve
Diameter: /4"
Pressure Class: PN
Maximum Working Pressure: PN
Body Material: AISI 304 Stainless Steel Steel
Connection Type: Threaded (BSPP)
Maximum Operating Temperature: °C
Sealing Element: PTFE
Actuator Features Operating Type:
Double Acting
Double Acting
Working Pressure: – 8 bar
Steering Angle: °
Torque (at 6 bar): Nm
Ambient Temperature: -10°C / +80°C
Duty Type: On-Off control
Material: Aluminum body, stainless mil
Protection Class: IP
Areas of Use Process control systems
Water and air lines
Water and air lines
Food and chemical industry
Power plants
Automatic flow management systems
Stainless Ball Valve with Double Acting Pneumatic Actuator
Stainless Ball Valve with Double Acting Pneumatic Actuator
offers a reliable solution in industrial automation systems with its durable AISI304 body, high pressure resistance and sensitive pneumatic control feature.
Çift Etkili Pnömatik Aktüatörlü Paslanmaz Küresel Vana , dayanıklı AISI 304 gövdesi, yüksek basınç dayanımı ve hassas pnömatik kontrol özelliğiyle endüstriyel otomasyon sistemlerinde güvenilir bir çözüm sunar.
Çift Etkili Pnömatik Aktüatörlü Paslanmaz Küresel Vana , dayanıklı AISI 304 gövdesi, yüksek basınç dayanımı ve hassas pnömatik kontrol özelliğiyle endüstriyel otomasyon sistemlerinde güvenilir bir çözüm sunar.
| Tooth Measurement | : | 3/4'' |
| Body | : | Stainless |
| Pressure Class | : | PN 40 |
