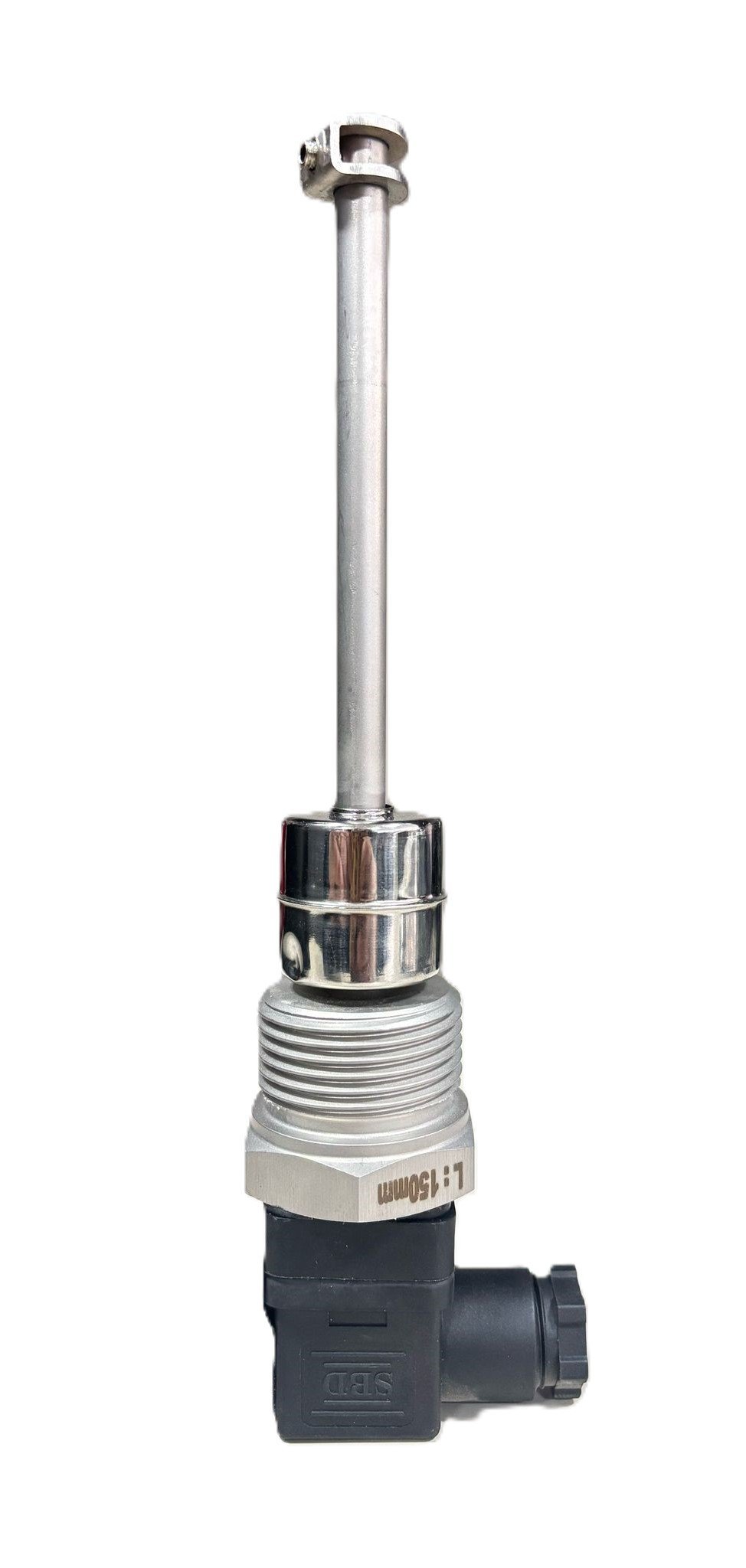

Stainless Steel Float Level Switch ELS
%28 Discounted Product
0 - Comment / Read Comments
153,60 EUR
110,59 EUR
Category
Brand
Stock Code
1512870005000210080000000
Price
128,00 EUR + VAT
* Installments starting from 110,59 EUR!
Add to Cart

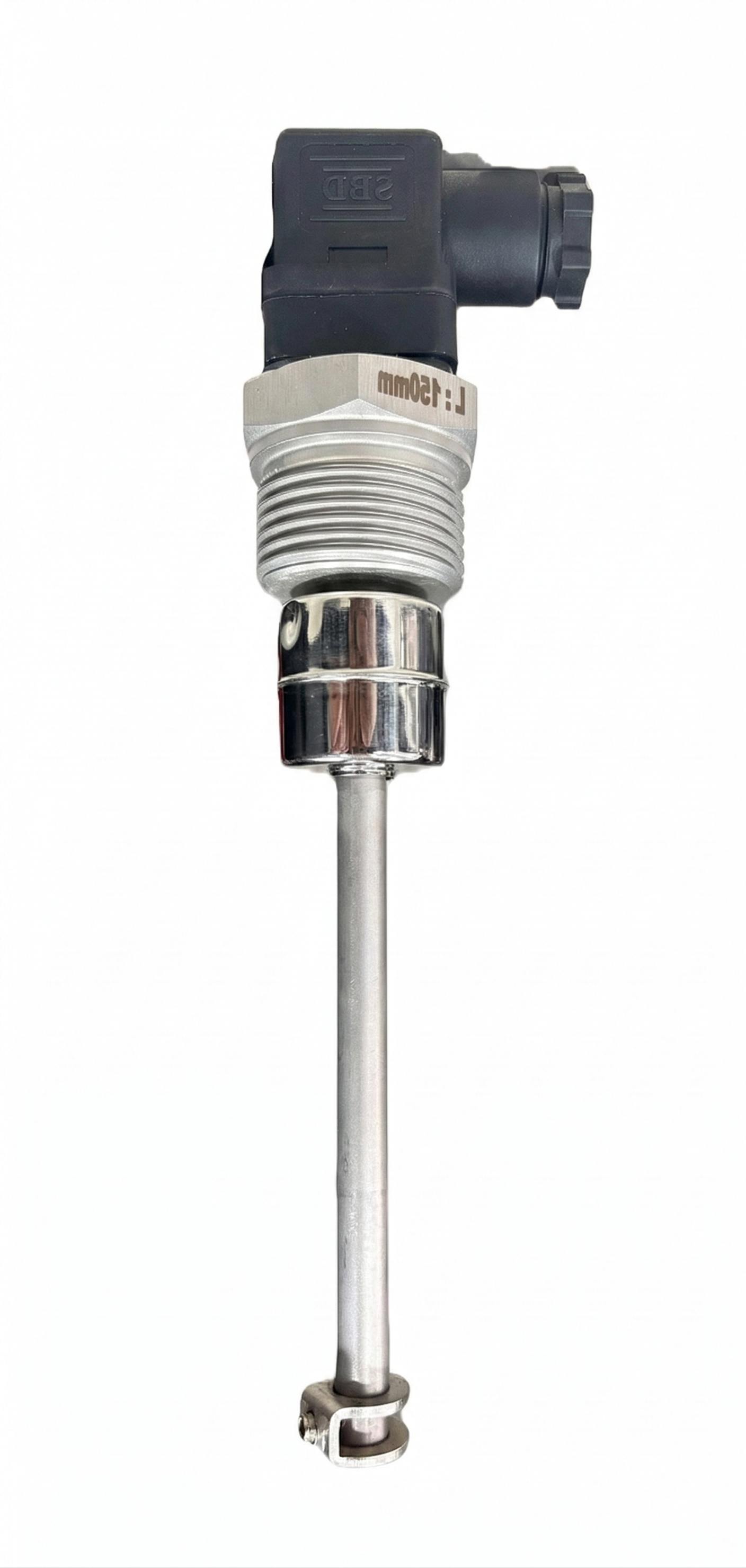

Stainless Steel Float Level Switch (ELS Series)
ORFA Industrial Products Industry and Trade Inc. 's Stainless Steel Float Level Switch (ELS Series) is an ideal solution for tank level control, offering high performance and durability. Its superior engineering design ensures long-lasting use in harsh industrial environments. It can be adapted to any application with various connection and material options, allowing users to meet a variety of process needs. This level switch reliably generates alarm or control signals by precisely detecting changes in liquid level.
Product Features:
Fluid-Suitable Material Options: Made of durable stainless steel material suitable for various fluid types.
Different Contact Options: Flexible use with contact structure that can be adapted according to need.
Easy Installation and Connection: Quick installation with terminal, cable and socket connection options.
Wide Application Range: Can be used in a wide range of industrial areas such as warehouses, tanks, boilers and water level control.
Working Principle:
The Stainless Steel Float Level Switch operates with a magnetic float that is sensitive to changes in liquid level. The float moves along the tube as the liquid level rises or falls. A magnet inside the float interacts with the reed sensor, creating a magnetic field. This field opens or closes the circuit when it reaches the reed sensor. This allows a relay circuit to monitor changes in liquid level and perform necessary control actions.
Technical Information:
Float Material: 316 Stainless Steel
Wet Part Material: 304 Stainless Steel (Standard)
Pipe Material: 304 Stainless Steel (Standard)
Float Type: S4A or S40A (Standard)
Density: 0.80 g/cm³
Operating Temperature : Maximum 125 °C
Mechanical Connection: R 1" (Standard)
Electrical Connection: Plug
Number of Buoys: 1 (Standard)
Immersion Length: Maximum 150 mm (Including Thread)
Number of Contacts: 2 × SPST - NA (Standard)
Contact Current : 1.5 Amps (Standard)
Maximum Pressure: 10 Bar
Maximum Contact Power: 50 W / VA
Maximum Supply Voltage: 200 VDC / 250 VAC (Standard)
Areas of Use:
Tank and Reservoir Level Control: Precise level monitoring and control in water, chemical and oil tanks.
Boiler Control: Safe and reliable level monitoring in industrial boilers.
Yacht Water Level Control: Automatic monitoring of water tanks on yachts and boats.
Waste Water Control: Effective control of liquid level in waste water tanks.
Hydraulic Oil Tank: Monitoring and control of oil level in hydraulic systems.
The Stainless Steel Float Level Switch (ELS Series) provides efficient and safe liquid level control in industrial processes. Its advanced magnetic sensor technology provides the user with a cost-effective, durable, and reliable solution.
| Tooth Measurement | : | 1'' |
| Length (mm) L: | : | 150 |
