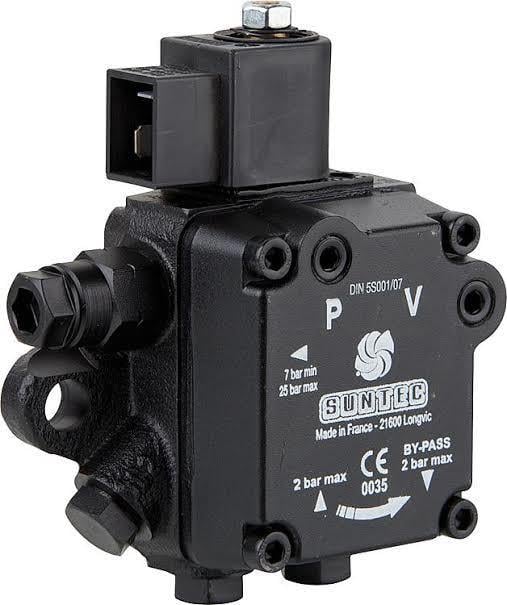

Suntec Diesel Fuel Pump AS 47 B
0 - Comment / Read Comments
Suntec Diesel Fuel Pump: Reliable Performance and Superior Efficiency
ORFA Industrial Products Industry and Trade Inc. offers the Suntec Diesel Fuel Pump, developed to meet the needs of the energy and industrial sectors. The Suntec Diesel Fuel Pump stands out with its high performance and reliability, can be used in a wide range of applications, and ensures efficient fuel management.
Product Features:
Quick Cut-Off and On Function: The Suntec AS oil pump features a regulator cut-off valve that provides quick cut-off and on function regardless of rotation speed. This instantly cuts off and starts the fuel flow, improving energy efficiency.
Internal Solenoid Valve: The pump's internal solenoid valve controls the pressure regulation and shut-off functions. The normally open solenoid valve, when activated, closes the bypass channel and quickly builds up the required pressure.
High Filtration Capacity: The pump draws oil from the tank through the built-in filter and regularly delivers it to the nozzle line. The filter has an open area of 6 cm² and an aperture size of 150 µm, providing high levels of filtration.
Automatic Air Purge: Automatic air purge is available in double-pipe systems. In single-pipe systems, the pressure port can be opened to speed up the air purge process.
Technical Information:
Mounting: Flange or hub mounting according to EN 225.
Connecting Threads: Cylindrical according to ISO 228/1.
Inlet and return: G 1/4 connection threads (with possibility of conical sealing in revision 6).
Nozzle Outlet: G 1/8.
Pressure Measurement Ports: G 1/8.
Vacuum Measurement Port: G 1/8.
Valve Function: Pressure regulating and cut-off (cut-off function is only guaranteed for the model pressure range).
Capacity: 45/35 kg/h
Capacity: 45/35 kg/h
Working Viscosity: 2 - 12 mm²/s (cSt)
Oil Temperature : 0 - 60°C.
Inlet Pressure: Maximum 2 bar.
Return Pressure: Maximum 2 bar.
Suction Height: Maximum 0.45 bar vacuum.
Solenoid Valve Features:
Voltage: 220-240 V
Consumption: 9 W maximum.
Maximum Pressure: 25 bar.
Certificate: TÜV number is stamped on the pump cover.
Protection Class: IP 54 according to EN 60529 when used with SUNTEC connection cable.
Application Areas:
The Suntec Diesel Fuel Pump is suitable for managing fuels such as light oil, B10 heating oil/biofuel blends (as defined in DIN V51603-6), and kerosene. It can be used in one- or two-pipe systems and is particularly preferred in industrial plants, heating systems, and fuel management applications.
The Suntec Diesel Fuel Pump, with its high performance, reliability, and wide range of applications, provides the efficient and reliable fuel management needed in the energy and industrial sectors. As ORFA Industrial Products Industry and Trade Inc. , we sell this superior product and offer high-quality and reliable solutions to our valued customers.
