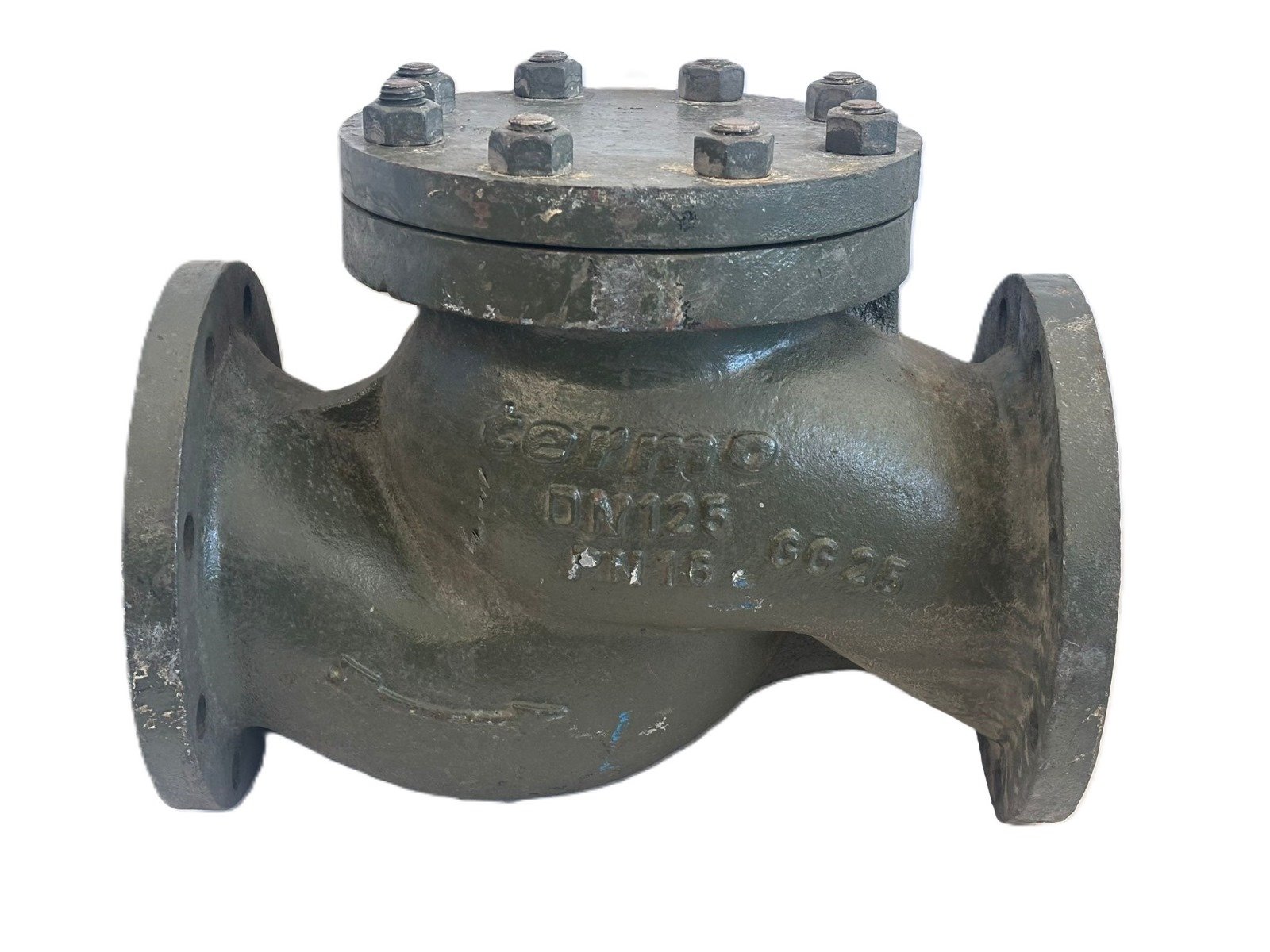

Thermo Lift Check Valve DN125 PN16 (TCVA13D) High Temperature and Pressure Resistant Safe Flow Control
The Thermo Lift Check Valve TCVA13D is a robust check valve designed to prevent backflow in industrial liquid and steam systems. With a diameter of DN125 and a pressure class of PN16, it offers a reliable solution in large-diameter lines. It stands out with its GG25 cast iron body, threaded connections in accordance with DIN standards, and temperature resistance up to 300°C.
This check valve allows fluid flow in only one direction within the system. It automatically prevents reverse flow, increasing equipment safety. Thanks to its compact size and reliable construction, the Thermo Lift TCVA13D is a maintenance-free, long-lasting solution.
Technical Specifications:
The Thermo Lift Check Valve TCVA13D is a robust check valve designed to prevent backflow in industrial liquid and steam systems. With a diameter of DN125 and a pressure class of PN16, it offers a reliable solution in large-diameter lines. It stands out with its GG25 cast iron body, threaded connections in accordance with DIN standards, and temperature resistance up to 300°C.
This check valve allows fluid flow in only one direction within the system. It automatically prevents reverse flow, increasing equipment safety. Thanks to its compact size and reliable construction, the Thermo Lift TCVA13D is a maintenance-free, long-lasting solution.
Technical Specifications:
Model: TCVA13D
Nominal Diameter: DN125
Connection Type: Threaded
Connection Standard: DIN 2999
Body: GG25 Cast Iron
Pressure Class: PN16
Maximum Working Pressure: 16 Bar
Maximum Operating Temperature: 300°C (at 10 Bar)
Dimension Norm: DIN 3202 – M9
Areas of Use:
Areas of Use:
Heating and steam installations
Industrial process lines
Compressed air and gas systems
Chemical liquid transfer lines
Fire systems
Food, textile and power plants
Water distribution and treatment systems
Thermo Lift Check Valve is a high temperature and pressure resistant solution that increases system safety and performance with ORFA Industrial quality.
Thermo Lift Check Valve is a high temperature and pressure resistant solution that increases system safety and performance with ORFA Industrial quality.
| Özellik | Değer | |
|---|---|---|
| Pressure Class (PN) | : | PN 16 |
| Nominal Diameter (DN) | : | DN 125 |
