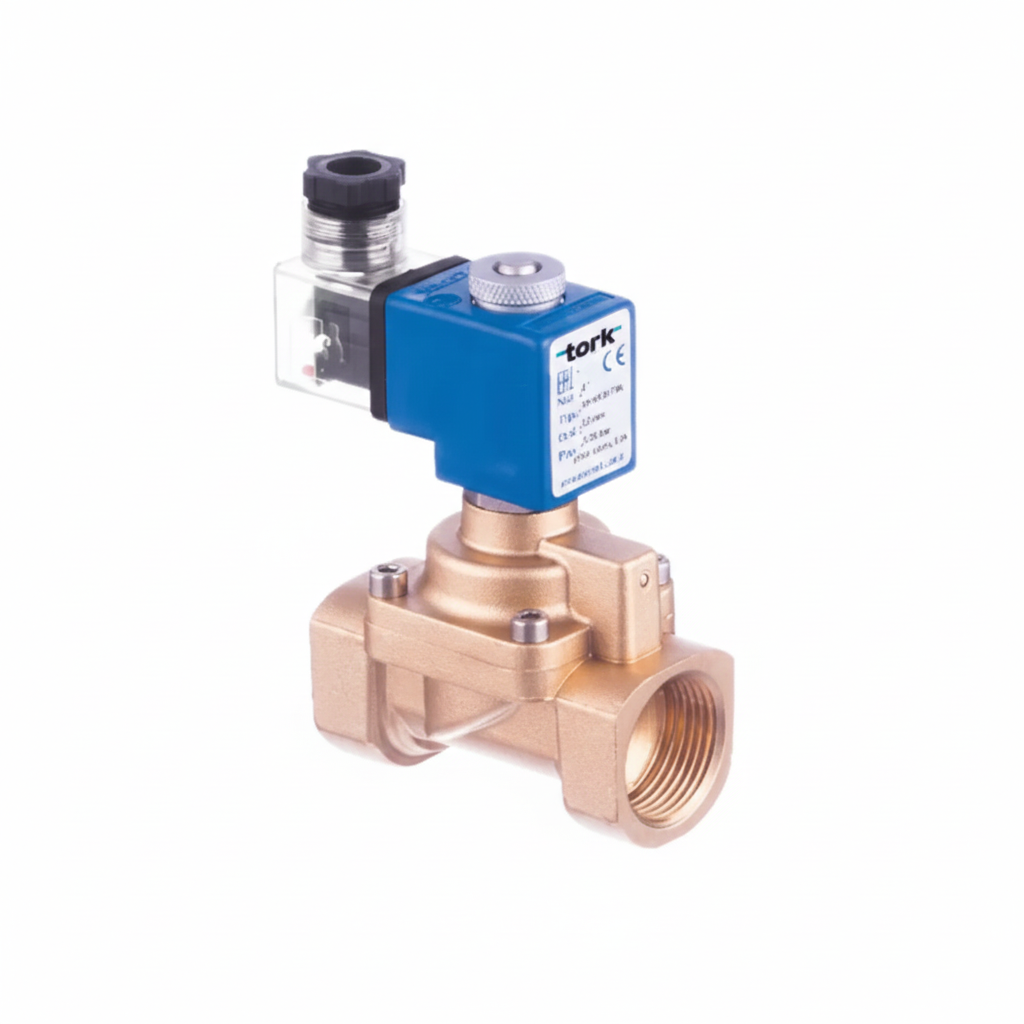

TORK S2083.04 High Temperature Steam Solenoid Valve 3/4"
Normally Closed, 180°C Resistant PTFE (Teflon) Diaphragm Solution.
The TORK S2083 Series Solenoid Valve has been developed to provide reliable flow control, especially in steam lines with high temperatures. The S2083.04 model, with its 3/4" connection size and pilot-operated principle, offers high performance in industrial systems.
The valve is suitable for controlling steam, water, air, and non-aggressive gases. Thanks to its PTFE (Teflon) diaphragm structure, it maintains its leak-proof seal at fluid temperatures up to 180°C. With its stainless steel internal parts and brass body, it has a corrosion-resistant structure.
Engineering Design and Productivity
This solenoid valve is designed to operate at differential pressures between 1 bar and 10 bar. While it can be mounted in any position, for long-lasting use, the coil should preferably be in the vertical upward position. Thanks to its Class H insulated coil, it is suitable for continuous operation (ED 100%) and maintains its stability under demanding operating conditions.
Detailed Technical Specifications
| Parameter | Specification |
|---|---|
| Model / Order No. | S2083.04 (3/4") Solenoid Valve |
| Connection Size | 3/4" G (BSP) |
| Orifice Diameter | 17 mm |
| Working Pressure | 1 - 10 Bar |
| Maximum Fluid Temperature | +180 °C |
| Diaphragm / Seal | PTFE (Teflon) |
| Body Material | Rice |
| Flow Coefficient (Kv) | 90 Lt/min |
| Weight | 0.9 kg |
Application Areas and Recommendations
- Steam Technologies: Steam irons, generators, and industrial ovens.
- Industrial Gases: Precise flow management in air and inert gas lines.
- Installation: To prevent system contamination and extend valve life, it must be used with a filter.
- Standards: The product complies with PED 97/23/EC and LVD 2006/95/ECC regulations.
SMS-TORK Solenoid Valve
High Temperature and Reliable Performance in Flow Control
| Pressure Class (PN) | : | PN 10 |
| Thread Size | : | 3/4'' |
| Gasket / Seal Material | : | Teflon (PTFE) |
