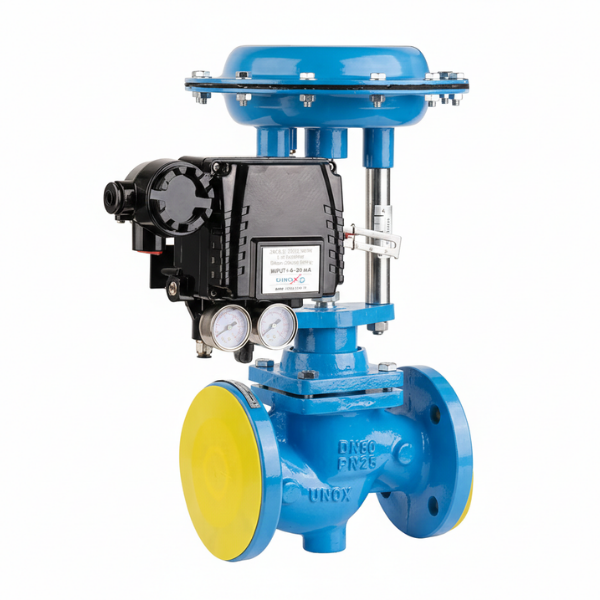

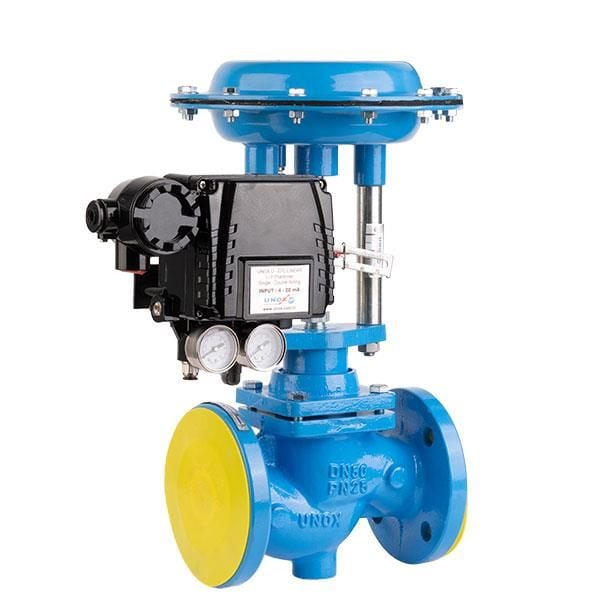

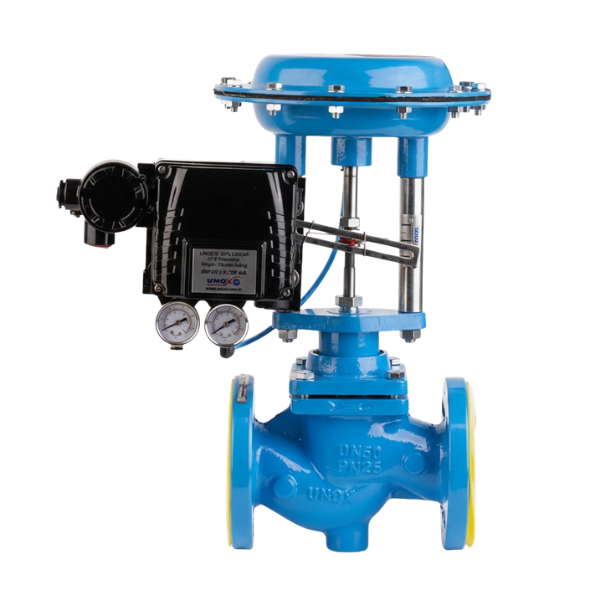

Unox 33604 Pnömatik Oransal Kontrol Vanası Dn40 Pn16
%55 Discounted Product
0 - Comment / Read Comments
2.882,42 USD
1.297,09 USD
Brand
Stock Code
020953
Warranty Period
24 Month
Price
2.402,01 USD + VAT
* Installments starting from 245,06 USD!
Add to Cart
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.
Pneumatic Proportional Control Valve
ORFA Industrial Products Industry and Trade Inc. offers a 2-Way Pneumatic Proportional Control Valve specifically designed for precise fluid management in industrial processes. These advanced technology valves proportionally adjust the flow passage size based on a signal from a controller, ensuring critical parameters such as flow, pressure, temperature, and level are kept under control. They offer a reliable solution for efficient fluid management, particularly in pressurized steam and hot oil lines.
Proportional Working Principle
The pneumatic proportional control valve is based on the principle of proportional control. In this system, the valve position is adjusted proportionally to the error between the setpoint and the current process value. The control signal varies depending on the magnitude and direction of the error, allowing precise fluid flow regulation based on process requirements. The proportional operating principle ensures process stability, minimizes energy losses, and increases plant efficiency.
Technical Information
Product: 2-Way Pneumatic Proportional Control Valve (With Metal Bellows)
Dimensions: DN40
KVS (m³/h): 30
Connection Standard: Flange Connection (DIN1092-2)
Pressure Class: PN16
Safety Position: Normally Closed – Normally Open
Sealing Class: CLASS VI (PTFE Soft Sealing)
Maximum Operating Temperature: 220°C
Neck Sealing: V - Package PTFE - Graphite
Optional: Class IV (Metal to Metal Sealing)
Characteristic : Equal Percentage (Proportional)
Signal Pressure (Bar): 0.2-1, 0.4-2, 0.6-3, 1.4-2.3
Supply Air Pressure (Bar): 1.8, 2.6, 3.5, 2.8
Positioner: Not Included
Material Properties
Body: GGG-40.3 Ductile Iron
Cover: GGG-40.3 Ductile Iron
Neck Connector: ST44-3 (S275J0)
Seat (Bed): 1.4571 Stainless Steel (AISI316)
Areas of Use
Our pneumatic proportional control valve is particularly preferred in demanding processes such as pressurized steam and hot oil lines. Accurate and reliable fluid management in these lines is critical. Furthermore, this valve offers a solution when energy-generated fluids such as cold water, hot water, steam, and gas need to be transported and managed without loss. Its high-temperature and pressure-resistant design ensures long-lasting and efficient operation.
ORFA Industrial aims to offer the highest quality in process control. Our pneumatic proportional control valve helps you increase the efficiency of your industrial processes while simultaneously saving energy and costs.
| Pressure Class | : | PN 16 |
| Diameter-Dn | : | DN 40 |
