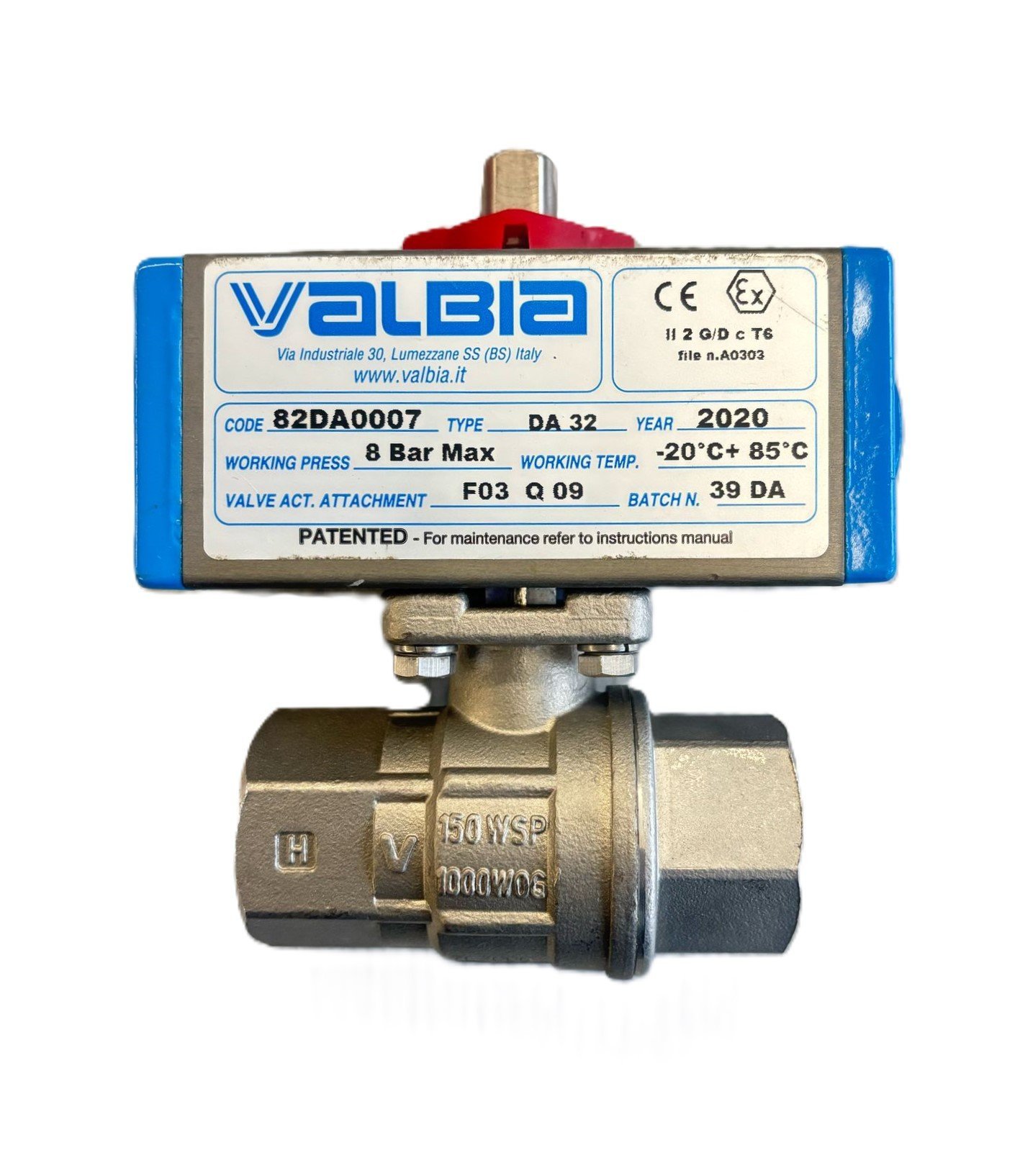

Valbia 8P00030005 Stainless Ball Valve with Pneumatic Actuator AISI316 3/4'' PN64

ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş. With the assurance of Valbia 8P00030005 Pneumatic Actuated Stainless Ball Valve, it offers high performance and reliability for your industrial applications.

This valve is a combination of Valpres 70300005 Stainless Ball Valve and Valbia DA32 double-acting pneumatic actuator. AISI Made of 316 stainless steel, the valve has high resistance to corrosion and provides long-lasting use. The valve in size 3/4" is suitable for pressure class PN64 and can operate over a wide temperature range (-20°C +160°C).

Stainless Ball Valve with Actuator Features:

• Material: AISI 316 stainless steel (CF8M)
• Size: /4"
• Pressure Class: PN
• Temperature Range: -20°C +160°C
• Actuator: Valbia DA32 double acting pneumatic actuator
• Link: Thread (F/F)
• ISO 5211 compatible mounting pad
• Antistatic feature

Valbia DA32 Pneumatic Actuator Features:

• Double action: Fast and reliable opening/closing
• Aluminum body: Light and durable
• Visual position indicator: Easily track valve position
• /8" BSP pneumatic connections
• -20°C / +85°C temperature range (NBR gaskets)
• Maximum 8 Bar air supply pressure
• ATEX II 2GD T6 compatible

Stainless Ball Valve with Actuator Application Areas:

Valbia 8P00030005 Stainless Ball Valve with Pneumatic Actuator can be used in many industrial applications as follows:

• Chemistry and petrochemistry
• Food and beverage
• Drug
• Textile
• Water and wastewater treatment

Advantages of Stainless Ball Valve with Actuator:

• Made from high quality material.
• Resistant to corrosion.
• Long lasting.
• Provides reliable and precise control.
• Easy installation and maintenance
