Valbia 8P00030006 Pnömatik Aktüatörlü Paslanmaz Küresel Vana AISI316 1'' PN64

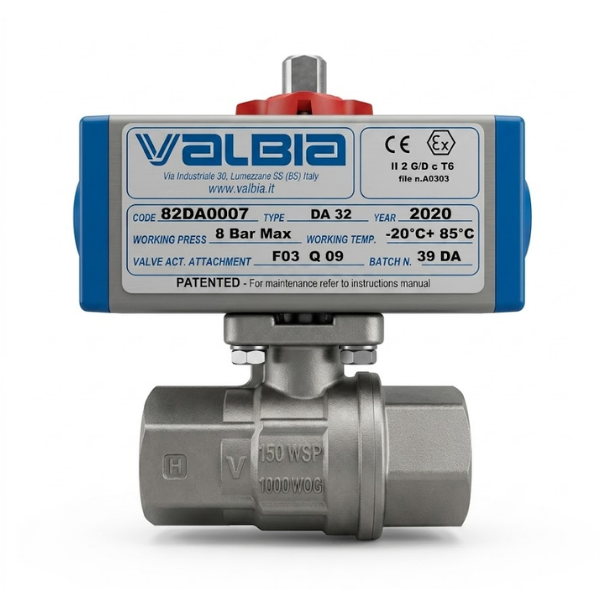

Valbia 8P00030006 Pneumatic Actuated AISI 316 Stainless Ball Valve 1" PN

ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş. As, we offer high performance and reliable valve solutions that your industrial facilities need. Valbia brand's stainless steel ball valve with pneumatic actuator, code 8P00030006, is an ideal choice for your various applications with its size 1" (DN25) and pressure class PN64. It is formed by the combination of pneumatic actuator.

Stainless Ball Valve with Pneumatic Actuator Features:

Valpres 70300006 Ball Valve:

• AISI 316 (CF8M) stainless steel body: Stainless Ball Valve with Pneumatic ActuatorSuperior corrosion resistance and long life.
  • Full bore design: High flow capacity and low pressure loss.
  • F/F threaded connection: Easy assembly.
  • -20°C to +160°C: Wide application range.
  • ISO 5211 compatible actuator connection surface and direct mounting possibility.
  • Antistatic device.
  • Valbia DA32 Pneumatic Actuator:
• Double-action operation: Fast and precise control.
  • Hard anodized aluminum body: Durability and lightness.
  • Visual position indicator: Instant status monitoring.
  • /8" BSP pneumatic connections: Standard compatibility.
  • Bi-directional stroke adjustment: Precision control.
  • NAMUR standard solenoid valve and top mounting possibility.
  • ISO 5211 and DIN 3337 compatible pinion: Easy installation.
  • ATEX II 2GD T6 compatibility: Safe in explosive environments usage.
  • -20°C to +85°C working temperature (NBR with gaskets).
  • Stainless Ball Valve with Pneumatic Actuator Usage Fields:

Chemical and petrochemical industry

• Food and pharmaceutical industry
• Water and wastewater treatment
• Energy production
• HVAC systems
• Automation systems
• Marine
• Valbia Pneumatic Actuated Stainless Ball Valve:

High Performance:

• Precise control, high flow capacity and reliable operation. Durability:
• Corrosion-resistant stainless steel body and robust actuator. Safety:
• Safe use in explosive environments with ATEX certification. Efficiency:
• Low pressure loss and energy saving. Versatility:
• Wide temperature range and compatibility with different fluids. ORFA As Industrial Products, Valbia 8P00030006 Pneumatic Actuated AISI 316 Stainless Ball Valve and other industrial valves You can contact us to get detailed information about our solutions. Our expert team will be pleased to offer the most suitable solutions for your needs.

ORFA Endüstriyel Mamüller olarak, Valbia 8P00030006 Pnömatik Aktüatörlü AISI 316 Paslanmaz Küresel Vana ve diğer endüstriyel vana çözümlerimiz hakkında detaylı bilgi almak için bizimle iletişime geçebilirsiniz. Uzman ekibimiz, ihtiyaçlarınıza en uygun çözümleri sunmaktan memnuniyet duyacaktır.
