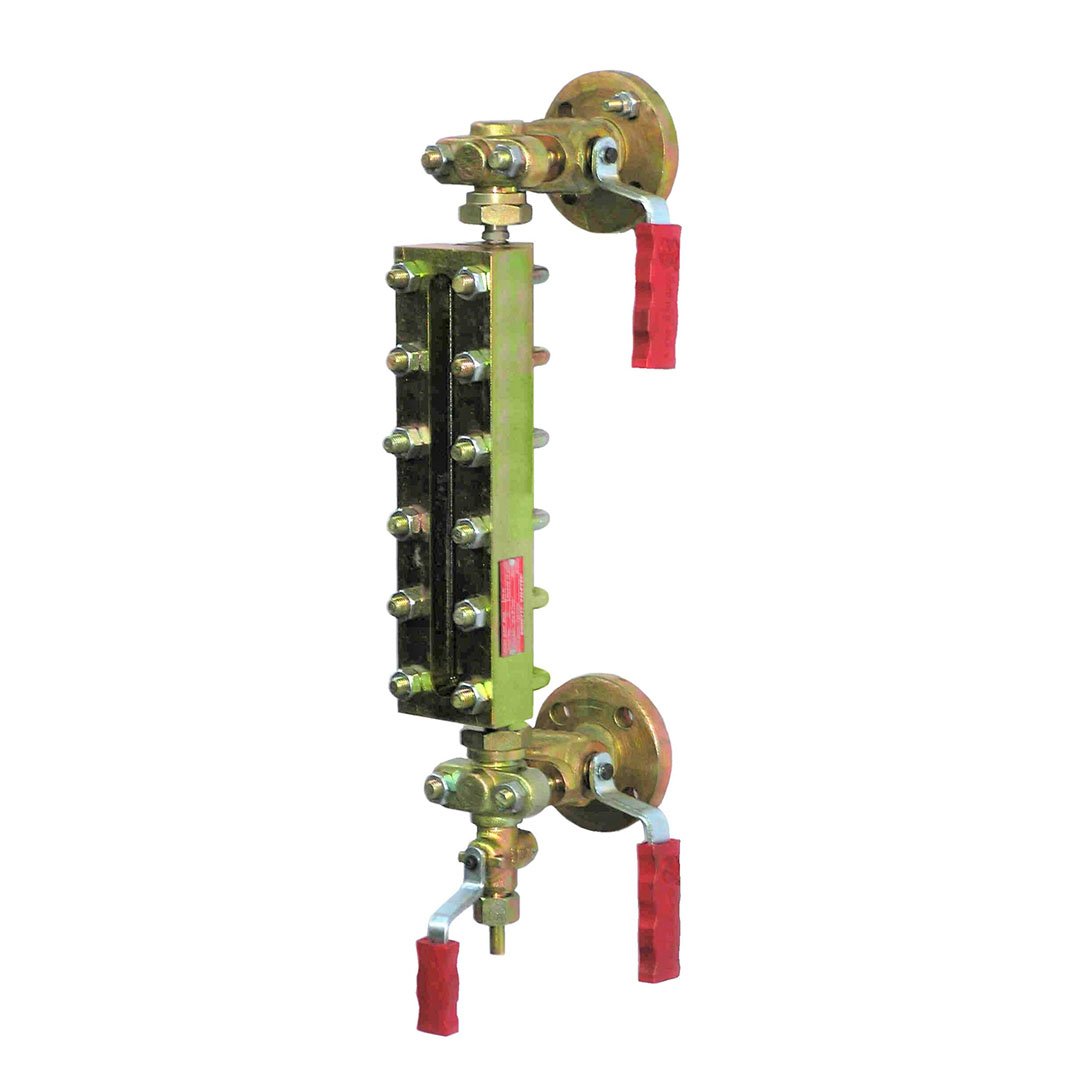

VALFTEK BR-24B Reflex Glass Level Gauge VII L: 400mm

With ORFA Industrial Warranty for Precise Level Control in Steam Systems

Designed for precise water level monitoring in steam boilers, heating systems, and industrial processes, the reflex glass level gauge has the ability to instantly distinguish between liquid and gas phases thanks to the optical properties of light refraction. The VALFTEK BR-24B model reflex glass level gauge, with its 400 mm glass tube, offers an ideal solution for medium and high-capacity reservoirs. This professional reflex glass level gauge displays the liquid phase as dark because it absorbs light, while the steam phase shines with its light reflection, providing clear contrast. VALFTEK reflex glass level gauge, which you can procure from ORFA Industrial stocks, is supplied standard in pressure class PN40 with PN and DN20 flange connections. This reflex glass level gauge, manufactured with durable type B borosilicate glass, is engineered for safe operation in the range from -20°C to +300°C. Thanks to the 10 mm internal passage diameter and Ø16 adapter connection, this reflex glass level gauge allows fast and leak-free installation, which greatly facilitates level reading by operators. The G11 valve group type used in the VALFTEK reflex glass level gauge system provides maximum protection against pinhole leaks and glass breakage even under the most severe steam conditions. This reflex glass level gauge, with a calculated tightening torque of 50 Nm, is installed by professional technicians using standard torque tools. By clearly observing the interface between the two phases, this reflex glass level gauge allows boiler level control, making it the preferred choice of operators due to low investment and operating costs. Each reflex glass level gauge unit is supplied in compliance with EN 12266 and DIN 3352 standards with quality backed by VALFTEK and ORFA Industrial warranty. Elevate your steam system level control to professional standards with VALFTEK reflex glass level gauge, which ensures piping safety, quick reading, and long-lasting operation.

Discover VALFTEK reflex glass level gauge solutions for safe level monitoring and long-lasting service in your steam systems.
