VALFTEK Pirinç Disko Çekvalf DN65 PN16
Category
Brand
Stock Code
1606708021270200010030210
Warranty Period
24 Month

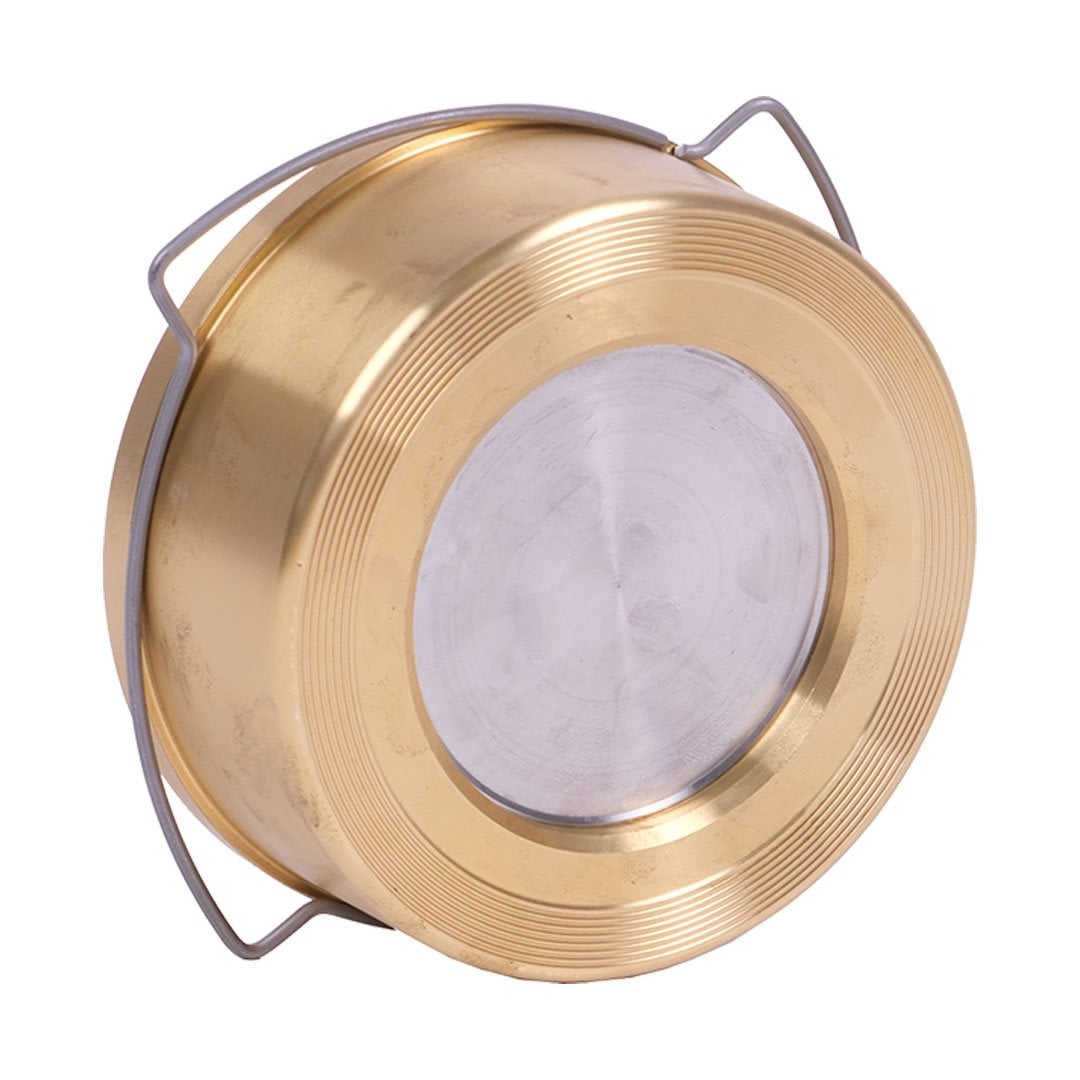

VALFTEK Brass Disc Check Valve DN65 PN16
Reliable Flow Control with ORFA Industrial Assurance
Designed for reliable flow control and backflow prevention in industrial installations, the disc check valve combines a brass body and metal-to-metal sealing technology from the VALFTEK brand. With a nominal diameter of DN65 and pressure rating PN16, this disc check valve is ideal for demanding fluids such as hot water, superheated water, and compressed air. Its compact design allows for easy installation, and the spring-loaded disc mechanism provides quick response and maximum system safety. The valve opens the disc under the pressure of the fluid flowing in the forward direction; when the flow stops or reverse pressure occurs, the disc closes with spring assistance, ensuring 100% backflow prevention. Brass material offers high resistance to corrosion and oxidation, providing long service life in harsh industrial environments. Manufactured according to VALFTEK's precision standards, this model contributes to energy efficiency with low pressure loss and quiet operation. Metal-to-metal sealing eliminates the use of elastomeric seals, maintaining sealing performance even under temperature and pressure fluctuations. The VALFTEK disc check valve is produced in accordance with TS EN 12334 standard. The wafer-type body design for DN65 between-flange installation provides ease of mounting. The PN16 pressure rating allows safe operation up to 16 bar working pressure. The operating temperature range of -10°C to +120°C offers a wide range of applications.
Disc Check Valve Technical Specifications
Key Advantages of Disc Check Valve
- Reliable Sealing: Metal-to-metal design provides excellent disc check valve performance under high temperature and pressure.
- Compact Design: Wafer type construction for easy installation in tight spaces – a disc check valve advantage.
- Low Pressure Loss: Minimal resistance to flow for energy-efficient disc check valve operation.
- Long Service Life: Corrosion-resistant brass body and stainless steel spring ensure maintenance-free disc check valve performance.
Disc Check Valve Application Areas
- Heating Systems: Prevents backflow in hot water and superheated water circuits using disc check valve.
- Compressed Air Lines: Safe operation at compressor outlets with disc check valve.
- Water Distribution Networks: Protection of pumping stations with disc check valve.
- Industrial Processes: Disc check valve applications in chemical plants and refineries.
Discover safe flow management in your installation with VALFTEK Disc Check Valve solutions.
| Body Material | : | Brass |
| Pressure Class (PN) | : | PN 16 |
| Nominal Diameter (DN) | : | DN 65 |
