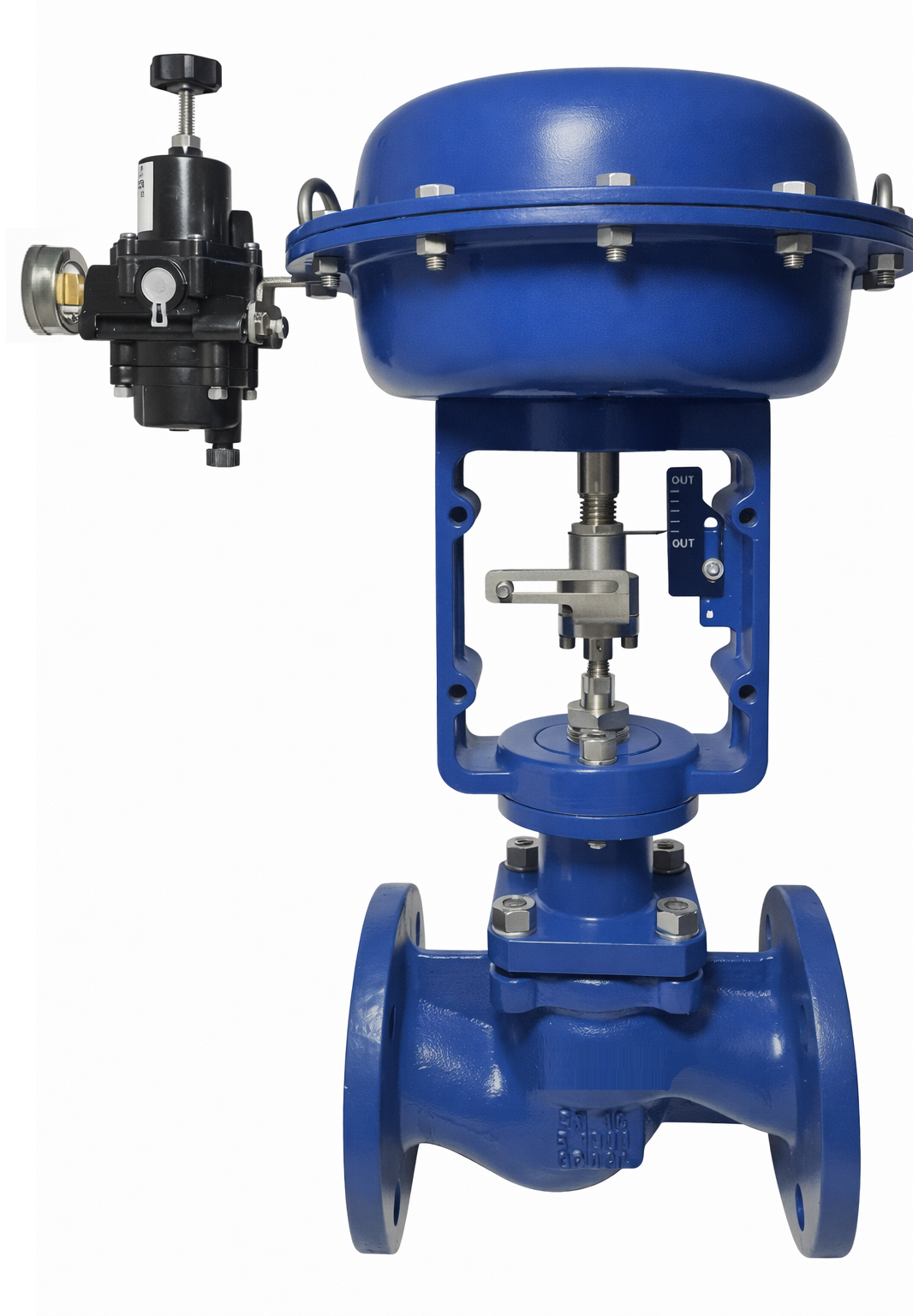

VALFTEK® DN65 PN16 Pneumatic On/Off Control Valve – Flanged
The VALFTEK® VTC Pneumatic On/Off Control Valve DN65 PN16 is a globe-type control valve designed to provide safe and rapid on/off control of fluid flow in industrial process lines. Equipped with a spring-loaded diaphragm pneumatic actuator and air filter regulator, this configuration offers stable air supply and high process reliability.
Thanks to its flanged connection structure and robust housing material, it provides long-lasting and reliable performance in demanding fluid applications such as water, steam, compressed air, and hot oil.
Thanks to its flanged connection structure and robust housing material, it provides long-lasting and reliable performance in demanding fluid applications such as water, steam, compressed air, and hot oil.
Control Valve Operating Principle
The valve operates using air pressure applied to a pneumatic actuator. This model features an On/Off control valve principle. When air pressure is applied, the valve opens; when the air pressure is cut off, the spring force engages, closing the valve.

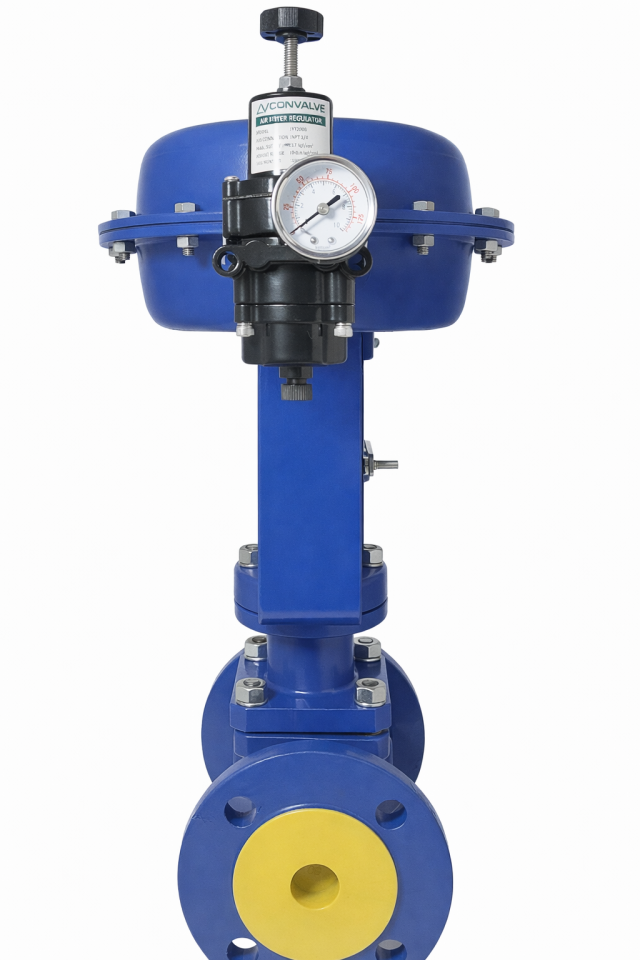

The air filter regulator filters the air entering the pneumatic line, removing moisture and particles, and ensures a constant air pressure supply to the actuator, contributing to the stable operation of the system.
The air filter regulator filters the air entering the pneumatic line, removing moisture and particles, and ensures a constant air pressure supply to the actuator, contributing to the stable operation of the system.
Technical Specifications
Brand / Series: VALFTEK® VTC
Nominal Diameter: DN65
Pressure Class: PN16
Connection Type: Flanged (RF)
Body Material: Cast Iron (EN 5.1301)
Trim Material: AISI 420 / AISI 316
Seal: PTFE / Graphite
Leakage Resistance Class: Class IV
Control Type: On / Off
Pneumatic Actuators and Air Equipment
Actuator Type: Spring-loaded diaphragm pneumatic
Type of Action: Direct or inverse action
Control Method: On / Off
Working Conditions and Practices
Operating Temperature: -10 °C / +300 °C (PN16 – EN 5.1301)
Application Areas:
– Water and hot water systems– Steam installations
– Compressed air lines
– Hot oil applications
– Industrial process lines
Certificates:
TS EN 13789
PED 2014/68/EU
CE Certified
Why choose VALFTEK® DN65 PN16 Pneumatic On/Off Control Valve?
– Robust housing structure and flanged connection security.
– Fast opening and closing with spring-loaded diaphragm pneumatic actuator.
– Stable air supply with CONVALVE filter regulator
– Suitable for steam, water, compressed air and hot oil applications.
A reliable and long-lasting On/Off control solution for your industrial processes.
| Pressure Class (PN) | : | PN 16 |
| Nominal Diameter (DN) | : | DN 65 |
