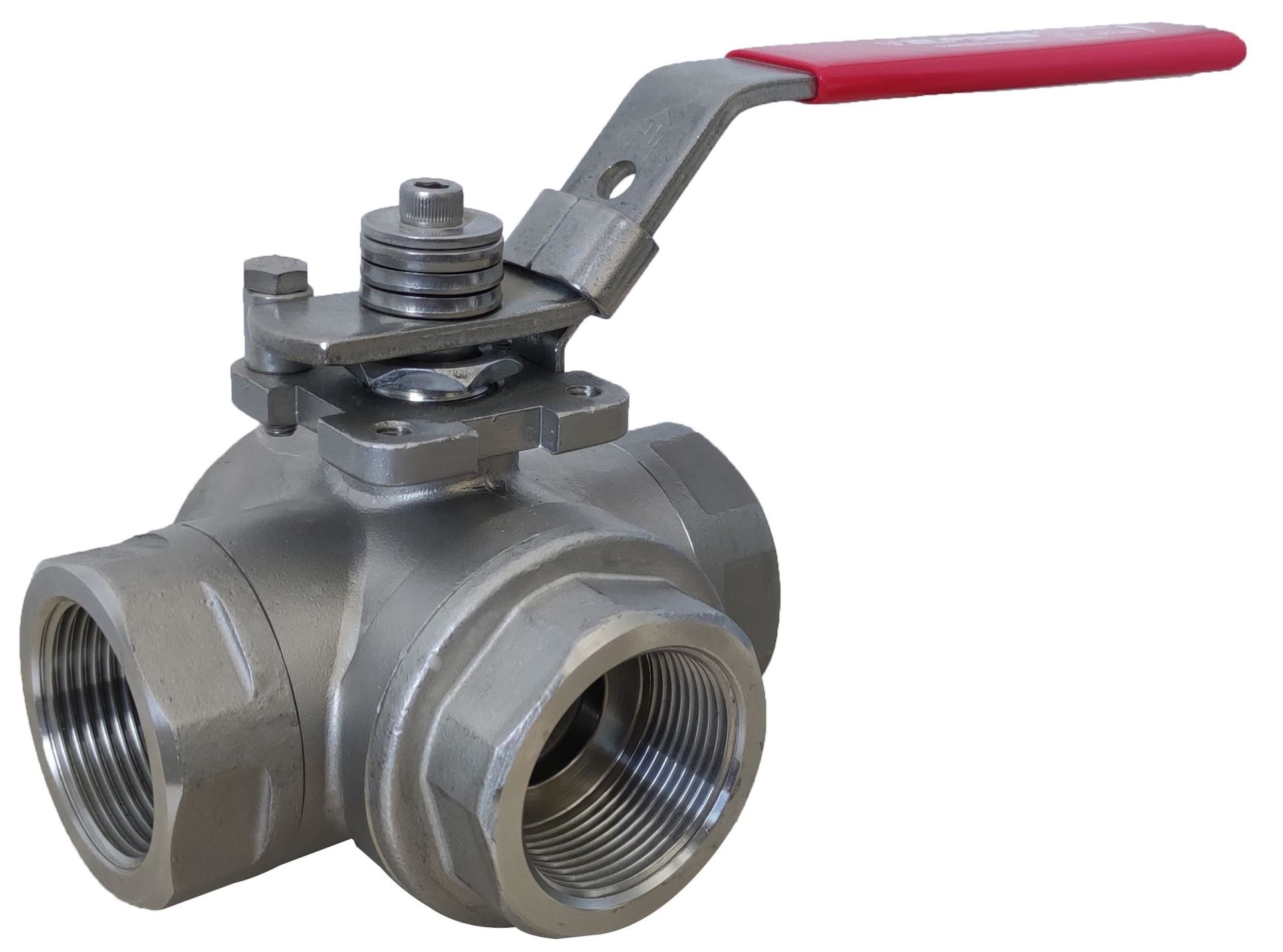

VALPRES Üç Yollu L Tipi Paslanmaz Küresel Vana 1/4'' PN63

VALPRES Combi-Sfer 775000 Three-Way L-Type Stainless Steel Ball Valve: Precise Direction and Superior Corrosion Resistance

VALPRES is a trusted Italian brand in industrial valves. The VALPRES Combi-Sfer 775000 Three-Way L-Type Stainless Steel Ball Valve is a high-tech product designed specifically for diverting aggressive fluids and controlling flow in high-pressure processes.

This Three-Way L Type Stainless Steel Ball Valve stands out with its critical material quality while offering resistance to very high pressures such as PN63 (63 bar) even in line diameters as small as 1/4 inch (DN8) .

What is a Three-Way L-Type Stainless Steel Ball Valve and How Does It Work?

The Three-Way L-Type Stainless Steel Ball Valve is a valve with three ports that directs fluid flow by changing the position of the perforated ball inside. The term "L-Type" (L-Port) indicates that the hole inside the ball is L-shaped.

Three Way L Type Stainless Steel Ball Valve Working Principle: L Type valves allow the fluid to:

1. Entering Port One and exiting Port Two (Port Three remains closed), OR

2. It allows the fluid to enter through Port One and exit through Port Three (Port Two remains closed). This design allows the fluid to be diverted, not mixed .

VALPRES Combi-Sfer 775000 Three-Way L Type Stainless Steel Ball Valve Features and Advantages:

• Superior Material (AISI 316L Stainless Steel): All wetted parts, such as the valve body, ball, and shaft, are manufactured from 316L Stainless Steel . The "L" designation indicates that the material has a low carbon content, which enhances post-weld corrosion resistance. This is a critical property for chemicals and saltwater.

• High Pressure Resistance (PN63): Withstands a very high nominal pressure of 63 bar (approximately 913 PSI).

• Actuator Mountable: A mounting flange on the valve stem allows for easy mounting of pneumatic or electric actuators. This provides flexibility for integrating the valve into remote and automated control systems.

• Compact Diameter: 1/4'' small diameter is ideal for precise dosing and pilot lines.

• Quick Control: Flow can be checked instantly with a 90-degree quarter-turn movement.

• Reliable Sealing: PTFE (Teflon) bearings provide excellent sealing even under high pressure.

Three-Way L Type Stainless Steel Ball Valve Usage Areas:

• Chemical and Petrochemical Installations: Directing acids, alkalis and other aggressive chemicals.

• Food and Pharmaceutical Industry: Directing products to different tanks in hygienic lines.

• Marine Applications: Lines requiring high corrosion resistance to salt water.

• High Pressure Gas and Air Lines: Fluid routing under high pressure.
