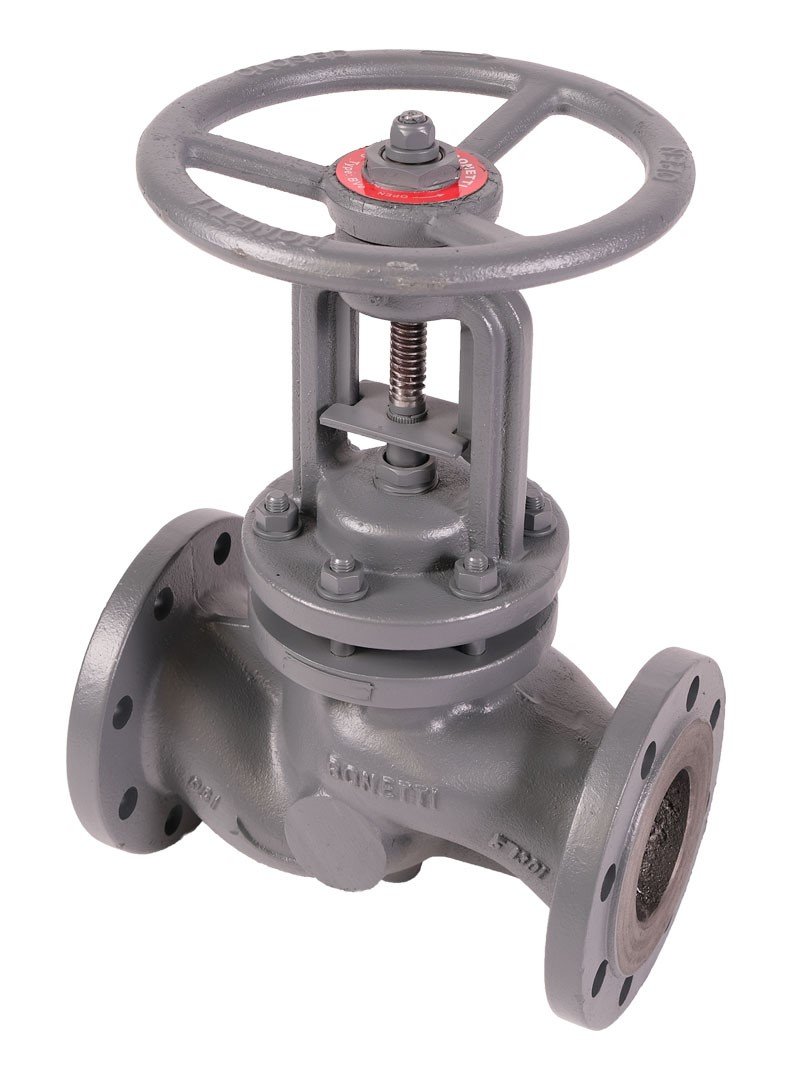

VALFTEK Denge Pistonlu Vana DN200 PN16
%32 Discounted Product
0 - Comment / Read Comments
2.541,60 USD
1.728,29 USD
Category
Brand
Stock Code
APV216200.D
Warranty Period
24 Month
Price
2.118,00 USD + VAT
* Installments starting from 326,53 USD!
Add to Cart
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.
VALFTEK Balance Piston Valve
Combining performance and control in high capacity industrial fluid systems, the VALFTEK Balance Piston Valve DN200 PN16, is specially designed for large diameter lines. ORFA This advanced technology valve, supplied by Endüstri Mamüller Sanayi ve Ticaret A.Ş. , provides superior durability and sealing in steam, superheated water and other high-temperature fluids.
Thanks to its balance piston structure, high pressure differences that occur during valve opening and closing are balanced; This provides operators with a safer operating experience with minimum effort.
Balance Piston Valve Technical Specifications:
Size: DN
Pressure Class: PN
Body Material: Cast iron
Gasket Material: Pure graphite with stainless steel reinforcement (asbestos-free)
Operating Temperature: -29°C to +400°C
Connection Type: Flanged connection (EN1092-2)
On-Off: Manual operation requiring low torque
Balance Piston Design: Provides easy and safe opening-closing by balancing the pressure difference for diameters over DN
Balance Piston Valve Certificates:
PED 2014/68/EU CE
TA Luft
API6FA / BS6775 Fire Safe
Balance Piston Valve Working Principle
VALFTEK Balance Piston Valve is designed with a balance piston structure in order to eliminate flow resistance and opening-closing difficulties that may occur in large diameter and high pressure lines. The metal piston inside the valve body controls the flow by moving linearly with the movement of the shaft. This piston is positioned to be subjected to pressure from both directions. Thus, when the valve is opening or closing, the forces created by the fluid pressure balance each other.
Thanks to this design:
The need for torque applied by the operator is greatly reduced.
Opening-closing operations are more controlled, safer and smoother.
The risk of wear and gasket deformation is reduced, thus extending maintenance periods.
Asbestos-free stainless steel reinforced pure graphite rings used inside the body maintain sealing even under high temperatures (up to 400°C) and pressure. This balance piston system is standard on all models DN50 and above and is especially ideal for steam, superheated water and aggressive fluids.
Balance Piston Valve Usage Areas:
Steam lines and boiler systems
Superheated water distribution systems
Thermal and hydroelectric power plants
Industrial plumbing systems
Petrochemical and refinery processes
Food, textile, pharmaceutical and chemical industries
Heating-cooling and HVAC applications
VALFTEK Balance Piston Valve provides reliable control in large-scale industrial fluid systems with its high temperature and pressure resistant structure. Thanks to its balance piston design, it requires low opening-closing torque, thus increasing operator comfort and maximizing system efficiency. This high-tech valve, which has international certificates such as CE, TA Luft and API6FA/BS6775, stands out with its long-lasting performance and tightness.
ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş . VALFTEK Balance Piston Valve, offered with the assurance, is a high standard solution for harsh environments such as steam, superheated water and process liquids. You can choose it safely in your projects with strong stock support, technical consultancy and after-sales services.
| Body | : | Iron Casting |
| Pressure Class | : | PN 16 |
| Diameter-Dn | : | DN 200 |
