VALFTEK Disco Check Valve DN65 PN16
0 - Comment / Read Comments
Category
Brand
Stock Code
1606708021280200010030210
Warranty Period
24 Month
@VALFTEK Disco Check Valve

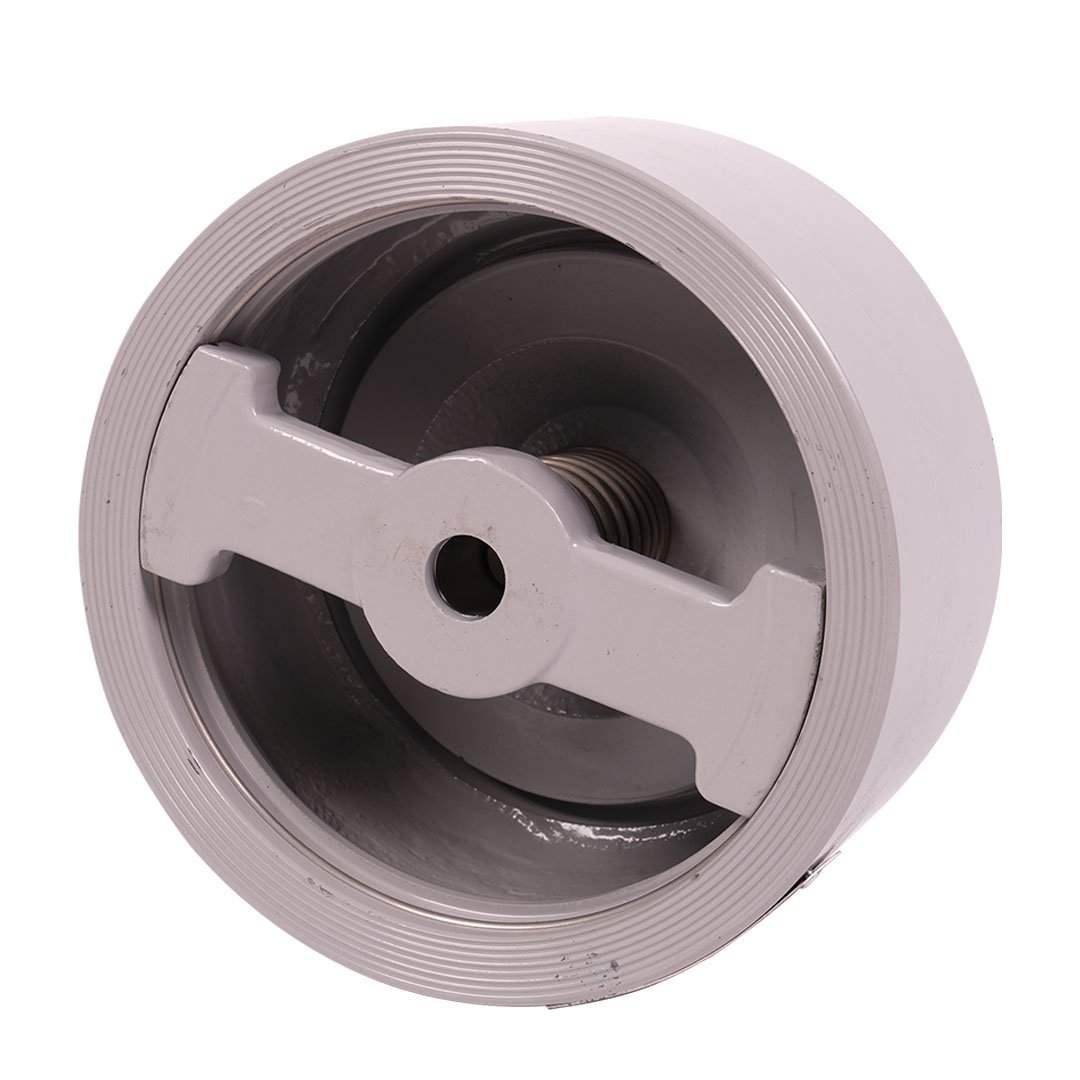

ORFA Industrial Mamüller Sanayi ve Ticaret A.Ş is sold by VALFTEK Disco Check Valve DN65 PN is a high-performance flow control element specially designed to prevent backflow in industrial installations. Thanks to its compact wafer type structure, it can be easily used even in limited areas. While its ductile iron body offers durability and long-lasting use, it provides maximum security thanks to its metal-to-metal sealing feature. It plays a critical role especially in systems where fluids such as water, superheated water, hot water and compressed air are transported. The check valve is based on the principle of opening the disc mechanism with the flow force when the flow in the system is in the correct direction. When the flow stops or occurs in the opposite direction, the disc automatically closes under the effect of gravity and back pressure.
The metal-to-metal sealing structure of the disc provides high sealing performance even under the most difficult operating conditions. This design is especially preferred in systems operating under high temperature and pressure. Ayrıca, yay mekanizmasının bulunmaması sayesinde minimum hareketli parça ve düşük bakım gereksinimi sunar.
Teknik Özellikleri
Boyutlar:
DN65 wafer tipi bağlantı, kompakt structure
Material:
High strength ductile iron body Pressure class:
PN16 (maximum 16 bar working pressure) Temperature range:
Wide operating temperature from -20 °C to +250 °C Sealing:
Metal-to-metal sealed structure, minimal leakage risk Connection type:
Wafer type, easy mounting between flanges Flow direction:
One-way flow control Maintenance:
Low maintenance need, long-term durability Disco Check Valve Usage Areas
Superheated water systems Hot water lines
Public water distribution lines
Compressed air installations
Industrial process lines
Power plants and HVAC systems
ORFA
VALFTEK Disco offered for sale by Endüstri Mamüller Sanayi ve Ticaret A.Ş.
Check valve
offers a high-performance and reliable solution in your installation thanks to its superior material quality, strong sealing ability and ease of maintenance. Its metal-to-metal sealing structure allows for long-lasting use with its resistance to high temperature and pressure. It is an ideal choice for energy saving and system security in both industrial and commercial applications. tarafından satışa sunulan VALFTEK Disco Çekvalf , üstün malzeme kalitesi, güçlü sızdırmazlık kabiliyeti ve bakım kolaylığı sayesinde tesisatınızda yüksek performanslı ve güvenilir bir çözüm sunar. Metal metale sızdırmaz yapısı, yüksek sıcaklık ve basınca dayanıklılığı ile uzun ömürlü kullanım imkanı tanır. Hem endüstriyel hem de ticari uygulamalarda enerji tasarrufu ve sistem güvenliği için ideal bir tercihtir.
| Diameter-Dn | : | DN 65 |
| Body | : | Ductile Iron |
| Pressure Class | : | PN 16 |
