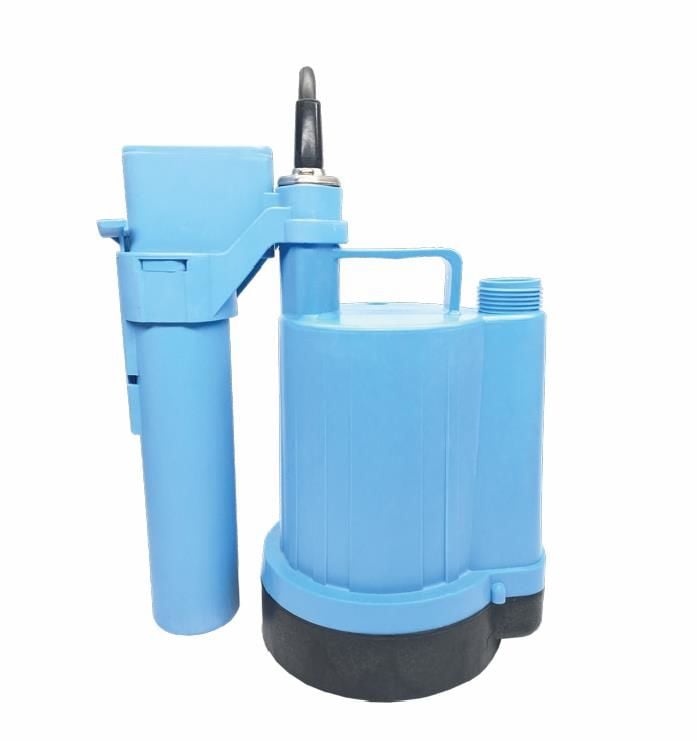

WATER SOUND M-100A PVC Drain Pump Automatic 100 W

WATER SOUND M-100A PVC Drain Pump Automatic 100 W

Brand
Stock Code
2332501M100A001
Warranty Period
24 Month
Price
132,00 USD + VAT
%15
112,20 USD
132,00 USD
Installments starting from 112,20 USD!

WATER SOUND M-100A PVC Drain Pump Automatic Switch 100 Watt

Reliable Automation in Water Drainage with ORFA Industrial Assurance

Offering an effective solution against flooding in domestic and industrial applications, the drain pump delivers reliable performance in challenging environments such as basements, pools and construction sites. Manufactured with the quality of the WATER SOUND M-100A brand, this 100 W drain pump automatically discharges water thanks to its automatic switch mechanism, without human intervention. The durable PVC body ensures long service life even when in contact with seawater and corrosive liquids, and the drain pump can be safely used up to a maximum submersion depth of 5 meters. With a plastic impeller, lightweight and easy to transport, the professional drain pump features near-zero suction operation and can pick up small particles down to 2 mm. Equipped with a 10-meter high-quality cable, this drain pump offers a maximum flow rate of 5.5 m³/h and a head of 6.5 meters, making it ideal for medium-scale water drainage. Available from ORFA Industrial stock, this drain pump operates at 220 V AC standard mains voltage and is designed for long-term operation. With the automatic switch, the drain pump independently turns the circuit on and off when the water level reaches a set point, ensuring energy savings. Choose this drain pump for flood risk in basements or pool drainage; it can handle liquids with particle sizes up to 2 mm. Select a professional drain pump to permanently solve water damage problems and keep your work area dry.

Drain Pump Technical Specifications

Model Information: WATER SOUND M-100A PVC Automatic Drain Pump
Motor Power: 100 Watt / 0.13 kW
Operating Voltage: 220 Volt AC / 50 Hz (Single Phase)
Maximum Head: 6.5 Meters (MWL)
Maximum Flow Rate: 5.5 m³/hour (91.6 l/min)
Maximum Submersion Depth: 5 Meters (HS)
Pump Body Material: Durable PVC (Corrosion Resistant)
Impeller Material: Plastic (Lightweight, High Efficiency)
Outlet Diameter: 1 Inch (25 mm)
Cable Length: 10 Meters (Reinforced Insulation)
Maximum Particle Size: 2 mm (Fine Sediment and Sand)
Switch System: Automatic Switch (Self-Actuated)
Fluid Temperature Range: 0°C to +40°C
Protection Class: IP68 (Total Watertightness)
Insulation and Classification: Class F / IP68
Operating Regime: S1 (Continuous Operation)

Performance Data (Flow / Head)

Flow (m³/h) 0.00 1.10 2.75 4.13 5.50
Head (m) 6.5 6.2 5.4 3.9 0.0

Key Advantages of the Drain Pump

  • Automatic Switch: The drain pump monitors the water level itself, eliminating manual intervention.
  • PVC Body: The drain pump offers full resistance to seawater and chemical liquids.
  • Near-Zero Suction: The drain pump can pick up sediment down to 2 mm from the bottom, operating in the toughest conditions.
  • 10 Meter Cable: Thanks to the long cable, the drain pump ensures drainage from depth.

Application Areas of the Drain Pump

  • Use of drain pump in basements and sub-level pump stations.
  • Emergency drain pump solutions in flood-prone areas.
  • Reliable drain pump support for pool emptying and maintenance.
  • Drain pump application for wastewater drainage in construction sites and mining.

Drain Pump Technical Support and Supply

For installation and spare parts of the WATER SOUND M-100A drain pump, contact ORFA Industrial expert team.

Discover safe management and long-lasting use in water drainage with WATER SOUND drain pump solutions.
