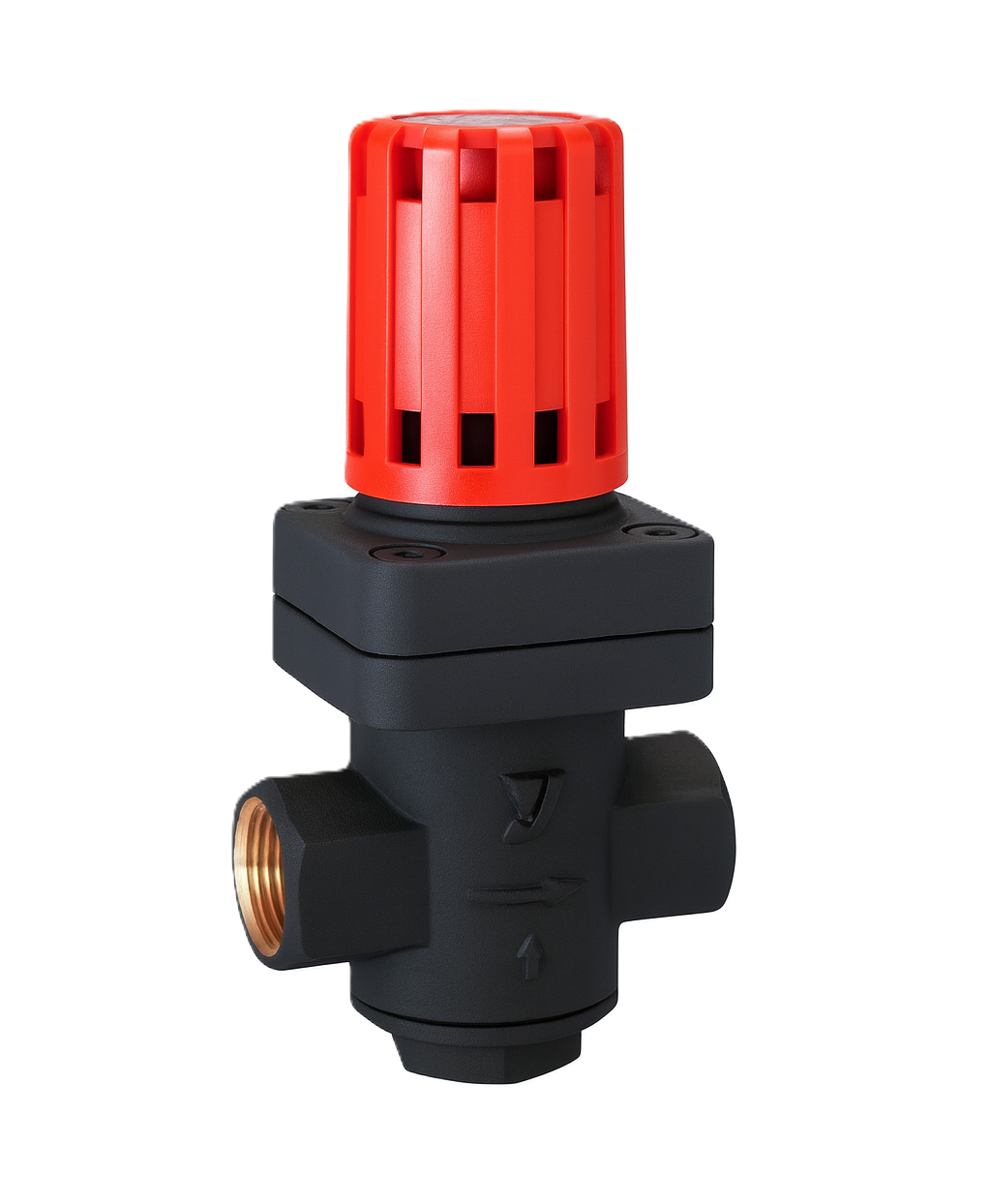

YOSHITAKE AGD-30 Direct Acting Pressure Reducer 3.5-10 Bar 1/2''
YOSHITAKE AGD-30 is a direct acting pressure reducing valve model used in steam and compressed air lines in industrial facilities. Thanks to its compact structure and reliable performance, it ensures that the desired outlet pressure in the systems is kept constant. ORFA This product, offered for sale by Endüstri Mamüller Sanayi ve Ticaret A.Ş. , stands out with its high quality and long-lasting usage advantage.
Direct Acting Pressure Reducer Working Principle
AGD-30 works with a spring mechanism and diaphragm system that controls the difference between inlet pressure and outlet pressure. The incoming pressure is balanced against the spring force and thus the desired output pressure is precisely adjusted. It works stably even under sudden pressure fluctuations.
In cases where more than 10/1 pressure reduction is required, it is recommended to use two valves connected in series.
For safer and more efficient results, it is recommended to add a steam separator to the inlet line and a safety valve to the outlet line.
Specification
Model: YOSHITAKE AGD-
Connection Size: /2''
Operating Pressure Range: .5 – 10 bar
Connection Type: Thread
Pressure Class: PN
Inlet Pressure: bar
Output Pressure:
A Spring: .2 – 1 bar
Spring B: .5 – 4 bar
C Spring: .5 – 10 bar
Maximum Operating Temperature: °C
Body: Cast Bronze
Shaft and Seat: Stainless Steel
Bellow: Phosphor Bronze
Fluids Used: Steam and Compressed Air
Direct Acting Pressure Reducer Usage Areas
Textile industry
Energy production facilities
Refineries and petrochemical industry
Food processing facilities
Paper mills
Chemical industry
Shipbuilding industry
All industrial processes using steam and compressed air
YOSHITAKE AGD-30 Direct Acting Pressure Reducer is one of the most suitable solutions for industrial facilities with its reliability, easy adjustment and long-lasting structure. ORFA This Direct Acting Pressure Reducer, offered for sale with the assurance of Endüstri Mamüller Sanayi ve Ticaret A.Ş. , is the ideal choice for every process that requires pressure control.
| Tooth Measurement | : | 1/2'' |
