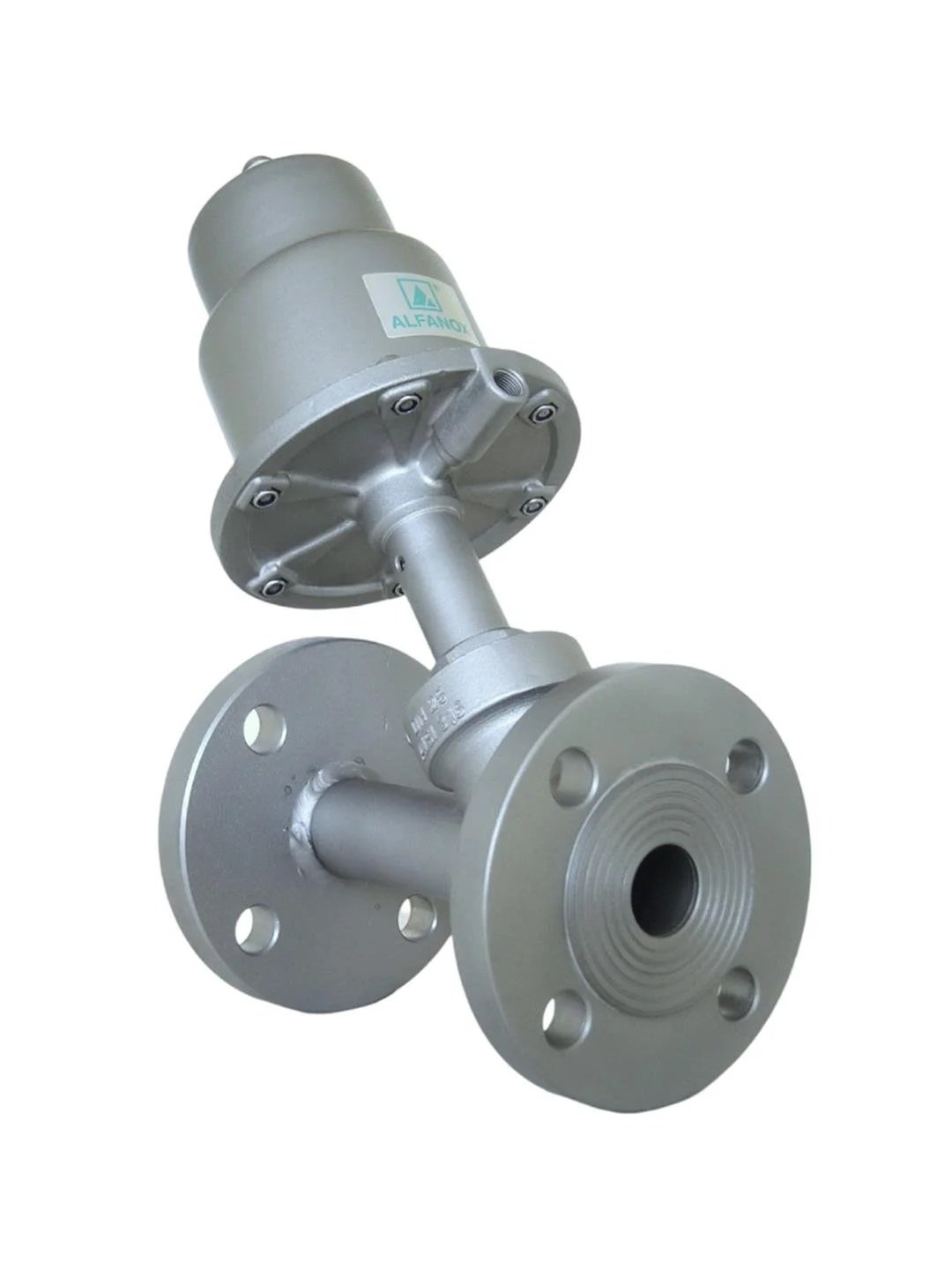

ALFANOX 301 Series Stainless Y Type Pneumatic On-Off Valve Flanged DN65 Ø125
0 - Comment / Read Comments
Category
Brand
Stock Code
301 T 065 125 KD 23 4
Warranty Period
24 Month
ALFANOX 301 Series Stainless Y Type Pneumatic On-Off Valve - Flanged Ø125 DN
ORFA The high performance solution offered by Endüstri Mamüller Sanayi ve Ticaret A.Ş . for your industrial processes: ALFANOX 301 Series Stainless Y Type Pneumatic On-Off Valve. Designed to provide maximum efficiency and tightness even under harsh operating conditions, this Pneumatic On-Off Valve offers complete control and reliability in your fluid, steam and gas lines.
The innovative Y-type body design minimizes flow resistance, providing a higher flow coefficient (Kv) and significantly reducing pressure losses. In this way, it increases the energy efficiency of your systems. The fast on-off feature provided by the pneumatic actuator responds instantly to the instant needs of the processes.
Pneumatic On-Off Valve Features
Superior Material Quality: The body is made of high quality stainless steel. In this way, it provides a long service life by showing excellent resistance to corrosion, chemicals and high temperatures.
High Performance Design: Angled "Y" type body structure offers much lower pressure loss and higher flow capacity compared to standard globe valves. This makes it particularly ideal for steam and high-velocity fluid applications.
Reliable Control: Equipped with a pneumatic actuator, the Pneumatic On-Off Valve provides a fast and sharp on-off action. It fully complies with the security and automation requirements of your system with Normally Closed (NK) as standard, Normally Open (NA) or Double Acting (ÇE) as an option.
Wide Area of Application: With its wide fluid temperature range between −10°C and 220°C and maximum working pressure capacity up to 40 bar, it can be used safely even in the harshest industrial environments.
Easy Installation and Flexibility: Flanged connection type allows a solid and leak-free installation to the pipeline. It offers installation flexibility as it can be mounted in any position, horizontally or vertically, provided that it is in the direction of the arrow.
Pneumatic On-Off Valve Technical Information
Model: ALFANOX 301 Series
Body Type: Y Type, Angled
Connection Type: Flanged
Size: Ø125 DN
Maximum Working Pressure: bar
Working Pressure (Δp): Please contact us for pressure-to-diameter chart.
Control Type: Standard: Normally Closed (NK)
Control Pressure: Minimum 5 bar - Maximum 10 bar (Options available for lower pressures)
Fluid Temperature: −10°C / 220°C
Control Air Temperature: −10°C / 60°C
Mounting Position: Any position in the direction of the arrow, horizontal or vertical
Pneumatic On-Off Valve Usage Areas
Chemical and petrochemical facilities
Food processing and hygienic production lines
Water purification and distribution systems
Steam lines and heating systems
Textile, dye and paper industries
Automatic filling and dosing systems
ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş. As , we are proud to offer reliable and high-quality valve solutions that add value to your processes. ALFANOX You can contact us to get more information about the 301 Series Pneumatic On-Off Valve and our other products or to request a quote for your special application needs.
| Diameter-Dn | : | DN 65 |
| Body | : | Stainless |
