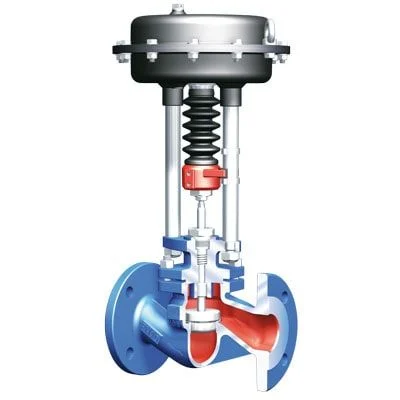

ARI-STEVI 12.440 Pneumatic Proportional Control Valve Dn32 PN16
%55 Discounted Product
0 - Comment / Read Comments
2.593,20 EUR
1.166,94 EUR
Brand
Stock Code
708A030200904
Warranty Period
24 Month
Price
2.161,00 EUR + VAT
* Installments starting from 220,47 EUR!
Add to Cart
ARI-STEVI 12.440 Pneumatic Proportional Control Valve DN32 PN16 Precise Proportional Control
Min. Air Supply Pressure: 1.4 bar - Shut-off Pressure: 7.8 bar, Signal Range: 0.4 - 1.2 bar
The ARI-STEVI 12.440 Pneumatic Proportional Control Valve is designed for applications requiring precise flow control in industrial processes. Its DN32 nominal diameter and PN16 pressure rating make it ideal for medium to large-diameter pipelines. The EN-JL1040 cast iron body and AISI 420 stainless steel shaft, disc, and seat provide reliable and long-lasting performance, even at temperatures up to 300°C. The PTFE-V ring seal provides effective sealing up to 220°C.
The proportional pneumatic actuator provides progressive flow control and allows for more precise adjustments to the process line. Class D leakage rate (DIN EN 12266) combined with high flow accuracy maximizes efficiency.
Technical Specifications:
Min. Air Supply Pressure: 1.4 bar - Shut-off Pressure: 7.8 bar, Signal Range: 0.4 - 1.2 bar
The ARI-STEVI 12.440 Pneumatic Proportional Control Valve is designed for applications requiring precise flow control in industrial processes. Its DN32 nominal diameter and PN16 pressure rating make it ideal for medium to large-diameter pipelines. The EN-JL1040 cast iron body and AISI 420 stainless steel shaft, disc, and seat provide reliable and long-lasting performance, even at temperatures up to 300°C. The PTFE-V ring seal provides effective sealing up to 220°C.
The proportional pneumatic actuator provides progressive flow control and allows for more precise adjustments to the process line. Class D leakage rate (DIN EN 12266) combined with high flow accuracy maximizes efficiency.
Technical Specifications:
Model: Fig. 12.440
Nominal Diameter: DN32
Pressure Class: PN16
Connection Type: Flanged
Body: EN-JL1040 Cast Iron
Cover: EN-JS1049 Ductile Iron
Shaft, Valve and Seat Surface: AISI 420 (1.4021+QT) Stainless Steel
Sealing Element: PTFE-V-Ring (Max. 220 °C)
Maximum Operating Temperature: 300 °C
Leakage Rate: Class D (DIN EN 12266)
Actuator Type: ARI-DP 32
Safety Position: Normally Open / Normally Closed
Signal Range: 0.4 - 1.2 bar
Standard Compliance: DIN IEC 60534-6
Areas of Use:
Areas of Use:
Steam and hot water systems
Chemical and petrochemical processes
Food and pharmaceutical production lines
Power and heat plants
HVAC systems
Process automation lines
Pressure and flow regulation systems
ORFA Industrial Products Industry and Trade Inc. offers solutions to industrial needs with high-quality automation products. Working with proven brands of proven reliability , ORFA Industrial develops specialized product supply solutions for every sector with its customer-focused service approach. The ARI-STEVI 12.440 model is also part of this commitment to quality.
ORFA Industrial Products Industry and Trade Inc. offers solutions to industrial needs with high-quality automation products. Working with proven brands of proven reliability , ORFA Industrial develops specialized product supply solutions for every sector with its customer-focused service approach. The ARI-STEVI 12.440 model is also part of this commitment to quality.
| Diameter-Dn | : | DN 32 |
| Pressure Class | : | PN 16 |
