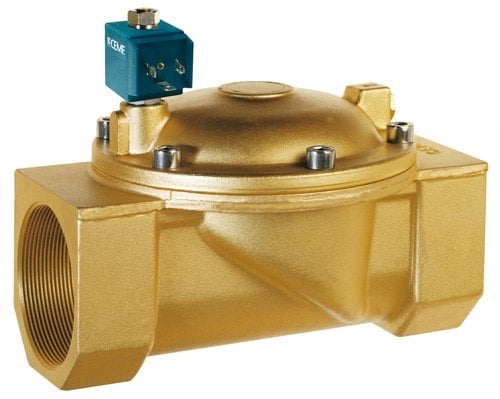

CEME 8719 2'' Normally Open Solenoid Valve
%20 Discounted Product
0 - Comment / Read Comments
376,20 EUR
300,96 EUR
Category
Brand
Stock Code
C308719
Warranty Period
24 Month
Price
313,50 EUR + VAT
* Installments starting from 300,96 EUR!
Add to Cart
CEME 8719 2'' Normally Open Solenoid Valve - Reliable Flow Control
The CEME General Purpose Normally Open Solenoid Valve, offered by ORFA Industrial Products Industry and Trade Inc. , offers a high-performance and reliable solution for modern industrial automation systems. Operating using a magnetic field generated by electric current, these valves are ideal for precisely controlling liquid and gas flows. Directing fluids such as water, air, oil, and gas, the Normally Open Solenoid Valve ensures safe and efficient management of industrial processes. Its compact and durable design ensures long-lasting performance across a wide range of applications.
The CEME General Purpose Normally Open Solenoid Valve, offered by ORFA Industrial Products Industry and Trade Inc. , offers a high-performance and reliable solution for modern industrial automation systems. Operating using a magnetic field generated by electric current, these valves are ideal for precisely controlling liquid and gas flows. Directing fluids such as water, air, oil, and gas, the Normally Open Solenoid Valve ensures safe and efficient management of industrial processes. Its compact and durable design ensures long-lasting performance across a wide range of applications.
The design of these Normally Open Solenoid Valves ensures uninterrupted operation, even under high pressure. Suitable for both commercial and industrial applications, these Normally Open Solenoid Valves are characterized by their energy efficiency and low maintenance requirements. They are an excellent choice for companies looking to reduce operational costs while increasing system reliability.
Normally Open Solenoid Valve Technical Specifications:
Type: Pilot Operated, 2/2 Way, Normally Open (NO)
Serial: 8721
Pressure Range: 0.3-10 Bar
Connection Dimensions: 3''
Gasket Material: NBR
Internal Parts: Stainless Steel
Body Material: Brass
Application Fluids: Water, Air, Light Oils
Fluid Temperature: Maximum 90°C
Ambient Temperature: Maximum 80°C
Electrical Connection: 6.3 x 0.8 quick-connect terminal - UNI ISO 6952
Insulation Class: H
Coil Voltage: 100-120 VAC 60Hz
Coil Power: 15 VA
Mounting Position: Mounting in any position (Upside down mounting is not recommended)
Approvals: CE; UL
Normally Open Solenoid Valve Working Principle
Coil Generates a Magnetic Field: The coil, the heart of a normally open solenoid valve, is formed by winding a conducting wire. When an electric current is applied to this coil, a magnetic field is created around it. This magnetic field moves the plunger inside the valve.
Plunger Movement: The core, moved by the magnetic field, opens or closes the valve. When electricity is applied to the coil, the core is pulled upward, and this movement opens the valve's orifice (hole), allowing fluid to flow. When the electricity is removed, the spring force returns the core to its original position, closing the valve and stopping the flow. This simple yet effective mechanism allows control of liquids or gases.
Pilot-Operated Solenoid Valve: Pilot-operated solenoid valves use fluid pressure in the line to open or close the valve. In this type of valve, instead of the core directly controlling the main fluid line, a control chamber is located in the valve's upper chamber. The core controls fluid flow through a small opening in the control chamber. The control chamber increases or decreases pressure on the main diaphragm. When pressure decreases, the diaphragm lifts, opening the main valve opening and allowing fluid in. When pressure increases, the diaphragm closes, stopping flow. This system provides high fluid control with low energy consumption.
Normally Open Solenoid Valve (NO): When the coil is not energized, the valve is open, allowing fluid flow. When energized, the valve closes, stopping fluid flow.
Advantages of Normally Open Solenoid Valve:
Fast Response: Normally Open Solenoid Valves respond instantly to electrical signals and can open and close in a very short time. This provides reliable control in fast processes.
Reliable Operation: Magnetic field operated valves are more resistant to mechanical wear and have a longer life.
Energy Efficiency: Pilot-operated models allow control of large fluid masses with lower energy consumption.
Easy Installation and Maintenance: Thanks to their compact structure, they can be easily installed even in narrow spaces and require little maintenance.
Normally Open Solenoid Valve Usage Areas:
Our Normally Open Solenoid Valves are specifically designed for use in various industrial applications requiring precise control of water and gas flow. Our Normally Open Solenoid Valves offer effective results in a variety of applications, including water treatment systems, HVAC systems, pneumatic control mechanisms, and automation solutions. An ideal component for systems that prioritize energy efficiency and safety, these solenoid valves are durable and will provide many years of trouble-free operation.
At ORFA Industrial Products , we offer high-quality, reliable solutions. Our products are designed to both reduce operating costs and optimize performance. Our reliable, durable, and certified Normally Open Solenoid Valves offer the ideal solution for maximizing the efficiency of your systems.
