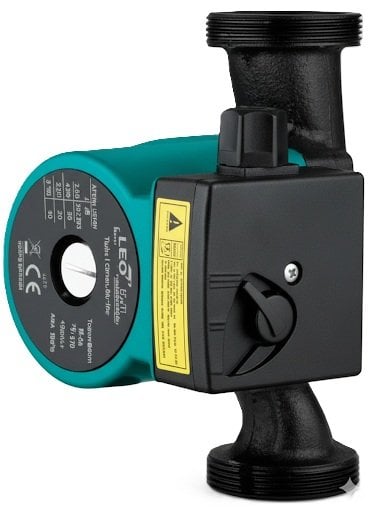

Leo LRP 25-80/180 Circulation Pump – Efficient Solution, Superior Performance
The Leo LRP 25-80/180 Circulation Pump, offered by ORFA Industrial Products Industry and Trade Inc. , is an advanced, efficient, energy-saving circulation pump that provides circulation in heating and cooling systems. It transports water to the desired areas, ensuring consistent flow, particularly in heating, cooling, and hot water installations. This functionality allows the circulation pump to increase comfort while saving energy. Circulation pumps, due to their physical and chemical properties, offer high performance in the transfer of clean water and similar liquids, making them a reliable choice in a variety of industrial and commercial applications.
This Circulation Pump offers an effective solution not only for heating and cooling, but also for everyday applications such as solar energy systems, watering tanks, garden irrigation, and increasing water pressure. Its advanced technology allows you to achieve efficient results with low energy consumption.
Circulation Pump Technical Specifications:
Model: LRP25 80/180
Voltage/Frequency: 220V/50Hz
Power: 200 W
Inlet/Outlet Diameter: 28 mm
Connection Diameter: 1 1/2"
Maximum Height: 7.1 Mss
Maximum Flow: 7.1 m³/h
Flow Capacity (lt/min): 120/100/60
The Circulation Pump's body is made of durable bronze or stainless cast iron, while the pump gear is made of noryl material, which can withstand temperatures up to 150°C. The highly durable 99% alumina ceramic shaft operates reliably over a wide temperature range (2°C to 110°C). The three-speed motor is customized to meet all fluid circulation needs.
Circulation Pump Motor Features:
Insulation Class: H
Protection Class: IP 44
Winding Material: Copper
Motor Speed: Three-stage adjustable speed
Circulation Pump Working Principle
1. Rotation of the Pump Impeller: At the heart of circulation pumps is an impeller that moves the liquid. This impeller is turned by an electric motor, which moves the liquid in a specific direction. The rotation of the impeller forces the liquid from the inlet under high pressure to the outlet, thus creating a continuous flow within the system. This movement allows water or similar liquids to circulate at a constant speed, maintaining a uniform flow throughout the system.
2. Motor and Speed Adjustment: Circulation pumps typically have a motor that can operate at three different speed settings. These speed settings help regulate the fluid flow rate and ensure optimal operation according to system needs. Low speeds save energy and reduce system load, while high speeds are preferred when rapid fluid circulation is required. The high-performance copper windings and ceramic bearings used in circulation pumps prevent the motor from overheating, ensuring long-lasting and trouble-free operation.
3. Pressure and Flow Control: The circulation pump circulates the fluid within the system using the difference between inlet and outlet pressures. This pressure difference is the primary factor determining the fluid flow rate. Circulation pumps, with their high-pressure capacity, enable the fluid to reach the desired heights. This feature is crucial for distributing hot water evenly to all radiators in heating systems and for ensuring that cool fluid reaches the entire area uniformly in cooling systems.
4. Heat Transfer and Energy Efficiency: Circulation pumps operate continuously to regulate ambient temperature, particularly in heating and cooling systems. In such systems, the circulation of hot and cold water in a specific cycle ensures efficient energy transfer. The circulation pumps sold by ORFA are designed to increase energy efficiency, offering maximum performance with minimal energy consumption. This helps maintain the desired temperature while minimizing energy loss.
5. Quiet and Efficient Operation: Circulation pumps are designed to operate with minimal vibration in the system. This not only increases user comfort but also ensures quiet and uninterrupted system operation. This low noise level, combined with the pumps' high-performance motor structure, ensures quiet and stable operation even during extended periods of use.
6. Protection and Safety Mechanisms: Circulation pumps feature features such as IP44 protection class, which protects against water leaks, overpressure, and electrical problems. These features not only extend the pump's lifespan but also ensure safe operation. Furthermore, the anti-rust cast iron and durable noryl material used in the pump body are resistant to high temperatures, allowing the pump to operate safely even in the most challenging conditions.
Circulation Pump Usage Areas:
Circulation pumps are designed to efficiently circulate hot or cold water in HVAC systems (heating, cooling, and air conditioning). They also meet the high temperature and high flow requirements of residential and industrial facilities, making them an ideal solution for businesses. They are also suitable for both residential and commercial applications such as garden irrigation, water pressure boosting, and well extraction.
This versatile Circulation Pump is specifically designed for both domestic and industrial use, and its user-friendly design allows for easy installation and maintenance. This Circulation Pump solution, offered by ORFA Industrial, combines high durability, efficiency, and comfort, making it the first choice for professionals seeking a reliable water circulation solution.
High Efficiency Circulation Pump Solutions with ORFA Industrial - Strong Performance, Durable Design!
| Operating Voltage | : | 220 Volt Ac |
