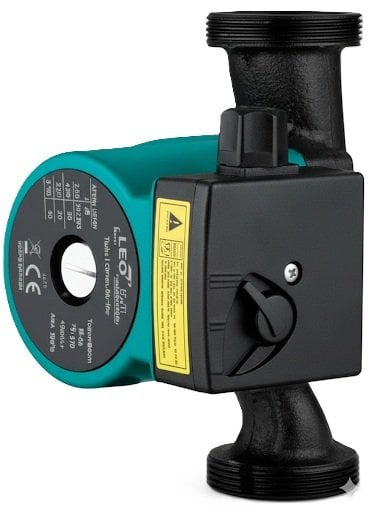

Leo LRP 32-70/180 Circulation Pump – Efficient Solution, Superior Performance
The Leo LRP 32-70/180 Circulation Pump, offered by ORFA Industrial Products Industry and Trade Inc. , enables energy-efficient use by circulating liquids in closed-circuit systems. It is an advanced circulation pump. It transports water to the desired areas, ensuring consistent flow, particularly in heating, cooling, and hot water installations. This functionality saves energy and increases comfort. Circulation pumps are a reliable choice for a variety of industrial and domestic applications, offering high performance in the transfer of clean water and similar liquids.
This Circulation Pump allows you to obtain efficient results with low energy consumption thanks to its advanced technological structure.
Circulation Pump Technical Specifications:
Model: LRP32 70/180
Voltage/Frequency: 220V/50Hz
Power: 150 W
Inlet/Outlet Diameter: 32 mm
Connection Size: 1 1/2"
Maximum Height: 5.5 Mss
Maximum Flow: 4 m³/h
Flow Capacity (lt/min): 67/50/37
The pump body is made of durable cast iron, while the pump impeller is made of noryl material that can withstand temperatures up to 150°C. The highly durable 99% alumina ceramic shaft operates reliably over a wide temperature range (2°C to 110°C). The three-speed motor is customized to meet all fluid circulation needs.
Circulation Pump Motor Features:
Insulation Class: H
Protection Class: IP 44
Winding Material: Copper
Motor Speed: Three-stage adjustable speed
Circulation Pump Working Principle
1. Rotation of the Circulation Pump Impeller: At the heart of circulation pumps is an impeller that moves the liquid. This impeller is turned by an electric motor, which moves the liquid in a specific direction. The rotation of the impeller draws the liquid from the inlet under high pressure and pushes it toward the outlet, creating a continuous flow within the system. This movement allows water or similar liquids to circulate at a constant speed, maintaining a uniform flow throughout the system.
2. Motor and Speed Adjustment: Circulation pumps typically have a motor that can operate at three different speed settings. These speed settings help regulate the fluid flow rate and ensure the pump operates at the most appropriate speed for the system's needs. Low speeds save energy and reduce system load, while high speeds are preferred when rapid fluid circulation is required. The high-performance copper windings and ceramic bearings used in circulation pumps prevent the motor from overheating, ensuring long-lasting and trouble-free operation.
3. Pressure and Flow Control: The circulation pump circulates the liquid within the system using the difference between inlet and outlet pressures. This pressure difference is the primary factor determining the liquid's flow rate. Circulation pumps, with their high-pressure capacity, enable the liquid to reach the desired heights. This feature of the circulation pump is crucial for distributing hot water evenly to all radiators in heating systems and for uniformly delivering cool liquid throughout the entire area in cooling systems.
4. Heat Transfer and Energy Efficiency: Circulation pumps operate continuously to regulate ambient temperature, particularly in heating and cooling systems. In such systems, the circulating hot or cold water in a specific cycle ensures efficient energy transfer. The Leo LRP 32-70/180 Circulation Pump, sold by ORFA , was developed to increase energy efficiency, offering maximum performance with minimal energy consumption. This helps maintain the desired temperature while minimizing energy loss.
5. Quiet and Efficient Operation: Circulation pumps are designed to operate with minimal vibration in the system. This not only increases user comfort but also ensures quiet and uninterrupted system operation. This low noise level, combined with the Circulation Pump's high-performance motor, ensures quiet and stable operation even during extended periods of use.
6. Protection and Safety Mechanisms: Circulation pumps feature features such as IP44 protection class, which protects against water leaks, overpressure, and electrical problems. These features not only extend the pump's lifespan but also ensure safe operation. Furthermore, the anti-rust cast iron and durable noryl material used in the pump body are resistant to high temperatures, allowing the pump to operate safely even in the most challenging conditions.
Circulation Pump Usage Areas:
Circulation pumps are designed to efficiently circulate hot or cold water in HVAC systems (heating, cooling, air conditioning). They also offer an ideal solution for businesses that meet the high temperature and high flow requirements of domestic and industrial facilities.
This versatile Circulation Pump is specifically designed for both domestic and industrial use, and its user-friendly design allows for easy installation and maintenance. This Circulation Pump solution, offered by ORFA Industrial, combines high durability, efficiency, and comfort, making it the first choice for professionals seeking a reliable water circulation solution.
High Efficiency Circulation Pump Solutions with ORFA Industrial - Strong Performance, Durable Design!
| Voltage | : | 220 Volt Ac |
| Length (mm) L: | : | 180 |
