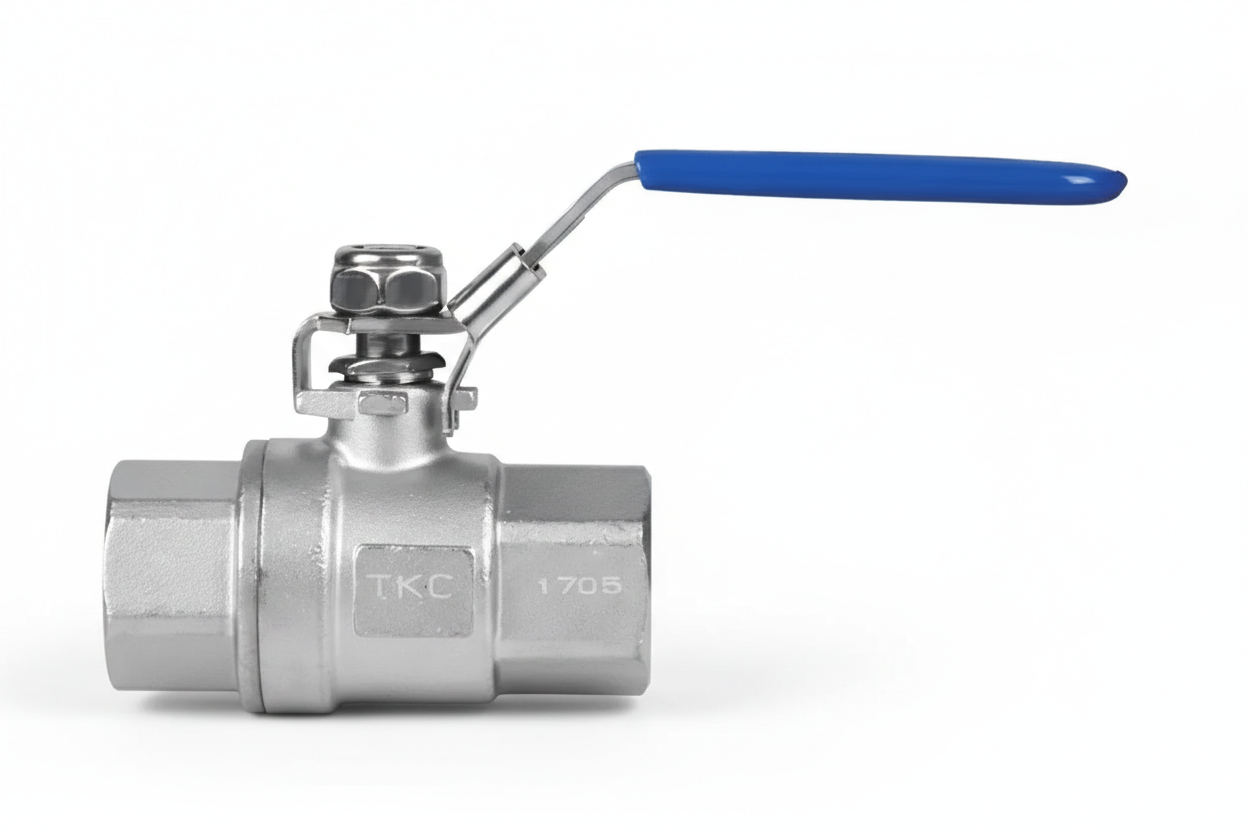

Stainless Steel Ball Valve 2P 1/2'' AISI 316
Industrial Sealing Solution for High Pressure and Corrosive Environments
The Stainless Steel Ball Valve 2P 1/2'' (DN15) is manufactured from AISI 316 grade stainless steel for controlling aggressive fluids and ensuring safety in high-pressure systems. Its two-piece (2P) body design allows for easy installation and maintenance, while its compact design provides maximum efficiency in confined spaces.
Thanks to its PTFE (Teflon) seal structure, it exhibits excellent resistance to acids, bases, and various chemicals. Its full-bore design minimizes fluid resistance, preventing pressure loss in the system and enabling high-flow rate transfers.
Durability and Performance Parameters
This valve, with its PN63 (63 Bar) pressure rating, is reliably used in heavy-duty applications where standard valves are insufficient. Its wide operating temperature range of -25°C to +150°C ensures stable performance in both cryogenic and high-temperature process lines.
Technical Specifications
Application Areas
- Chemical, pharmaceutical, and food processing plants.
- Shipbuilding and seawater installations.
- High-pressure air and gas lines.
- Cosmetic and hygiene production lines.
- Transfer of hot water, steam, and corrosive fluids.
Advantages of AISI 316 Ball Valves
– Maximum Corrosion Resistance: AISI 316 steel provides complete protection against rust.
– High Pressure Safety: Safe operation with a working capacity of 63 bar.
– Low Torque: Easy opening and closing thanks to the precisely machined ball.
– PTFE Sealing: Chemical-resistant, leak-proof gasket structure.
– Easy Maintenance: Two-piece housing for quick servicing and a long service life.
| Body Material | : | Stainless |
| Pressure Class (PN) | : | PN 63 |
| Thread Size | : | 1/2'' |
