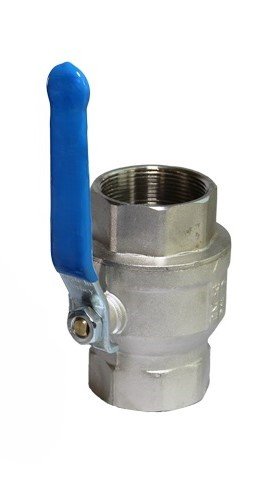

STANDART Brass Ball Valve - Eco PN10 4"
Economical and Effective Solution for Reliable Flow Control
ORFA STANDART Brass Ball Valve - Eko PN10 4", offered for sale by Endüstri Mamüller Sanayi ve Ticaret A.Ş , is a valve solution that offers high performance, economical and long-lasting flow control in plumbing systems. It is especially preferred in water, air and neutral fluid lines with its Brass body and durable sphere structure. Thanks to its simple and practical use, it accelerates the maintenance processes of installations and increases system security.
Ball Valve Working Principle
Ball valves start or stop the flow through a disc with a spherical structure inside. STANDART This Eco series valve operates on and off with a quarter turn (90°) rotation movement. It is user-friendly thanks to the lever mechanism attached to the handle. Thanks to its full-bore design, it provides maximum flow efficiency with minimum pressure loss.
Specification
Valve Type: Brass ball valve
Diameter: "
Compressive Strength : PN
Body Material: CW617N Brass
Sphere Material: Chrome plated brassinç
Connection Type: Thread (BSP)
Cover & Handle: Brass / Vinyl coated steel handle
Gasket Material: PTFE (Teflon)
Temperature Resistance: -10°C / +110°C
Flow Type: Full bore
Usage: On/off control
Areas of Use
Clean water installations
Light industrial installation
Indoor plumbing
Compressed air systems
Heating-cooling systems
Agricultural irrigation lines
Swimming pool circuits
STANDART Brass Ball Valve - Eko PN10 4" is a product that stands out in the product range of ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş with its affordable price, durable structure and ease of use. It offers an economical and reliable choice with its wide application area and long service life.
| Tooth Measurement | : | 4'' |
| Body | : | Brass |
| Pressure Class | : | PN 10 |
