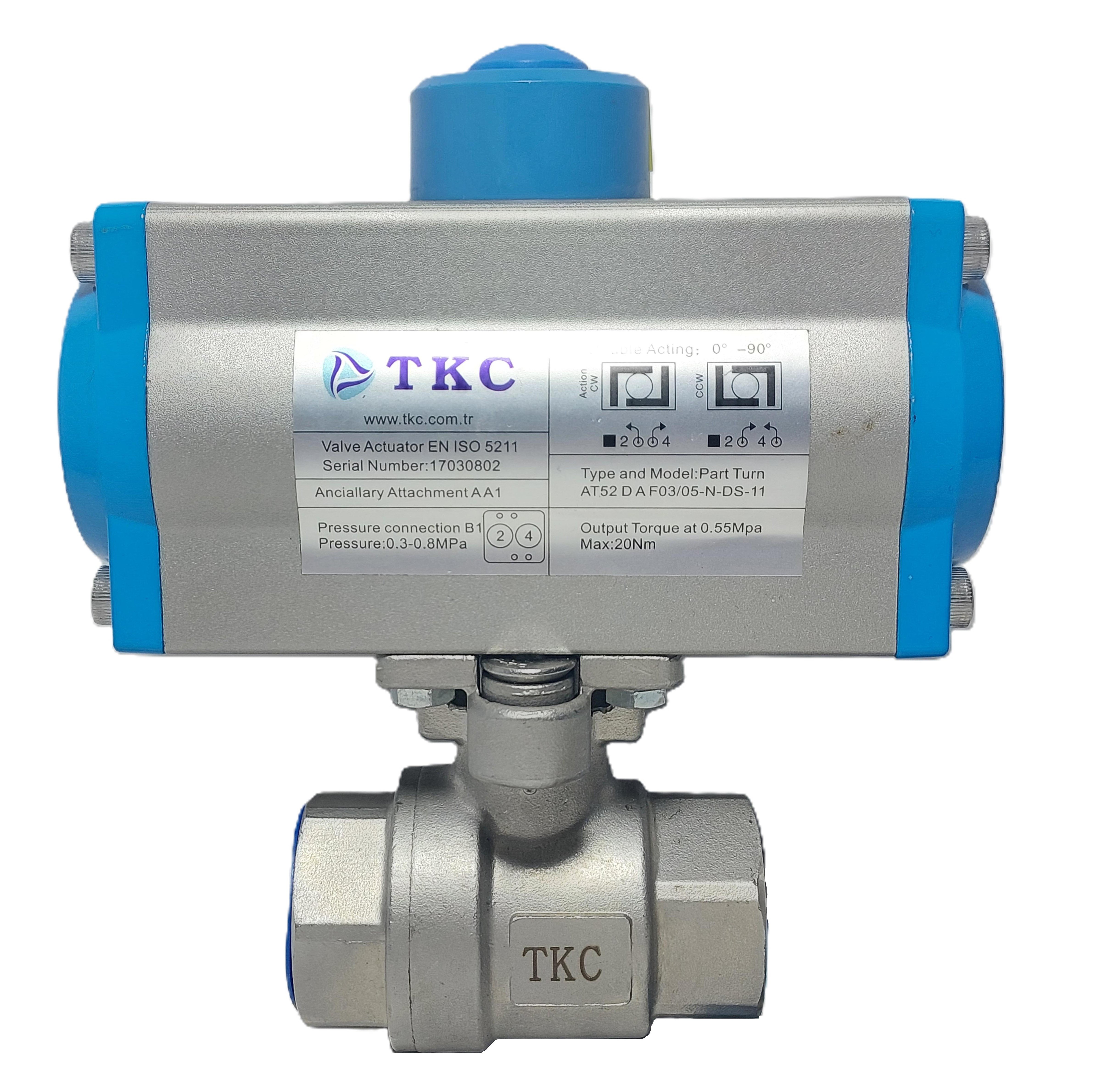

TKC Double Acting Stainless Ball Valve with Pneumatic Actuator 1/2''
0 - Comment / Read Comments
Category
Brand
Stock Code
TKC6721P-015DA
Warranty Period
24 Month
TKC Double Acting Stainless Ball Valve with Pneumatic Actuator 1/2''
ORFA TKC Double Acting Pneumatic Actuated Stainless Ball Valve 1/2'', offered for sale by Endüstri Mamüller Sanayi ve Ticaret A.Ş. , is a valve solution that provides high performance, durability and automation in industrial fluid control systems. While its stainless steel body offers long-lasting use and superior resistance to corrosion, it is fully compatible with automatic control systems thanks to its pneumatic actuator structure.
Double Acting Stainless Ball Valve with Pneumatic Actuator Working Principle
This Double Acting Pneumatic Actuated Stainless Ball Valve works with double acting pneumatic actuator. That is, compressed air is used for opening and closing operations. In this way, the opening/closing speed of the valve can be controlled, system security is increased and it can be integrated into industrial automation infrastructures without the need for manual intervention. The ball valve mechanism ensures the transmission of fluid with minimum pressure loss thanks to its full passage feature.
Technical Specifications
Ball Valve Features
Body: AISI 304 Stainless Steel
Sphere: AISI 304 Stainless Steel
Maximum Operating Temperature: °C
Connection Type: Thread (BSPP)
Connection Size : 1/2''
Maximum Working Pressure: PN
Structure: Piece Design
Actuator Features
Actuator Type: Double Acting Pneumatic Actuator
Body: Aluminum Extrusion
Valve Connection : TS EN ISO 5
Shaft : Cadmium Coated Steel
Pistons: Aluminum Casting
Sealing: Nitrile Rubber
Valve Connection: Namur
Double Acting Stainless Ball Valve with Pneumatic Actuator Usage Areas
Water and Wastewater Facilities – Safe flow control in pressurized water lines
Chemical Industry – Reliable use with its chemical resistant structure
Food and Beverage Production – Preferred thanks to its hygienic and stainless features
HVAC Systems – Flow management in heating, cooling and ventilation circuits
Energy and Process Facilities – Efficient solution in steam, gas and pressurized fluid control
Marine and Shipyards – High corrosion resistance against salt water and harsh conditions
TKC Stainless Ball Valve 1/2'' with Double Acting Pneumatic Actuator is an ideal solution for businesses that want to perform flow control in industrial facilities safely, quickly and automatically. ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş. Offered with assurance, this Double Acting Pneumatic Actuated Stainless Ball Valve provides maximum efficiency in modern industrial applications thanks to its durability and automation compatibility.
| Tooth Measurement | : | 1/2'' |
| Body | : | Stainless |
| Pressure Class | : | PN 63 |
