Pneumatic Cross

Pneumatic Cross is a critical connection element ensuring the safe and leak-free distribution of fluid in pneumatic lines requiring four-way connections. ORFA Industrial offers uninterrupted performance in your industrial automation systems with Pneumatic Cross options featuring high pressure resistance. These solutions, distinguished by their precise thread structure and corrosion-resistant material quality, increase installation efficiency by providing ease of assembly. The Pneumatic Cross models, which you can safely prefer in your industrial facilities, are presented with ORFA expertise to maintain system integrity and minimize pressure losses.

FILTER
SORT
Total 6 products

Industrial Pneumatic Cross Solutions

At points where pneumatic system lines need to be divided into four directions, the use of a Pneumatic Cross is indispensable for balanced fluid distribution. ORFA Industrial offers reliable connection solutions for plant engineers with its Pneumatic Cross product group, which adapts to demanding working conditions. These equipment extend system life by maintaining sealing performance even under high pressure. These products play a critical role, especially in automation lines, at cross-section transitions or in creating multiple outlet points. Choosing the right Pneumatic Cross is a factor that directly affects the stability of pneumatic circuits.

Pneumatic Cross Types and Application Areas

Pneumatic Cross models, manufactured in different materials and connection types according to system requirements, are offered in a wide range:

Main Types

  • Pneumatic Cross (Brass/Nickel Plated)
  • Stainless Steel Cross Models
  • Threaded Four-Way Equipment

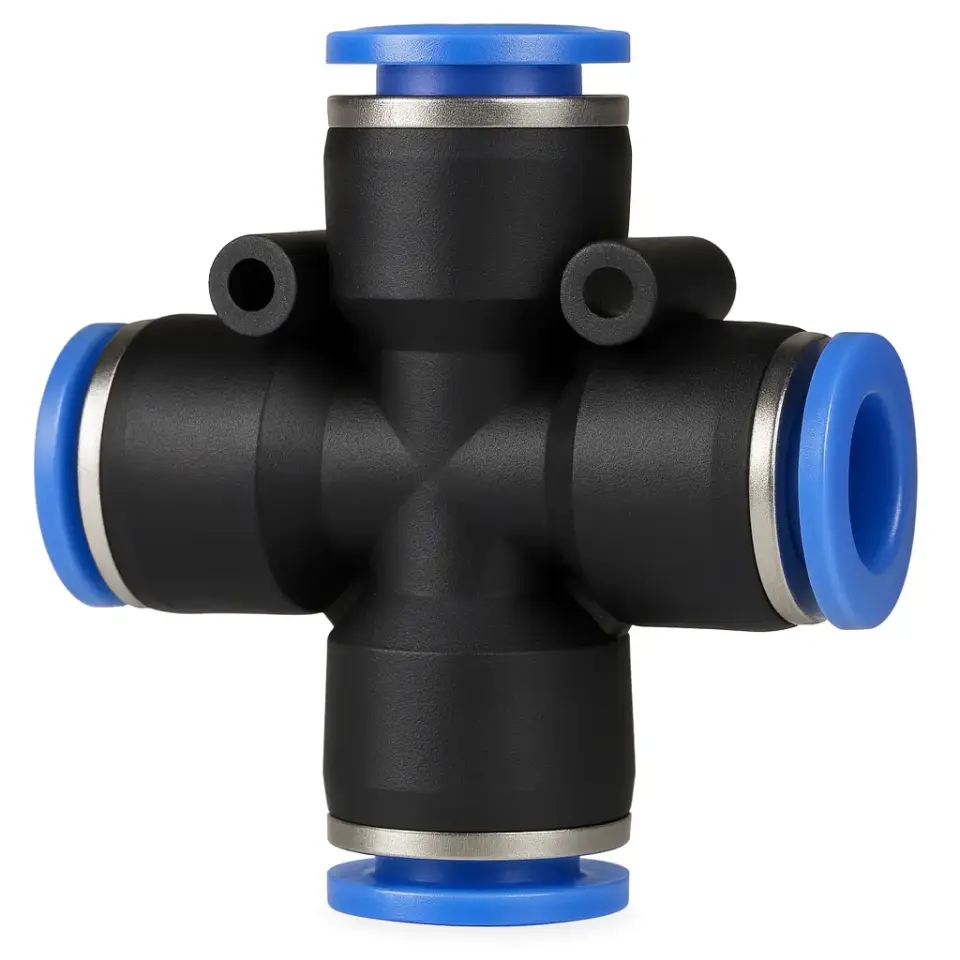

  • Push-in Type Crosses

Application Areas

  • Industrial automation and robotic lines
  • Pneumatic control panels
  • Air preparation units
  • General industrial compressed air lines

Choosing the Right Pneumatic Cross

For an efficient pneumatic system installation, the fluid pressure and ambient temperature must be considered when selecting a Pneumatic Cross. A wrongly chosen Pneumatic Cross can lead to pressure drops and leaks, increasing energy loss. ORFA Industrial helps you determine the most suitable Pneumatic Cross products for your project based on technical data. These equipment are critically important for long-term and stable system operation.

Technical Criteria

  • Connection size (G 1/8, G 1/4, etc.)
  • Working pressure rating
  • Material compatibility
  • Temperature resistance range

Operational Advantages

  • High sealing performance
  • Easy installation and removal
  • High resistance to corrosion
  • Long-lasting and durable structure

Frequently Asked Questions

What is a Pneumatic Cross and what is it used for?

A Pneumatic Cross is a connection element that provides fluid distribution at points where four different lines converge or diverge.

What should be considered when choosing a Pneumatic Cross?

When making a selection, the compatibility of the Pneumatic Cross thread size with the system and the material's resistance to working pressure must definitely be checked.

How is a Pneumatic Cross installed?

Pneumatic Cross connections, in threaded models, should be tightened using suitable sealing elements and the appropriate wrench.
