Submersible Pumps

Detailed Information on Submersible Pumps

Submersible pumps are professional pumping systems with motor and hydraulic parts fully insulated and sealed to operate underwater. Since they work submerged, they are both silent and provide high-efficiency, uninterrupted flow. They have a wide range of applications such as well water supply, drainage, flood water discharge, and wastewater transfer.

Types of Submersible Pumps

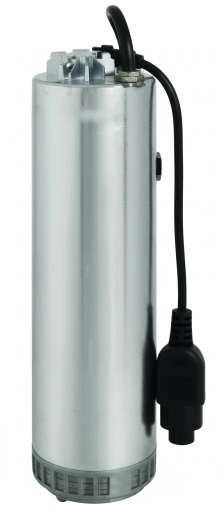

• • Clean Water Submersible Pumps – Pool, tank, waterfall, and reservoir emptying applications.
• • Sewage Submersible Pumps – Models with specially designed impellers for wastewater containing solid particles.

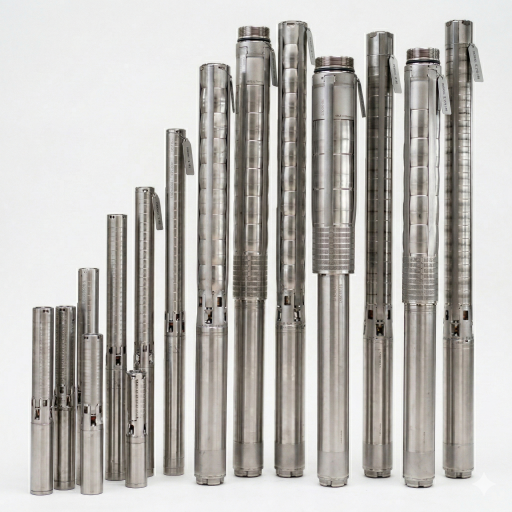

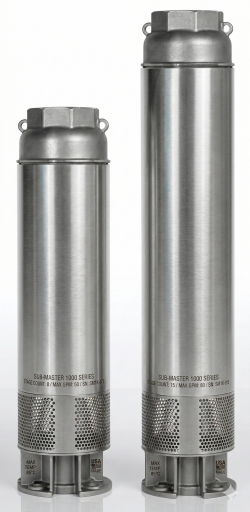

• • Well (Deep Well) Submersible Pumps – Multi-stage models for 4", 6", and 8" boreholes.

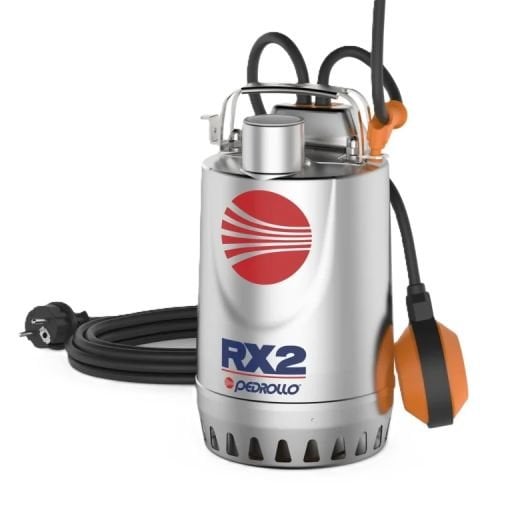

• • Drainage Submersible Pumps – Rainwater, basement flood, and surface water discharge.
• • Sludge and Wastewater Pumps – Transfer of heavily contaminated water and dense sludge.

Operating Principle

Because submersible pumps operate within the water, motor cooling is provided by the surrounding fluid, enabling continuous long-term operation. In multi-stage models, each stage adds pressure to the fluid to achieve high head heights. Sewage pumps feature open or vortex impeller designs to prevent clogging.

Material Structure

• • Body: Stainless steel, cast iron, or composite materials
• • Impeller: Noryl, stainless steel, cast iron, or bronze
• • Shaft: AISI 304 – AISI 316 stainless steel
• • Mechanical Seal: Double seal – SiC/SiC, Carbon/Ceramic

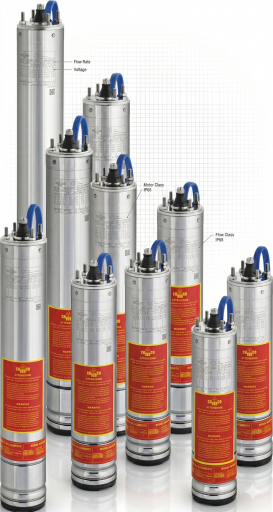

• • Motor: Hermetically sealed underwater motor (oil-filled or water-cooled)

Application Areas

• • Boreholes and deep well water supply
• • Reservoir, pool, and tank emptying
• • Sewage and wastewater discharge
• • Rainwater and drainage applications
• • Agricultural irrigation and pressurization
• • Water transfer in sloped terrains
• • Industrial liquid transfer systems

Performance Capacity

The performance ranges of submersible pumps vary widely by model:
• 1 – 500 m³/h flow rate
• 10 – 350 m head (lift)
• 0.37 – 110 kW motor power
• Well pumps feature operating capacities at depths of 100 to 400 meters. Thanks to long-lasting motor structures and high-efficiency impeller designs, they operate reliably even under harsh conditions.
