Maxtor Çift Bobin Pnömatik Valf 220V 1/8'' 52 (4V120-06-220VAC)
0 - Comment / Read Comments
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.

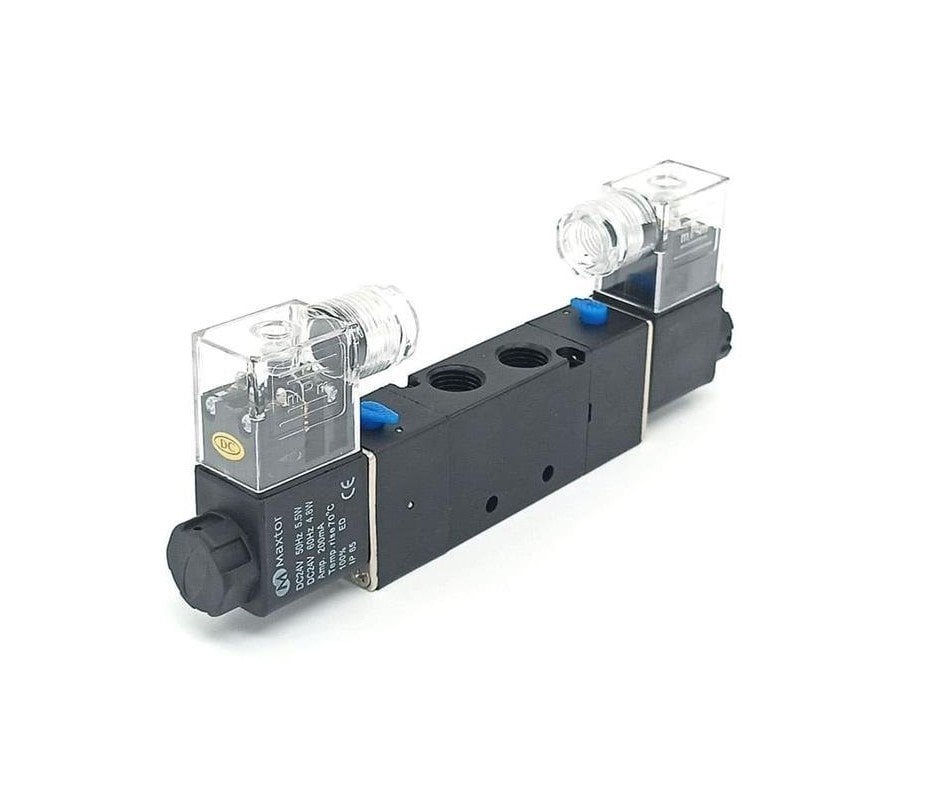

Maxtor Dual Coil Pneumatic Valve 220V 1/8'' 52 (4V120-06-220VAC)
ORFA Industrial Maxtor Double Coil Pneumatic Valve 220V 1/8'', offered with the assurance of Mamüller Sanayi ve Ticaret A.Ş , is one of the indispensable control elements of industrial automation systems. With 4/2 and 5/2 direction control functions, it offers high performance and reliability in pneumatic circuits. Thanks to its compact structure and durable solenoid coils, it saves space and allows long-term trouble-free operation. Code:
V120-06-220VAC
Operating Voltage: V AC
Connection Size: /8'' (BSP)
Number of Coils: Dual coil structure
Working Pressure: .5 ~ 8 bar
Body Material: Aluminum alloy
Response Time: < 0.05 seconds
Sealing Material: @NBR gasket
Cable Entry: Standard socket structure
Working Environment: Clean and dry air
Information: Port Configuration:
ports, 2 positions
Control Type: Electrically controlled dual coil
Temperature Range: -5°C to +60°C
Manual Button: Yes (manual test possibility)
Maximum Frequency: cycles/second
Mounting Type: Base or surface mounting
Insulation Class: F class isolation
Double Coil Pneumatic Valve Usage Areas: Pneumatic automation systems
Machine manufacturing and process control
Packaging and filling systems
Textile machines
Automatic door and piston systems
Robotics applications
Industrial assembly lines
ORFA Maxtor Double Coil Pneumatic Valve 220V 1/8'' offered with the assurance of Endüstri Mamüller Sanayi ve Ticaret A.Ş
(4V120-06-220VAC) is a reliable directional control solution in pneumatic systems with its compact structure, fast response time and high durability. This double-coil valve, operating with 220V AC voltage, provides precise control in automation and machinery applications. The product, which is compatible with many systems with its 1/8'' connection diameter, offers long-lasting use thanks to its NBR sealing gaskets and aluminum body. It is an ideal choice for professionals who want efficient and uninterrupted work in industrial facilities.
ORFA Endüstriyel Mamüller Sanayi ve Ticaret A.Ş güvencesiyle sunulan Maxtor Çift Bobin Pnömatik Valf 220V 1/8'' (4V120-06-220VAC), kompakt yapısı, hızlı tepki süresi ve yüksek dayanıklılığı ile pnömatik sistemlerde güvenilir bir yön kontrol çözümüdür. 220V AC gerilimle çalışan çift bobinli bu valf, otomasyon ve makine uygulamalarında hassas kontrol imkanı sağlar. 1/8’’ bağlantı çapıyla pek çok sistemle uyumlu olan ürün, NBR sızdırmazlık contaları ve alüminyum gövdesi sayesinde uzun ömürlü kullanım sunar. Endüstriyel tesislerde verimli ve kesintisiz çalışma isteyen profesyoneller için ideal bir tercihtir.
| Voltage | : | 220 Volt Ac |
