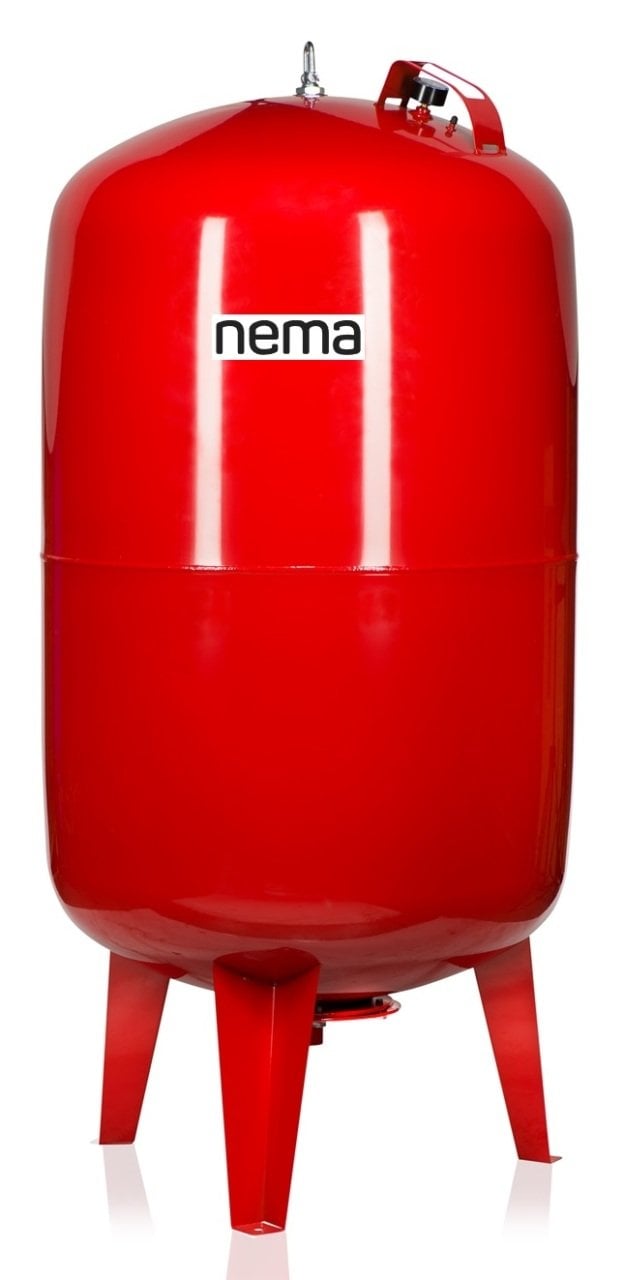

NEMA NEX Expansion Tank Vertical Type 200 LT PN16
%40 Discounted Product
0 - Comment / Read Comments
622,80 EUR
373,68 EUR
Category
Brand
Stock Code
8.00200.116110
Warranty Period
24 Month
Price
519,00 EUR + VAT
* Installments starting from 373,68 EUR!
Add to Cart
NEMA NEX Expansion Tank Vertical Type
ORFA NEMA NEX Expansion Tank Vertical Type 200 LT PN , offered under the assurance of Endüstri Mamüller Sanayi ve Ticaret A.Ş , is designed to safely manage pressure balancing and water volume changes in high capacity systems. It plays a critical role in heating, cooling and solar energy systems as well as pressurized booster systems in modern installations. Thanks to its aesthetic design, durable body structure and long-lasting membrane, it is perfectly suitable for industrial use.
Expansion Tank Working Principle
NEMA NEX Expansion Tank works thanks to a high quality membrane that separates the water and gas chamber inside. As the volume of water in the system changes, pressure changes in the gas chamber allow water to return to the system or be stored. Thus, the system pressure is always kept stable and possible damage caused by expansion is prevented. Using the fill valve at the top of the tank, the pressure in the gas chamber can be easily adjusted to achieve optimum performance. No additional energy source, pump or compressor is required; It is a completely passive and smart solution.
Technical Specifications
Standards: Compliant with 2014/68/EU Pressure Equipment Directive and TS-EN 13831 standards
Membrane: DIN Can be changed in accordance with 4807-3 norms, EPDM or optionally Butyl material
Coating: Electrostatic powder coating
Membrane operating temperature: -10 °C / +70 °C
Instantaneous maximum operating temperature: +110 °C (must be connected to expansion tank return line)
Suitable liquids: Water and water-glycol mixtures (max. 50% glycol, Liquid Group 2 according to Directive 2014/68/EU)
Equipment: Manometer on models of 100 liters and above
Nominal volume: liters
Rated pressure: PN
Dimensions
Diameter Ø (mm): H (mm):
h (mm): C (G ISO 228-1):
1/4" Weight (kg):
. Preliminary gas pressure (bar):
Expansion Tank Usage Areas Heating systems (heaters, hot water boilers)
Refrigeration and air conditioning installations Solar energy systems
Pressure booster systems
Industrial process lines
Water storage and transfer systems
Fire extinguishing and hydrant supply lines
NEMA NEX Expansion Tank Vertical Type 200 LT PN
offers superior performance, long life and maximum reliability in high volume applications.
ORFA This tank, included in the wide product range of Endüstri Mamüller Sanayi ve Ticaret A.Ş
, was developed to provide solutions to the most challenging needs in the sector. It makes a difference in your installations thanks to its strong structure and user-friendly design.
NEMA NEX Genleşme Tankı Dikey Tip 200 LT PN16 , yüksek hacimli uygulamalarda üstün performans, uzun ömür ve maksimum güvenilirlik sunar. ORFA Endüstriyel Mamüller Sanayi ve Ticaret A.Ş ’nin geniş ürün yelpazesinde yer alan bu tank, sektördeki en zorlu ihtiyaçlara çözüm üretmek için geliştirilmiştir. Güçlü yapısı ve kullanıcı dostu tasarımı sayesinde tesisatlarınızda fark yaratır.
| Tooth Measurement | : | 1 1/4'' |
| Pressure Class | : | PN 16 |
| Capacity (Liters) | : | 200 LT |
