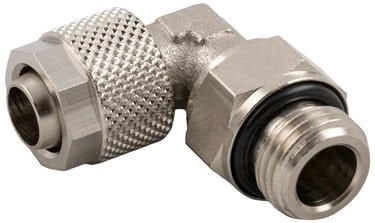

AIGNEP 1115 Sıkmalı Döner Dirsek 1/4'' 10 mm

AIGNEP 1115 Swivel Elbow with Clamping: Reliable and Flexible Connection in Pneumatic Systems

Aignep 1115 series compression swivel elbows offer an ideal solution for changing the direction of compressed air flow and ensuring hose connections in pneumatic automation systems. These fittings allow for a 90-degree change in direction and, thanks to their swivel design, offer ease and flexibility of installation. The term "compression" refers to the fact that they are firmly connected to the hose using a special nut mechanism, minimizing the risk of leaks.

What is the Aignep 1115 Swivel Elbow and What Does It Do?

The Aignep 1115 is a 90-degree elbow with a compression fitting for pneumatic hoses at one end and a 1/4" threaded connection at the other. The "swivel" feature allows the main body of the elbow to rotate 360 degrees. This allows for easy orientation of the hose and prevents kinks or tension in the hose.

Main Functions:

• Air Flow Direction Change: Provides reliable and leak-proof direction changes at 90-degree angles in pneumatic hose lines.

• Easy Installation: Thanks to its nut-tightening structure and rotating body, it allows easy connection and positioning of hoses, even in tight spaces. It allows installation without dismantling the pipeline.

• Hose Connection: Connects 10 mm diameter hoses to pneumatic valves, cylinders or other equipment with a 1/4'' threaded connection.

• Reliable Sealing: The clamping mechanism ensures that the hose fits tightly into the fitting, preventing air leakage.

Features and Advantages of Aignep 1115 Swivel Elbow:

• Working Pressure: It operates over a wide operating pressure range, typically between 0.1 - 1.0 MPa (1-10 bar) .

• Material: High quality nickel-plated brass . This offers high mechanical strength and corrosion resistance.

• Operating Temperature: Generally, it works without any problems between -5°C and +60°C .

• Negative Pressure: Can also be used in vacuum lines (-750 mmHg).

• Suitable Hoses: Compatible with pneumatic hose materials such as Polyurethane, Polyamide and Teflon.

• Wide Application Area: Used in many industrial fields such as automation systems, packaging machines, automobile production and textile machines.
