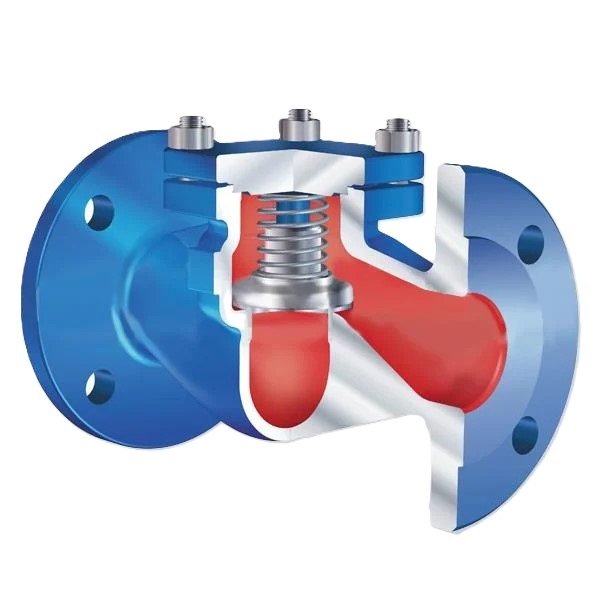

ARI CHECKO-V 12.003 Lift Check Valve PN16 DN20
0 - Comment / Read Comments
Category
Brand
Stock Code
708A020100202
Warranty Period
24 Month
ARI CHECKO-V 12.003 Lift Check Valve PN16 DN
ARI CHECKO-V 12.003 Lift Type Check Valve is a valve type that allows safe unidirectional flow in pipelines and is used safely in industrial facilities with its durable structure. ORFA Industrial Products Industry and Trade Inc. . This Lift Check Valve, offered for sale by, stands out with its compact structure, high pressure resistance and long-lasting material quality.
Lift Check Valve Working Principle
Lift type check valves work with a flap system that opens in the direction of flow and closes automatically when there is reverse flow. Thanks to the pressure in the flow line, the spring flap is lifted up and the flow is released. In case of backflow, the valve closes instantly with the spring support, preventing the flow from proceeding in the opposite direction. This mechanism plays a critical role in system security and equipment protection.
Specification
Body & Cover: EN-JL1040 Cast Iron
Clapper: .4021+QT (AISI 420) Stainless Steel
Spring: .4310 (AISI302) Stainless Steel
Connection Type: Flanged
Nominal Diameter: DN
Pressure Class: PN
Maximum Operating Temperature: °C
Lift Check Valve Usage Areas
Heating and cooling systems
Steam and condensate lines
Water and compressed air installations
Chemistry and petrochemical processes
Industrial production facilities
Power plants and boiler systems
ARI CHECKO-V 12.003 Lift Type Check Valve is a preferred solution in industrial facilities with its safe flow control, high temperature and pressure resistance. ORFA This Lift Check Valve, offered with the assurance of Endüstri Mamüller Sanayi ve Ticaret A.Ş. , provides trouble-free use for many years by increasing process safety and efficiency.
| Diameter-Dn | : | DN 20 |
| Body | : | Iron Casting |
| Pressure Class | : | PN 16 |
