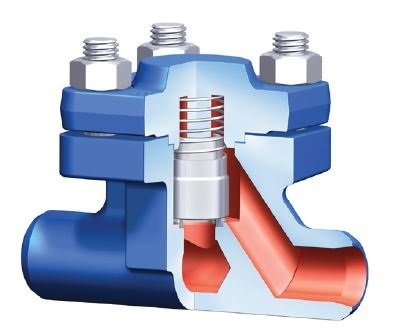

ARI-CHECKO®-V MP 88.030-81 DN32 PN63-160 Welded Neck Lift Check Valve
0 - Comment / Read Comments
Category
Brand
Stock Code
708A020101904
Warranty Period
24 Month
ARI CHECKO-V 48.030-40 Medium Pressure Class Check Valve PN63/100/160 DN
ARI CHECKO-V 48.030-40 is a high quality check valve designed to provide safe flow control under high temperature and pressure and to prevent backflow in industrial facilities. ORFA This valve, offered for sale by Endüstri Mamüller Sanayi ve Ticaret A.Ş. , offers maximum reliability in harsh process conditions with its robust structure and long-lasting material quality.
Check Valve Working Principle
The check valve allows flow to proceed in one direction only. When the flow direction in the line changes, the valve automatically closes and prevents reverse flow. Thanks to this mechanism, back pressure in the system is prevented and facility equipment is protected. ARI CHECKO-V model provides safe closing even at high temperatures thanks to its Stellite alloy flap and spring system.
Specification
Body and Cover: .7335 High Temperature Steel
Internal Parts: Stainless Steel
Connection: Butt Weld Neck
Maximum Operating Temperature: °C
Pressure Class: PN63 / PN100 / PN
Sit Ring: Stellite
Clapper: .7335 / Stellite
Spring : 1.4
Nominal Diameter: DN
Check Valve Usage Areas
Power plants (steam and hot water circuits)
Refineries and petrochemical plants
Heating systems and heat exchanger circuits
Process lines operating at high temperatures
Industrial steam lines
ARI CHECKO-V 48.030-40 PN63/100/160 DN32 check valve offers a safe, efficient and long-lasting solution for critical industrial applications with high pressure and temperature resistance. ORFA This valve, included in the wide product range of Endüstri Mamüller Sanayi ve Ticaret A.Ş ., is the ideal choice for reliable flow control in industrial facilities.
