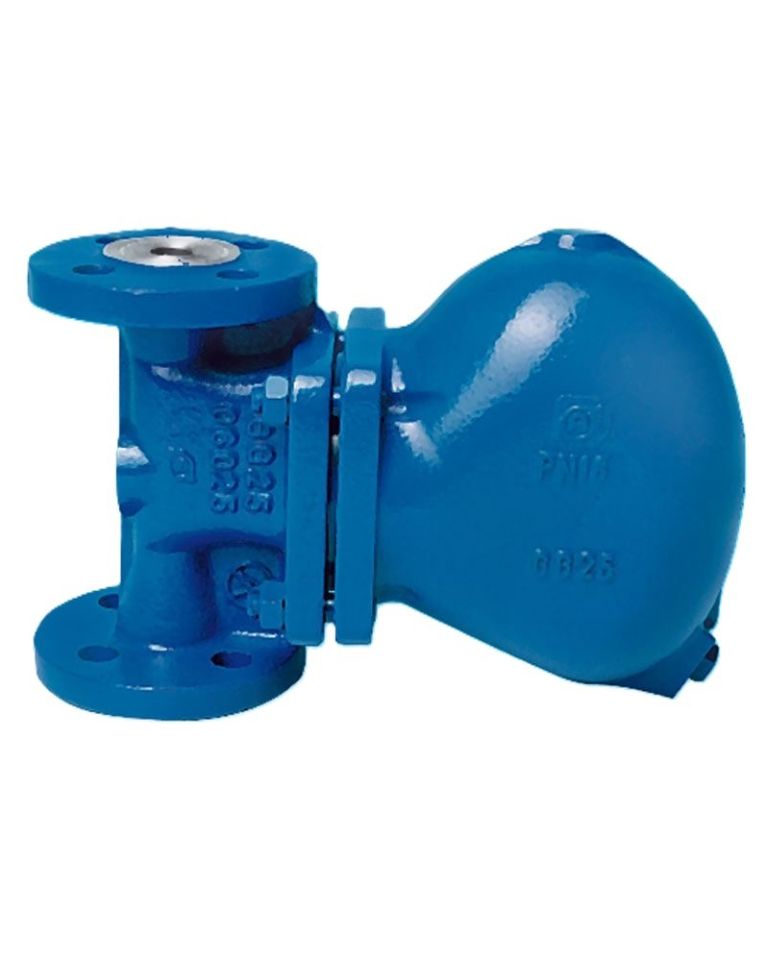

ARI CONA-S 12.631-1 is a float type steam trap model that offers a reliable solution in steam lines and condensate discharge. Thanks to its flanged connection and high-quality material structure, it provides long-lasting, safe and high-efficiency operation in industrial applications. ORFA This product, offered for sale by Endüstri Mamüller Sanayi ve Ticaret A.Ş. , increases energy efficiency and maximizes process safety.

Float Steam Trap Working Principle

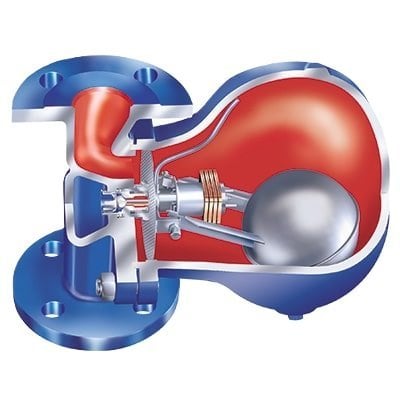

Float steam trap ensures automatic removal of condensate from the steam line. The float inside rises and falls depending on the condensate level and turns the drain mechanism on and off. Thus, only condensate is discharged without any loss of steam in the system. While the built-in check valve function prevents reverse flow, the integrated strainer contributes to the smooth operation of the system.

Specification

Body and Cover: EN-JL1040 Cast Iron

Internal Parts: .4301 (AISI304) Stainless Steel / TB10-85 (corrosion resistant bi-metal)

Strainer: .4301 (AISI304) Stainless Steel

Connection: Flanged

Nominal Diameter: DN

Pressure Class: PN

Max. Operating Temperature: °C (9.6 bar@g), 200 °C (12.8 barg)

Controller Options: R2, R4, R8, R

Mounting Position: Standard vertical, optional horizontal

Additional Functions: Internal check valve, internal strainer, flow diverter

Usage Areas of Float Trap

Steam distribution systems

Heat exchangers

Industrial drying systems

Textile, food, chemical and energy facilities

HVAC and heating lines

With its high quality stainless steel internal parts, integrated strainer and flow diverter features, ARI CONA-S 12.631-1 offers a long-lasting, safe and energy efficient solution. ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş., offers its customers a modern provides superior performance steam trap solutions suitable for industrial needs.

Body Material	:	Casting
Pressure Class (PN)	:	PN 16
Nominal Diameter (DN)	:	DN 25
