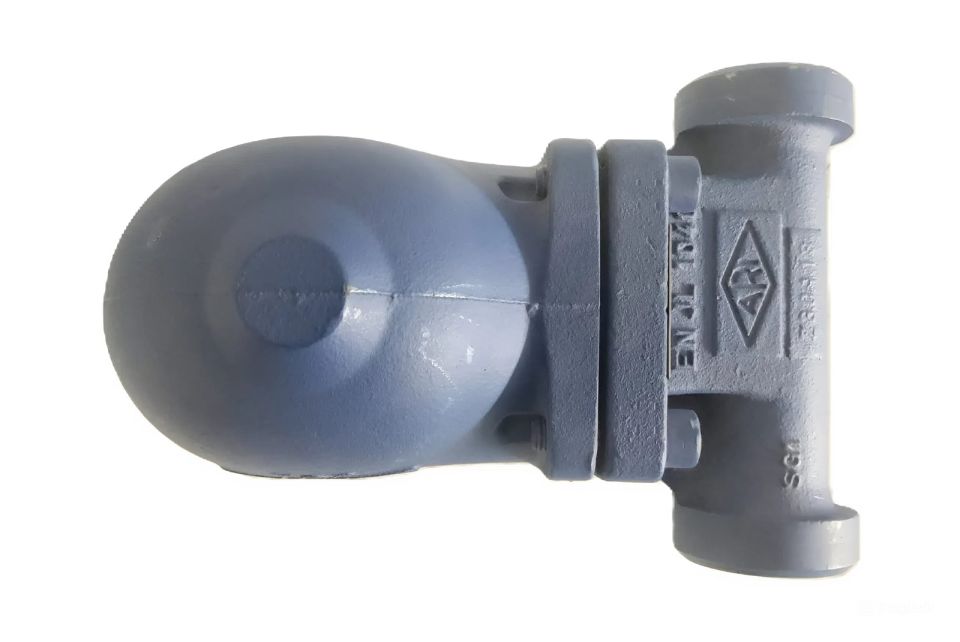

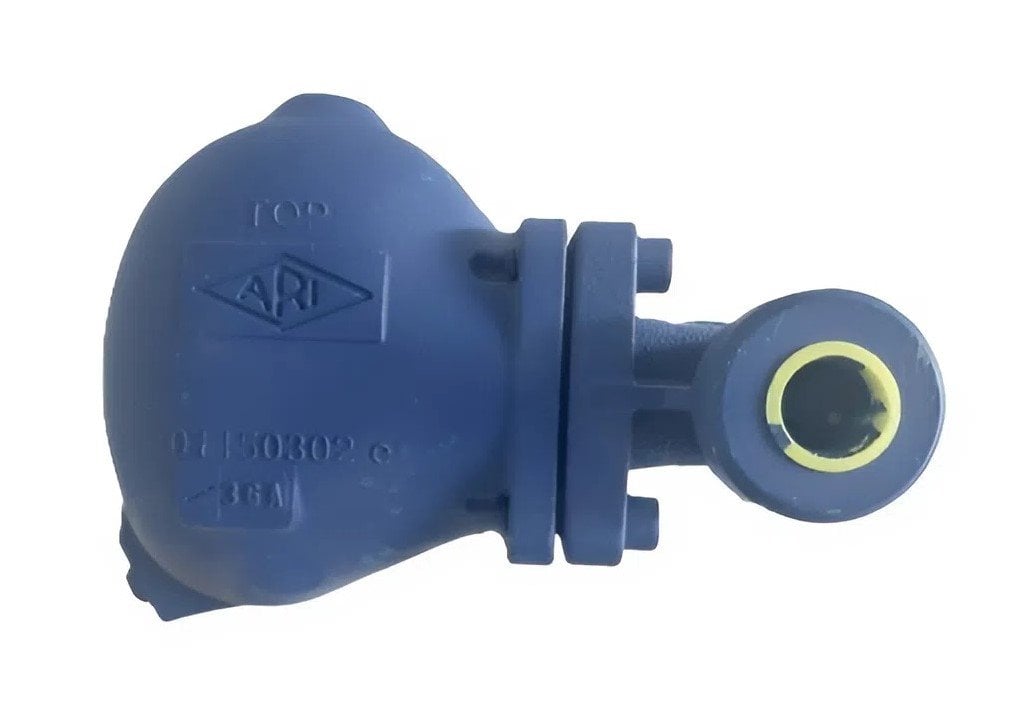

ARI CONA-S 12.631-2 Float Trap Thread PN16 1 1/2''
%19 Discounted Product
0 - Comment / Read Comments
2.074,80 EUR
1.680,59 EUR
Category
Brand
Stock Code
708A120500405
Warranty Period
24 Month
Price
1.729,00 EUR + VAT
* Installments starting from 317,52 EUR!
Add to Cart
ARI CONA-S 12.631-2 Float Trap Gear PN16 1 1/2"
ARI CONA-S 12.631-2 Float Steam Trap is a high quality product that provides safe, efficient and automatic discharge of condensate and gases formed in steam systems. It offers long-lasting use thanks to its compact and durable structure. ORFA This Float Steam Trap model, sold by Endüstri Mamüller Sanayi ve Ticaret A.Ş , is designed to suit the needs of different industrial facilities with its threaded connection feature and robust body structure.

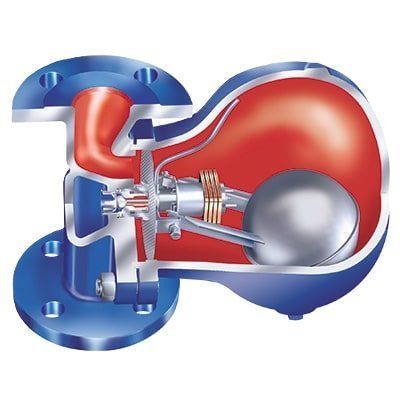

Float Steam Trap Working Principle
The steam trap, which works on the float principle, sensitively detects level changes in the condensate. Condensate coming to the steam line lifts the float inside the body. Thanks to the drain mechanism opened by the float movement, condensate and air are safely discharged. When the steam passes, the float lowers, the valve closes and the discharge of the steam is prevented. In this way, the energy efficiency of the system is maintained and process safety is increased.
Technical Specifications
Body and Cover: EN-JL1040 Cast Iron
Internal Parts: .4301 (AISI304) Stainless Steel / TB10-85 (corrosion resistant bi-metal)
Strainer: .4301 (AISI304) Stainless Steel
Link: Gear
Nominal Diameter : 1 1/2"
Pressure Class: PN
Maximum Operating Temperature: °C (9.6 barg), 200 °C (12.8 bar@g)
Controller Options: R2, R4, R8, R
Mounting Position: Standard vertical, optional horizontal
Additional Functions: Internal check valve, internal strainer, flow diverter
Usage Areas of Float Trap
Condensate discharge in steam lines,
Maintaining energy efficiency in heat exchangers,
Safe use of steam in petrochemical plants,
Drying and steam systems in textile factories,
Hygienic steam applications in food production facilities,
Process steam management in the paper and packaging industry,
Widely used for turbine and boiler safety in power plants.
ARI CONA-S 12.631-2 Float Steam Trap is a long-lasting solution in industrial steam systems with its high quality and reliable performance. With its built-in check valve and strainer feature, it minimizes the need for maintenance and increases energy efficiency. ORFA This product, which you can obtain with the assurance of Endüstri Mamüller Sanayi ve Ticaret A.Ş , provides safe and efficient steam management in your facilities.
| Tooth Measurement | : | 1 1/2'' |
| Body | : | Iron Casting |
| Pressure Class | : | PN 16 |
