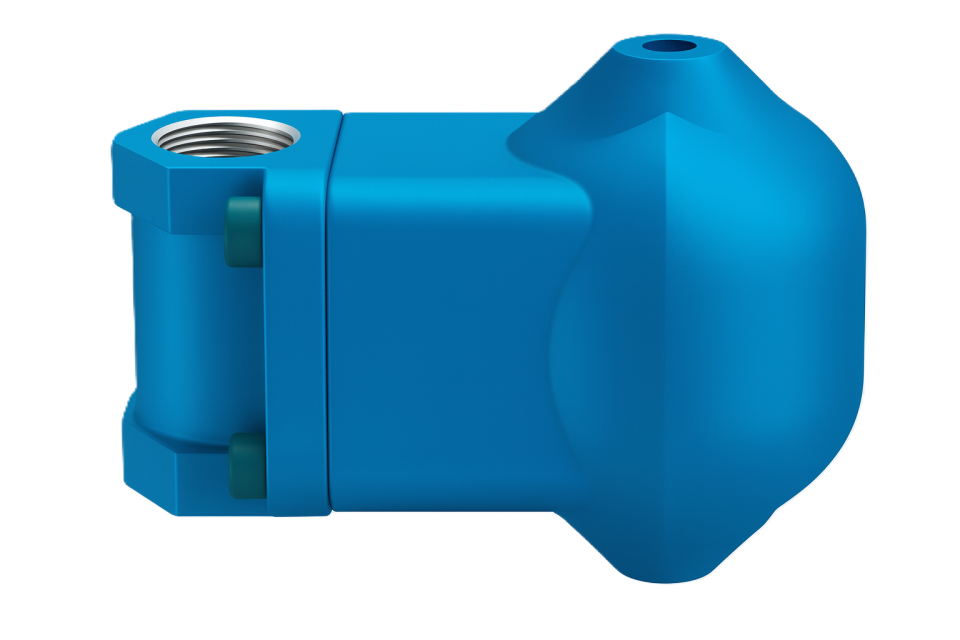

ARI CONA S 25.631-2 Şamandıralı Kondenstop Dişli PN40 3/4''
ARI CONA S 25.631-2 Float Trap Thread PN40 3/4"
ARI CONA S 25.631-2 Float Trap Threaded PN40 3/4" is a product with high pressure and temperature resistance that provides reliable discharge in industrial steam and condensate lines. It offers long-lasting use with its ductile iron body and cover structure, stainless steel internal parts and internal strainer. ORFA Industrial Products Industry and Trade Inc. . This product, offered for sale by , is preferred for its energy efficiency and system security.

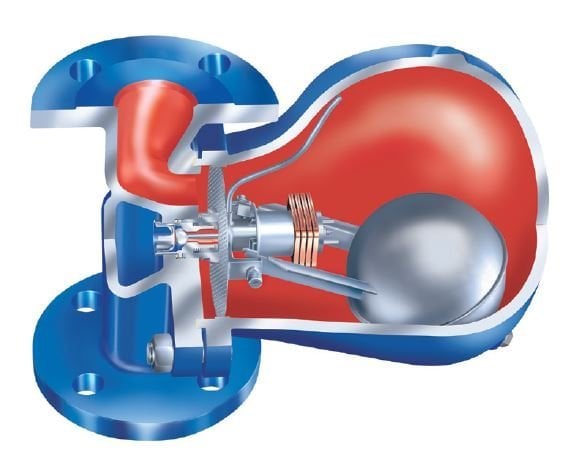

Float Steam Trap Working Principle
The float trap has a mechanical system that works depending on the condensate level. When condensate forms, the float rises and opens the discharge mechanism, and when steam arrives, it closes to prevent steam loss. The integrated strainer filters particles in the line, while the check valve function prevents backflow. In addition, thanks to the flow diverter, the condensate in the system is directed, increasing the safety and efficiency of the enterprise.
Specification
Body and Cover: EN-JS1049 Ductile Iron
Inner Parts: .4301 (AISI304) Stainless Steel / TB10-85 (corrosion resistant bi-metal)
Strainer: .4301 (AISI304) Stainless Steel
Link: Gear
Nominal Size: /4"
Pressure Class: PN
Maximum Operating Temperature: °C (22 barg), 250 °C (32 bar@g)
Controller: R2, R4, R8, R13, R22, R
Additional Functions: Internal check valve, internal strainer, flow diverter
Mounting Position: Standard vertical, optional horizontal
Usage Areas of Float Trap
Steam boilers and condensate lines
Textile industry process lines
Power plants
Petrochemical and refinery facilities
Paper and food production lines
HVAC and industrial heating systems
ARI CONA S 25.631-2 Float Trap Gear PN40 3/4" offers long-lasting and efficient use with its durable structure, stainless steel internal parts and internal security functions. ORFA Industrial Products Industry and Trade Inc. With assurance, it increases the energy savings of your business and ensures system security at the highest level.
| Body Material | : | Ductile Iron |
| Pressure Class (PN) | : | PN 40 |
| Thread Size | : | 3/4'' |
