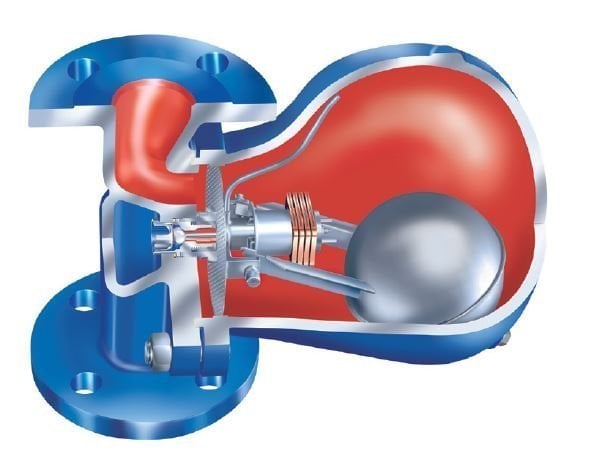

ARI CONA S 45.631-1 Float Trap with Flange PN40 DN40
0 - Comment / Read Comments
ARI CONA S 45.631-1 Float Trap Flanged PN40 DN
ORFA ARI CONA S 45.631-1 Float Steam Trap, offered for sale by Endüstri Mamüller Sanayi ve Ticaret A.Ş. , is a high-performance product developed to provide reliable and efficient condensate discharge in industrial steam systems. It offers long-lasting use with its flange connection, solid body structure and stainless steel internal parts.
Float Steam Trap Working Principle
The float trap changes the position of the float according to the amount of condensate formed in the system. When the condensate increases, the float rises and opens the discharge line, and when steam comes, it closes and prevents leakage. In this way, energy losses are prevented and the equipment is protected. It provides extra safety and ease of maintenance thanks to its built-in check valve function and integrated strainer.
Specification
Body and Cover: EN-JS1049 Ductile Iron
Inner Parts: .4301 (AISI304) Stainless Steel / TB10-85 (corrosion resistant bi-metal)
Strainer: .4301 (AISI304) Stainless Steel
Connection Type: Flanged
Nominal Diameter: DN
Pressure Class: PN
Max. Operating Temperature: °C (22 barg), 250 °C (32 barg)
Controller Options: R2, R4, R8, R13, R22, R
Mounting Position: Standard vertical, optional horizontal
Additional Functions: Internal check valve, internal strainer, flow diverter
Usage Areas of Float Trap
Power Plants: Condensate evacuation in steam boilers and turbine systems
Petrochemical and Chemical Industry: High pressure and temperature process lines
Textile Industry: Steam drying and heating systems
Food and Beverage Production: Hygienic steam applications
Heating Systems: Industrial steam circuits and heat exchangers
Paper Industry: Lines requiring continuous and reliable condensate control
ARI CONA S 45.631-1 PN40 DN40 Float Trap offers maximum efficiency in industrial facilities with its high temperature and pressure resistant structure, ease of maintenance and integrated security functions. ORFA This product, which you can obtain with industrial assurance, is the ideal solution for energy saving and system security.
