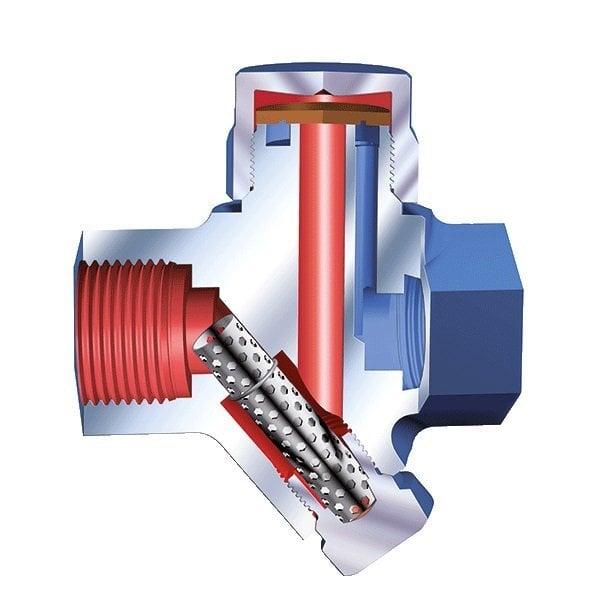

ARI CONA TD 45.641-2 R32 Thermodynamic Steam Trap (1" - PN40)

Forged Steel Body | With Outside Strainer (Fig. 641) | ORFA Industrial Assurance

The ARI CONA TD 45.641-2 R32 thermodynamic steam trap is an industrial solution ensuring the continuous discharge of condensate. As a high-performance thermodynamic steam trap, it offers exceptional longevity thanks to its robust forged steel body. Every thermodynamic steam trap offered by ORFA Industrial increases system efficiency by preventing energy loss. With its water-hammer resistant structure, this thermodynamic steam trap is indispensable for industrial processes. Choosing the right thermodynamic steam trap is critical for safety, making this specific thermodynamic steam trap the ultimate choice.

Technical Specifications and Materials

Product Type: High-performance thermodynamic steam trap
Body and Cap: 1.0460 Forged Steel
Controller Unit: 1.4122 (+QT) Stainless Steel
Strainer and Plug: 1.4301 / 1.4541 Stainless Steel
Connection Type and Size: Screwed Sockets (Rp/NPT) - 1" (DN25)
Pressure Class: PN40 capacity thermodynamic steam trap
Allowable Differential Pressure (ΔPMX): 32 bar (R32 Controller)
Max. Allowable Temperature (TMA): 450 °C at 13.1 bar pressure
Max. Allowable Pressure (PMA): 40 bar (from -10 to 20 °C)

Application Areas

Reliable thermodynamic steam trap applications in steam distribution lines.
Ideal thermodynamic steam trap usage for condensate discharge points.
Heat exchangers, steam boilers, and high-pressure installations.

Body Material	:	Cast Steel
Pressure Class (PN)	:	PN 40
Thread Size	:	1''
