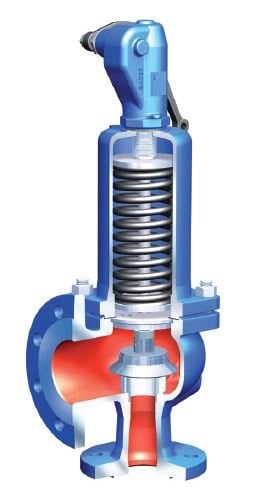

ARI® SAFE 12.901 Full Lift Safety Valve is a high quality safety equipment designed to ensure pressure safety in industrial facilities. ORFA This product, which is offered with the assurance of Endüstri Mamüller Sanayi ve Ticaret A.Ş. , comes into play in extreme pressure situations, preventing damage to system equipment and creating a safe working environment.

Working Principle

The safety valve opens automatically with the help of a spring mechanism when the pressure in the facility line exceeds the determined set value. Thus, excess pressure is relieved in a controlled manner. When the pressure drops to normal level, the valve closes automatically. Thanks to this principle, the safety of both equipment and personnel is protected at the maximum level.

Specification

Body and Cover: EN-JL1040 Cast Iron

Inner Parts: .4021+QT (AISI 420) Stainless Steel

Sit: .4571 (AISI316Ti) Stainless Steel

Disc: .4122 (AISI420) Stainless Steel

Spring: FDSiCr / 51CrV4, 1.8

Connection: Flanged

Nominal Diameter: DN65/

Pressure Class: PN

Maximum Operating Temperature: °C

Areas of Use

Steam boilers and pressure vessels

Heating and cooling installations

Chemical, petrochemical and refinery processes

Water, steam and gas lines

Industrial power plants

Food and beverage production facilities

HVAC systems

ARI® SAFE 12.901 Full Lift Safety Valve offers a long-lasting solution in critical industrial applications thanks to its reliable structure and high temperature and pressure resistant materials. ORFA This safety valve, included in the wide product range of Endüstri Mamüller Sanayi ve Ticaret A.Ş. ., protects your systems by providing safety and efficiency together.

Body Material	:	Casting
Pressure Class (PN)	:	PN 16
Nominal Diameter (DN)	:	DN 65
