ARI® SAFE 25.902 Full Lift Safety Valve PN40 DN20/32
0 - Comment / Read Comments
Category
Brand
Stock Code
708A110100602
Warranty Period
24 Month
ARI® SAFE 25.902 Full Lift Safety Valve PN40 DN20/

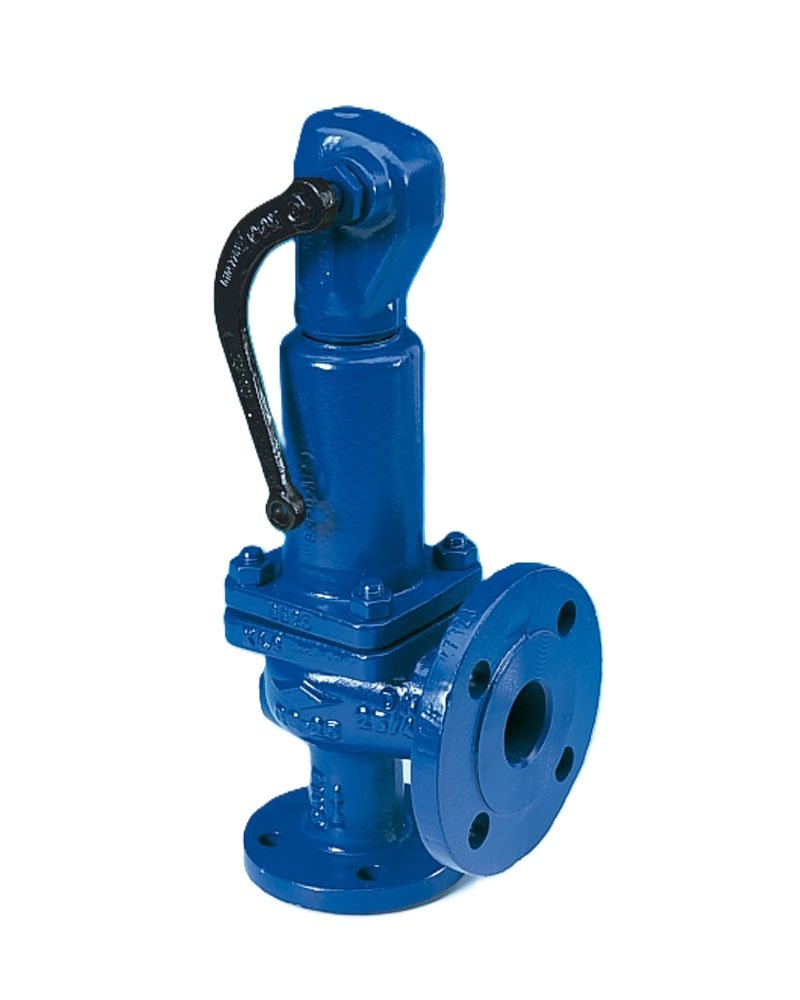

ARI® SAFE 25.902 full lift safety valve is a high quality protection element designed to ensure safety and pressure control in industrial systems. It is automatically activated in case of sudden pressure increases, guaranteeing the safety of the system in lines operating under pressure. ORFA This valve, which is included in the wide product range of Industrial , stands out with its durable material structure and high engineering standards.
Safety Valve Working Principle

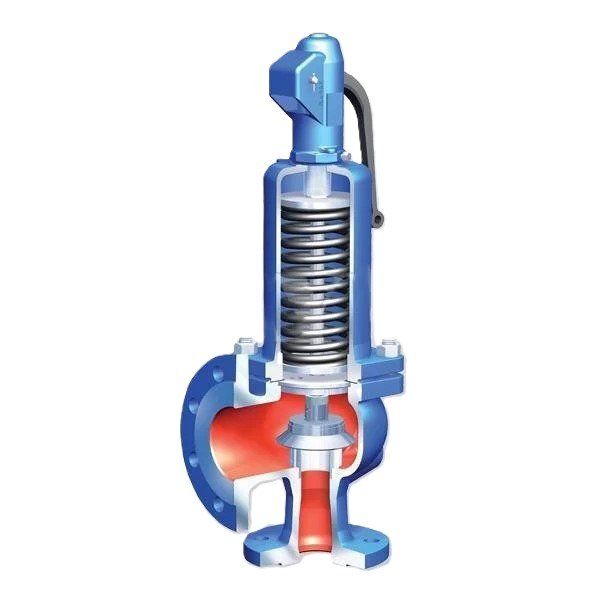

The safety valve allows the disc to open by overcoming the spring force when the pressure in the system exceeds the set value. In this way, it is possible to protect equipment and pipelines by relieving excess pressure. When the pressure returns to normal, the disk closes again thanks to the spring and the system continues to operate safely.
Specification
Body and Cover: EN-JS1049 Ductile Iron
Inner Parts: .4021+QT (AISI 420) Stainless Steel
Sit: .4571 (AISI316Ti) Stainless Steel
Disc: .4122 (AISI420) Stainless Steel
Spring: FDSiCr/51CrV4, 1.8
Connection Type: Flanged
Nominal Diameter: DN20/
Max. Operating Temperature: °C
Pressure Class: PN
Safety Valve Usage Areas
Pressure control in steam, gas and liquid lines
Power plants and boiler rooms
Petrochemical and refinery facilities
Food and beverage industry
Chemistry process lines
Water purification and heating-cooling systems
ARI® SAFE 25.902 full lift safety valve is used safely in all processes where safety is a priority in industrial facilities, thanks to its high pressure resistant structure and reliable operating principle. ORFA This product, offered with the assurance of Endüstri Mamüller Sanayi ve Ticaret A.Ş. , provides maximum security to businesses with its long-lasting performance and quality standards.
| Body | : | Ductile Iron |
| Pressure Class | : | PN 40 |
