ARI-STEVI 12.440 Pozisyonerli Pnömatik Oransal Kontrol Vanası DN65 PN16
Brand
Stock Code
708A030201007_POS
Warranty Period
24 Month
Price
8.232,21 USD + VAT
%55
3.704,49 USD
8.232,21 USD
Installments starting from 384,62 USD!

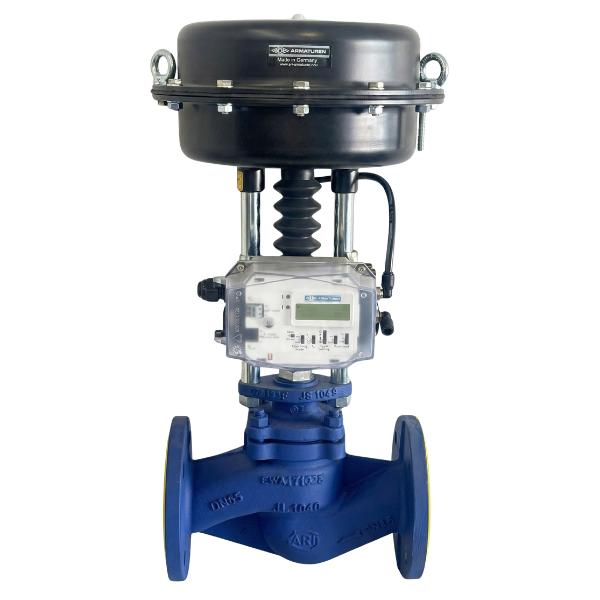

ARI-STEVI 12.440 Pneumatic Proportional Control Valve with Positioner
DN65 | PN16 | Integrated STEVI-POS Positioner | Kvs 40 - 63
The ARI-STEVI 12.440 DN65 Pneumatic Proportional Control Valve is designed to modulate fluid flow and pressure with millimeter precision in high-capacity industrial processes. With a Kvs of up to 63 m³/h, this pneumatic proportional control valve offers flawless control via a 4-20 mA signal thanks to the integrated STEVI-POS electropneumatic positioner. Utilizing non-contact magnetic sensing technology, the pneumatic proportional control valve with AISI 420 stainless steel internals delivers high operational efficiency under the most demanding heavy-duty conditions. With a temperature resistance of up to 300 °C, this pneumatic proportional control valve ensures long-lasting, wear-free service in your piping system. Our professional pneumatic proportional control valve solutions are the ideal choice for energy efficiency and precision automation.
VALVE TECHNICAL SPECIFICATIONS
Product Type: ARI-STEVI 12.440 Pneumatic Proportional Control Valve
Nominal Diameter & Pressure: DN65 PN16 Pneumatic Proportional Control Valve
Body Material: EN-JL1040 Cast Iron Pneumatic Proportional Control Valve
Internal Trim Material: AISI 420 Stainless Steel Pneumatic Proportional Control Valve
Sealing: PTFE V-Ring Pneumatic Proportional Control Valve
Actuator Assembly: ARI-DP 33 Pneumatic Proportional Control Valve Unit
STEVI-POS POSITIONER DATA
Control Signal: 4-20 mA Pneumatic Proportional Control Valve Input
Sensing Type: Non-Contact Magnetic Pneumatic Proportional Control Valve Sensor
Protection Class: IP66 Rated Pneumatic Proportional Control Valve
Linearity: ±1.5% F.S. Accuracy Pneumatic Proportional Control Valve
APPLICATIONS
- Steam and turbine pneumatic proportional control valve processes in power plants.
- High-capacity pneumatic proportional control valve usage in petrochemical plants.
- Precision pneumatic proportional control valve lines in food and pharmaceutical industries.
- Pneumatic proportional control valve automation in HVAC and paper industry.
KEY ADVANTAGES
- Stable pneumatic proportional control valve performance under 8 bar differential pressure.
- Wear-free long service life with Hall sensor pneumatic proportional control valve assembly.
- Pneumatic proportional control valve design minimizing leakage with tight shut-off.
- Easily monitored pneumatic proportional control valve parameters via LCD interface.
TECHNICAL DOCUMENTS AND CATALOGS
You can download the file for a detailed product catalog.
| Body Material | : | Casting |
| Pressure Class (PN) | : | PN 16 |
| Nominal Diameter (DN) | : | DN 65 |
