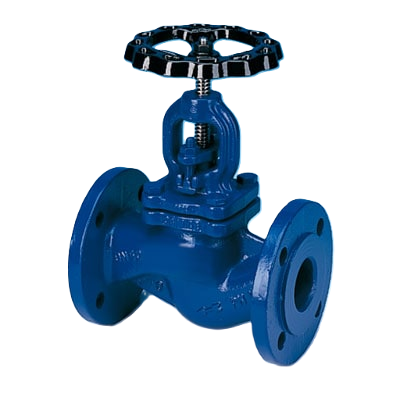

ARI-STOBU® 55.006 Globe Valve DN125 PN40

ARI-STOBU® Globe Valve DN125 PN40: Reliable Flow Control in High Pressure Installations

ARI-Armaturen is a globally recognized brand of industrial valves and armatures, based in Germany. ARI-STOBU® Globe Valve DN125 PN is a high performance valve designed to precisely control, cut off or regulate the flow of fluids (water, steam, gas, oil, etc.) in industrial processes. This model offers reliability and long life, especially in very high pressure systems.

While the size DN125 (Nominal Diameter 125 mm / 5 inç) indicates that the valve is suitable for use in large-scale lines, the pressure class PN40 (40 bar)

indicates that it can operate safely up to a nominal pressure of 40 bar.

ARI-STOBU® What is Globe Valve and How Does It Work?

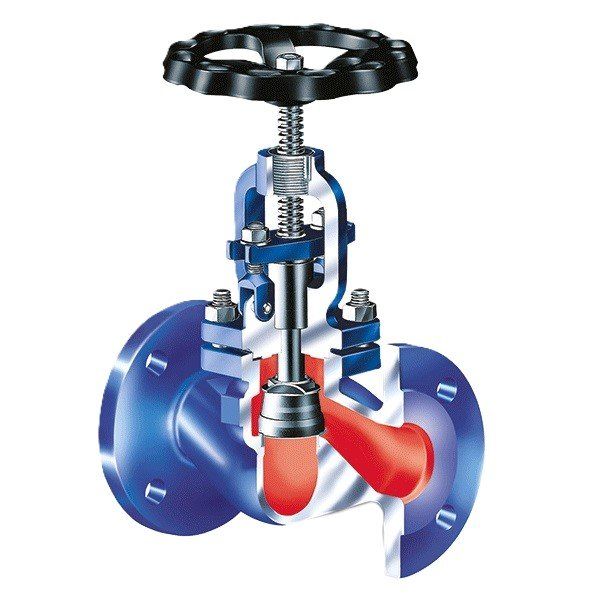

ARI-STOBU® is a shut-off valve with stem seal provided by pure graphite packing. This valve controls the passage of the fluid with a linearly moving disc (clapper). The disc regulates or interrupts the flow by approaching and moving away from the seat on the valve body with the upward or downward movement of the valve shaft. The soft packing shut-off valve operates according to the metallic sealing principle as standard.

• ARI-STOBU® Highlights and Advantages of Globe Valve: Durable Material: Fig. The body and cover of the 55.006 PN model are made of .4408 Stainless Steel , and the valve is made of .4571 Stainless Steel

• . This ensures the valve has superior resistance to harsh industrial conditions. High Pressure Resistance (PN40):

• Being resistant to 40 bar working pressure makes the valve suitable for applications requiring high pressure. Precision Flow Control:

• Marginal seat and flap structure has increased throttling function. In this way, the fluid flow rate can be adjusted very precisely. Reliable Sealing:

• Pure graphite packing maintains tightness even under high temperature (up to 450°C depending on material) and pressure. Wide Application Area:

• ARI-Stobu is a long-lasting and economical shut-off valve. Connection Type:

• Flanged and Butt Weld Neck connection options are available. Standard Features:

It offers many features as standard, such as stainless steel seat, stainless steel shaft, stainless steel valve and excellent zeta value.

ARI-STOBU® Usage Areas of Globe Valve:

• ARI-STOBU® Globe Valves are commonly used in medium to large industrial applications where precise flow control and durability are important:

• Energy production

• Refineries

• Petrochemical facilities

• Chemical industry

• Food facilities
