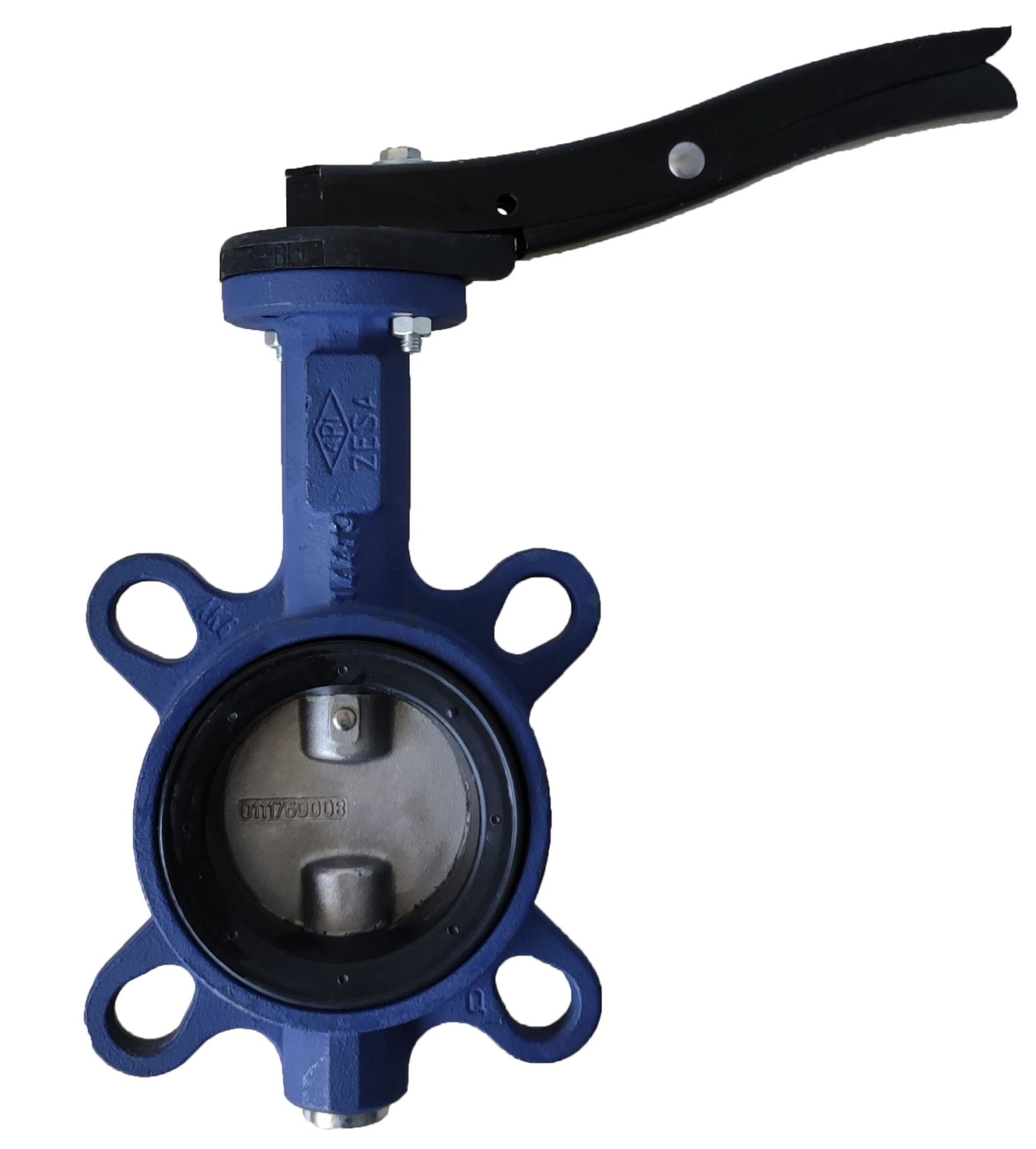

ARI-ZESA® 22.012 Wafer Tip Kelebek Vana DN50 / PN16

ARI-ZESA® 22.012 Wafer Type Butterfly Valve DN50 / PN16: High Performance and Reliable Flow Control

The ARI-ZESA® 22.012 Wafer-Type Butterfly Valve, offered with the assurance of ORFA Industrial Products Industry and Trade Inc., is an indispensable flow control element that offers reliability, performance, and long life in industrial systems. This valve stands out with its compact design, superior sealing performance, and maintenance-free design.

It is a versatile solution for use in medium-sized lines with its DN50 (Nominal Diameter 50 mm / 2 inches) size and PN16 (16 bar) pressure class, providing perfect sealing in both directions and easy integration into automation.

What is ARI-ZESA® 22.012 Wafer Type Butterfly Valve?

The ARI-ZESA® 22.012 operates on the basic principle of a butterfly valve. Its internal disc (clapper) rotates 90 degrees around a vertical shaft, completely opening or closing the flow. Its wafer-type design allows it to be sandwiched between two flanges, saving space.

Technical Specifications:

• Model: Fig. 22.012.
• Connection: DN50.
• Body: EN-JS1030 ductile iron.
• Disc: 1.4581 stainless steel.
• Shaft: Stainless steel.
• Seal: EPDM (DIN DVGW drinking water approved).
• Maximum Operating Temperature: 130°C.
• Pressure Class: PN16.
• Leak Test: DIN EN 12266-1 Leakage Rate A (DIN 3230 T3).
• DVGW Compliance: Complies with VP646 and W270 standards for drinking water.

Key Features and Benefits:

• Provides perfect sealing with soft gasket.
• It has a long-lasting structure that does not require maintenance.
• It offers a fluid-friendly design with excellent zeta-value.
• Different sealing options such as EPDM, NBR, FPM are available.
• Provides high corrosion resistance with stainless steel disc.
• It has safety features such as double shaft sealing and an avalanche point barrier.
• It offers compact, space-saving wafer type installation.
• It is controlled by hand control.
• It offers full insulation according to the German ENEV regulation.

Areas of Use:

• Industrial liquid transfer lines.
• Drinking water systems.
• Heating and cooling systems.
• Fire installations.
• Chemical and petrochemical industries.
• Power plants.
• Food and beverage industry.
